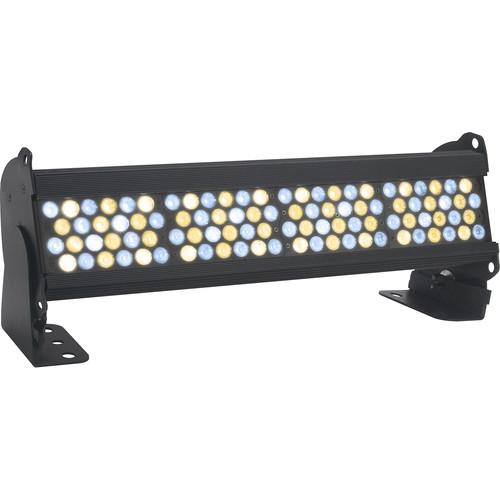

User Manual for Elation Professional DW Chorus 24 CW WW LED Bar Fixture Click to enlarge the picture
Contents of the user manual for the Elation Professional DW Chorus 24 CW
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
|
User manual for the Elation Professional DW Chorus 24 CW contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The DW Chorus 24 from Elation Professional is a 2' LED bar fixture that features long-life cool white and warm white Lumi 3W LEDs and an average LED life expectancy of 100,000 hours. The lighting fixture also features LED group control, variable dimming curve modes, variable white color temperature range of 2,700 to 6,700K, and strobe & chase effects. Supported protocols include Art-Net, Kling-Net, and RDM (remote device management. Connectors include 3-pin and 5-pin XLR inputs and outputs, RJ45 input and output, and powerCON input and output. Other features include an LCD menu display with a 4-button control panel, integrated rigging brackets, rugged die-cast aluminum exterior, flicker-free operation for TV and film, and a multi-voltage universal auto-switching power supply. -
- Art-Net, Kling-Net, and RDM protocol support
- Multiple DMX channel modes
- 4-button control panel and LCD menu display
- Variable dimming curve modes
- Variable white color temperature of 2,700 to 6,700K
- Multiple unit power linking
- Rugged die-cast aluminum exterior
- Flicker-free operation for TV and film
UPC: 837874019131 In the Box Elation Professional DW Chorus 24 CW/WW LED Bar Fixture (2') PowerCON Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional DW Chorus 24 CW WW LED Bar Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional DW Chorus 24 Specs | Light Source | 96 x LEDs (48 x Cool White + 48 x Warm White) | | Life Expectancy | Approximately 100,000 hours | | Color Temperature | 2700 - 6700K | | Illuminance | 9° Full On: 20,570 lux (1,911 FC) @ 3.3' (1 m) | | Beam Angle | 11° | | Protocols | DMX, RDM, Art-Net, Kling-Net | | DMX Connectors | Input: 3-pin and 5-pin XLR
Output: 3-pin and 5-pin XLR | | DMX Channel Modes | 8 x Modes: 1, 2, 3, 4, 5, 8, 9, 11 | | RJ45 Connector | Input: RJ45 (Art-Net and Kling-Net)
Output: RJ45 (Art-Net and Kling-Net) | | Input Voltage | 110 to 250 VAC, 50/60 Hz | | Power Connectors | Input: powerCON
Output: powerCON | | Power Linking | 120 VAC: 8 units maximum
240 VAC: 14 units maximum | | Power Consumption | Maximum 169 W | | Operating Temperature | -15 to 45°C (5 to 113°F) | | Rating | CE, cETLus and IP30 | | Working Position | Any safe position | | Dimensions (L x W x H) | 23.8 x 7.5 x 7.5 (604 x 194.1 x 192.5 mm) | | Weight | 23.0 lb (10.4 kg) |
