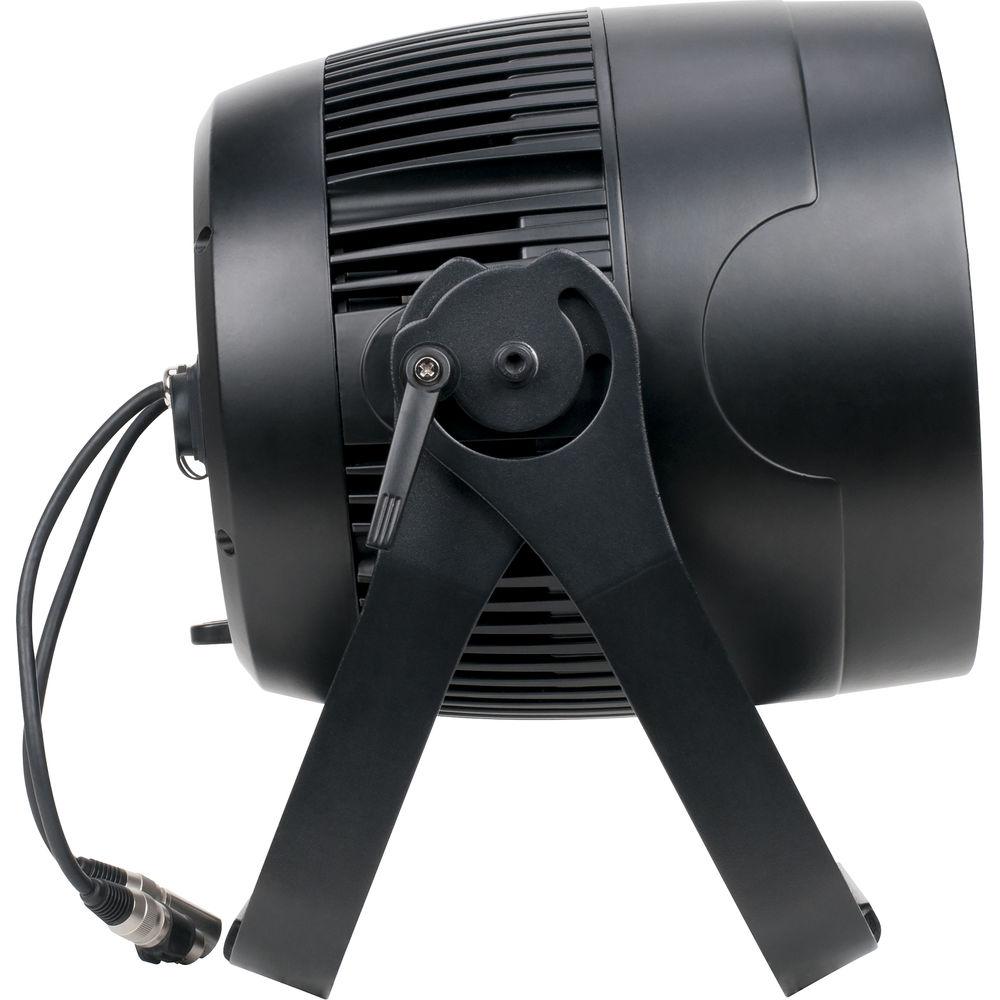

User Manual for Elation Professional DW PAR Z19 IP Fixture Click to enlarge the picture
Contents of the user manual for the Elation Professional DW PAR Z19 IP
- Product category: Stage & Studio Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional Stage & Studio
 |
User manual for the Elation Professional DW PAR Z19 IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

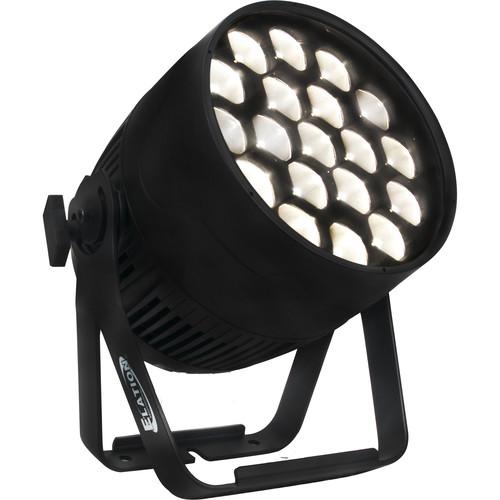

Product description The DW PAR Z19 IP Fixture from Elation Professional is equipped with nineteen 15W, 2-in-1 cool white/warm white LEDs, dynamic white color temperature range control from 2700 to 6000K, and electronic strobe and variable dimming curve modes. For controlling, it supports DMX and RDM (remote device management) protocol, and features an LCD menu display with four-button touch control panel. Integrated dual rigging brackets allow for easy mounting. The fixture also features multiple-unit power linking capability and an integrated universal multi-voltage auto-switching power supply. - 5 to 36° motorized zoom range
- Rugged die-cast aluminum exterior
- powerCON TRUE1 connections
- Flicker-free operation for TV and film applications
- RDM (remote device management)
- Electronic strobe and variable dim curves
- Multiple-unit power linking
UPC: 837874001808 In the Box Elation Professional DW PAR Z19 IP Fixture powerCON TRUE1 Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional DW PAR Z19 IP Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional DW PAR Z19 IP Specs | Lamp | 19 x 15 W 2-in-1 cool white/warm white LEDs | | Lamp Life | 50,000-hour average LED life | | Photometric Data | 44,070 lux 4094 FC at 9.8' / 3 m (5° Full ON - 4700K)
1754 lux 163 FC at 9.8' / 3 m (36° Full ON - 4700K) | | Color | Cool white/warm white | | Zoom | 5 to 36°, motorized | | DMX Connectors | IP-rated 5-pin DMX | | DMX Channels | 6 x DMX channel modes (7 total channels) | | Channel Control | Dynamic White (without Dim-to-Warm) | | Power Connection Type | powerCON TRUE1 power in/out | | Power | 110 to 250 VAC
50/60 Hz | | Power Consumption | 240 W max. | | Rigging Points | Dual | | Color Temperature Control | Dynamic White: 2700 to 6000K | | Controls | 4-button control panel
LCD menu display | | Approvals | CE | | IP Rating | IP65 | | Temperature | 5 to 113°F / -15 to 45°C | | Dimensions | 15.9 x 12 x 15.6" / 36.3 x 30.5 x 39.6 cm | | Weight | 26 lb / 11.8 kg |
