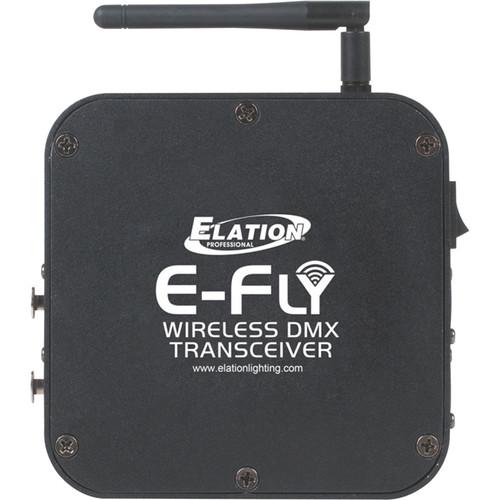

Product description Connected to a DMX Controller, the E-FLY Wireless DMX Transceiver from Elation Professional will provide a dependable wireless signal to other E-FLY products at distances up to 2,500' away. At only 6 x 5.3 x 1.6" the E-FLY wireless can be discretely mounted in tight spaces, and provides up to 25 hours of run time on its rechargeable battery while supporting up to 15 different DMX universes. Four DIP switches control which DMX universe is currently being controlled. An included AC adapter provides an alternative to battery power, while an auto-pairing feature makes addressing simple. The 2.4 GHz wireless frequency enables usage in busy RF environments, such as areas where Wi-Fi and Bluetooth are being used. - Attributes
-
- Wireless DMX Transceiver
- Rechargeable battery life – up to 25 hours

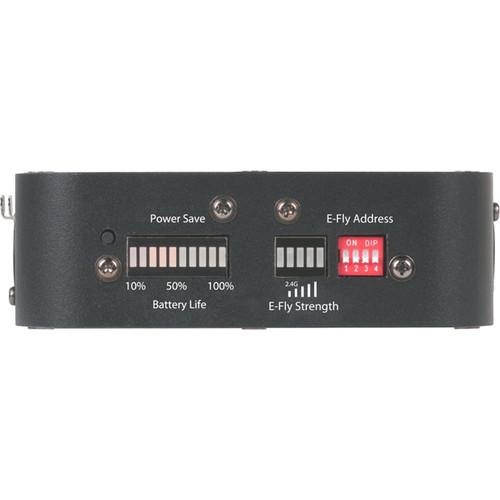

- Battery life and signal strength indicator display
- Wireless range up to 2,500'
- Transmit to multiple receivers on same radio channel
- Supports up to 15 DMX512 universes
- 15 radio channels (1 DMX universe per channel)
- Auto-pairing feature
- 3-pin and 5-pin DMX In/Out
- Wireless frequency: 2.4 GHz ISM

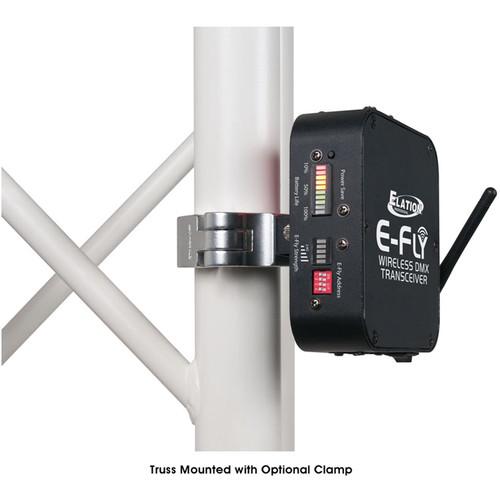

UPC: 837874018714 In the Box Elation Professional E-FLY Wireless DMX Transceiver 12VDC Power Supply Back-Panel Magnet for Easy Metal-Surface Mounting Mini Omega Bracket for Clamp/Truss Mounting (Clamp Not Included) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional E-FLY Wireless DMX Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional E-FLY TRANCEIVER Specs | Battery | Rechargeable battery
Run Time: 20-25 hours
Charge Time: 4 hours (do not charge more than 4 hours)
Voltage/Amperage: 12 VDC, 1 A
Can be powered via included AC adapter or via internal battery | | Controls | 15 x DMX512 universes
15 x radio channels (1 DMX universe per channel)
4 x DIP switches (controls current universe selection)
1 x power save button (turns display off when inactive)

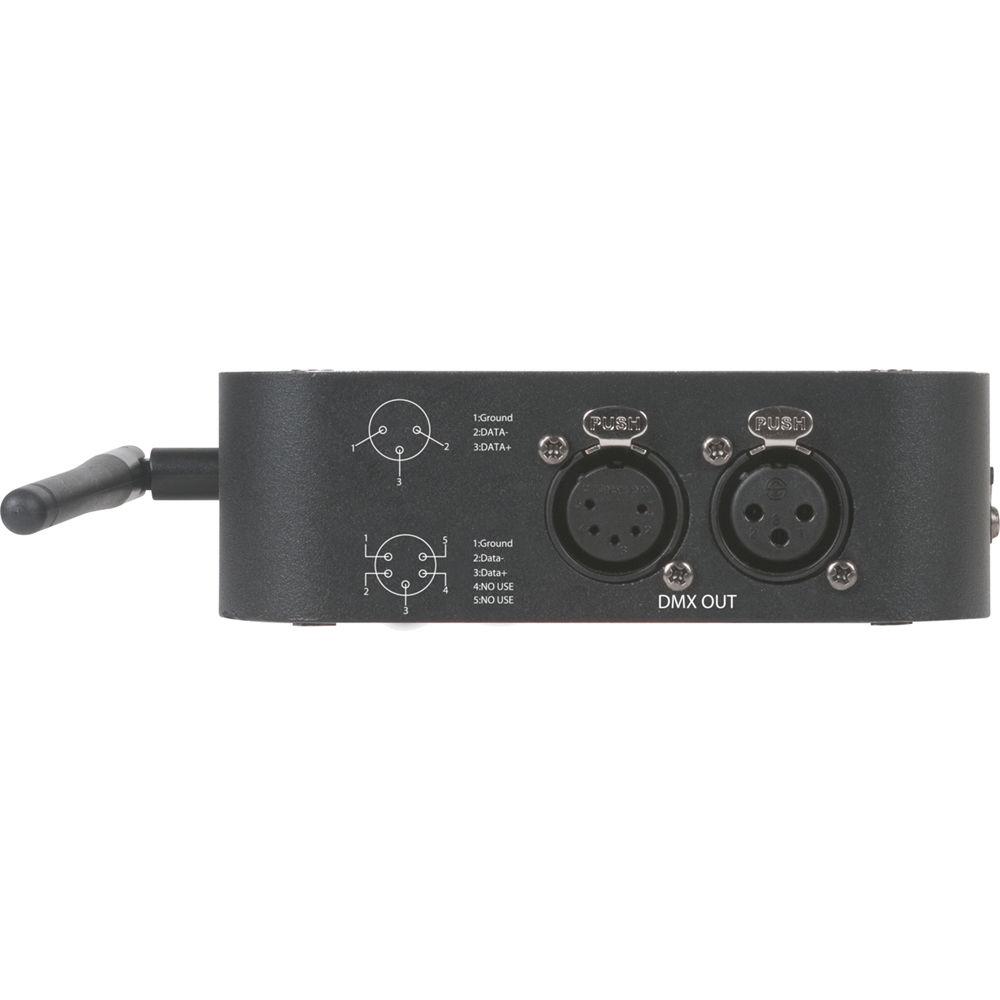

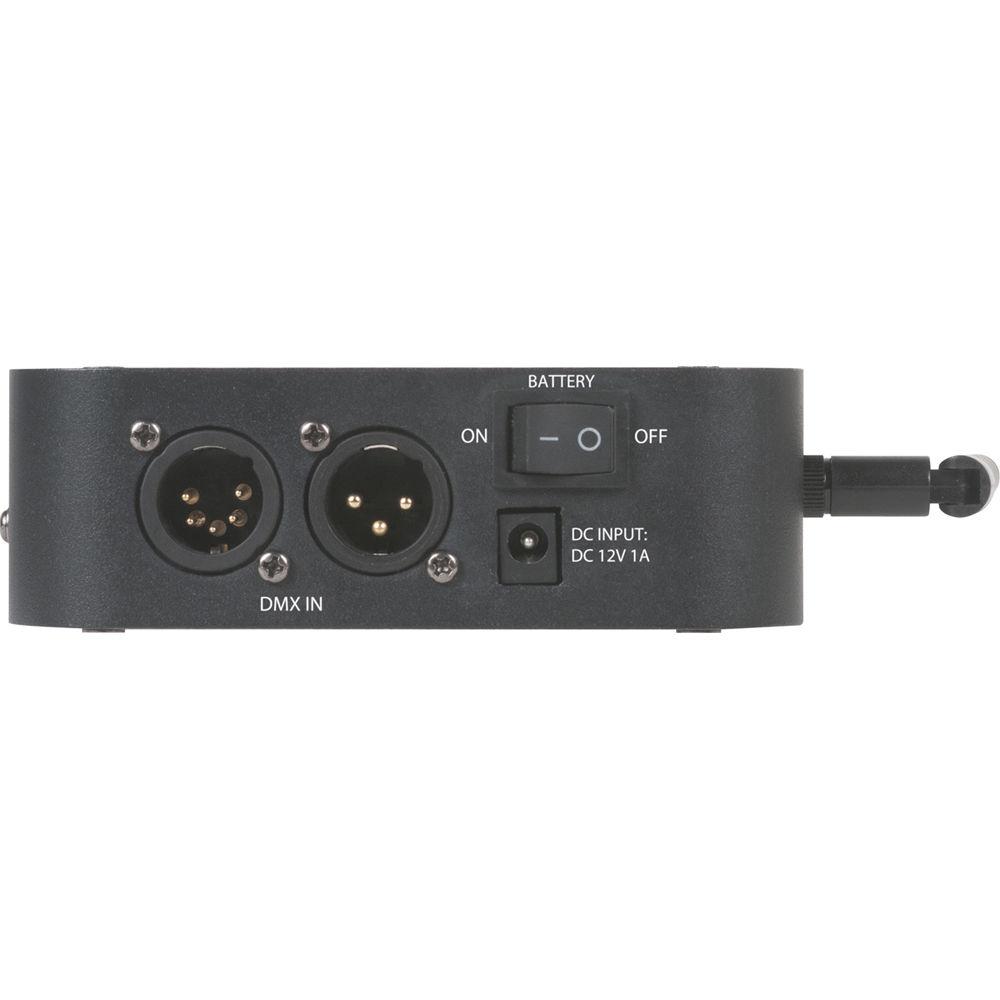

1 x power button | | Connection | 1 x XLR 3-pin DMX input
1 x XLR 3-pin DMX output
1 x XLR 5-pin DMX input
1 x XLR 5-pin DMX output | | Protocols | DMX512
E-FLY Wireless DMX | | LED Indicators | Battery life indicator
Signal strength indicator | | Wireless Frequency | 2.4 GHz ISM | | Wireless Range | Open Line of Sight: up to 2,500' (762 m) | | Approvals and Ratings | CE | | Dimensions (L x W x H) | 6.0 x 5.3 x 1.6" (152.7 x 134.5 x 62 mm) | | Weight | 1.3 lb (0.6 kg) | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 11.2 x 7.7 x 5.0" |
