User Manual for Elation Professional E Spot III LED Light Click to enlarge the picture
Contents of the user manual for the Elation Professional E Spot III LED
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
 |
User manual for the Elation Professional E Spot III LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

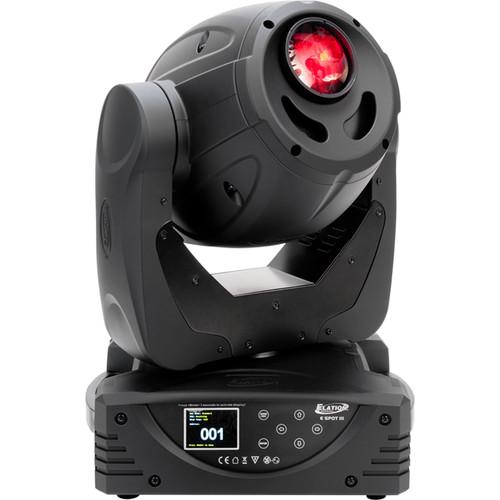

Product description Ideal for entertainment venues, the E Spot III from Elation Professional uses a 90W LED Cool White LED engine, a 19 degree lens and seven rotatable/interchangeable glass gobos. The unit also has a four-blade framing shutter system, three-facet rotating prism, frost filter and motorized iris and focus. Other features include dimming curves, high speed mechanical shutter and strobe, hibernation mode, DMX, RDM (Remote Device Management) and 180 degree reversible full color LCD menu display with six button touch control pane. The flicker-free E Spot III has battery backup for display power and a auto-switching, multi-voltage (100-240 VAC) power supply. - Attributes
- 90W cool white solid state LED spot luminaire
19° beam, 8 dichroic colors
Seven rotating-interchangeable glass gobos
Three-facet and linear rotating prisms and frost filter
High speed mechanical shutter and strobe
Motorized iris and focus and variable dimming curves
Low heat, quiet operation, hibernation mode
Flicker-free operation for broadcast TV and film In the Box Elation Professional E Spot III LED Light Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional E Spot III LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional E Spot III Specs | Light Source | 90 W solid state cool white LED engine | | Photometrics | 7,250 lux / 674 fc @ 8.2' (2.5 m) (19° full on) | | Beam Angle | 19° | | Effects | 3-facet and linear rotating prisms and prism macros
Frost filter hybrid wash effect
Motorized iris and focus
High speed mechanical shutter and strobe
Variable dimming curves | | Gobos | 7 Interchangeable-rotating / indexing glass gobos | | Control Connections | 3x DMX channel modes: 14, 16, 20
RDM (remote device management)
6-button touch control panel
Full color 180° reversible LCD menu display
8 / 16 bit resolution adjustable movement

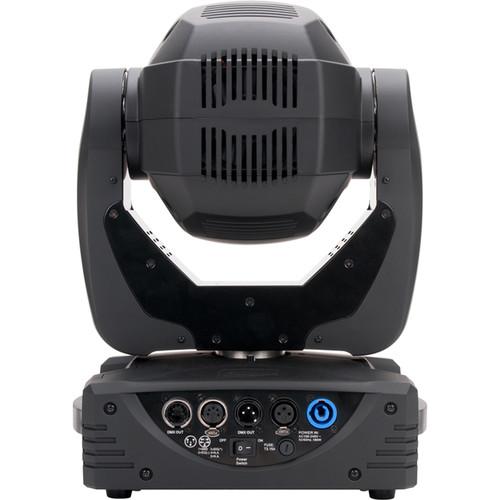

3-pin and 5-pin DMX in/out
1x powerCON power in | | Power | 100-240 VAC, 50/60 Hz | | Power Consumption | 180 W max. | | Operating Temperature | -13 to 113°F (-25 to 45°C) | | Approvals and Ratings | CE, IP20, RoHs compliant | | Working Position | Flat surface / inverted (180°) | | Dimensions | 11.9 x 9.6 x 17.1" (301 x 243 x 435 mm) | | Weight | 23 lb (10.4 kg) | | | | Box Dimensions (LxWxH) | 22.0 x 16.0 x 14.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
