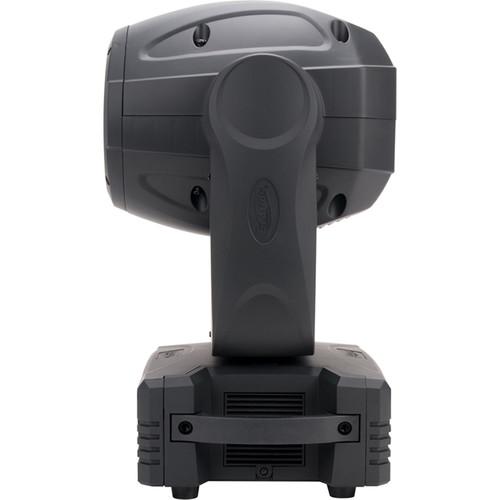

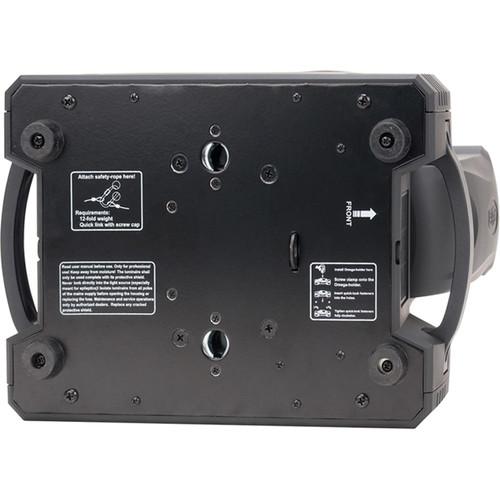

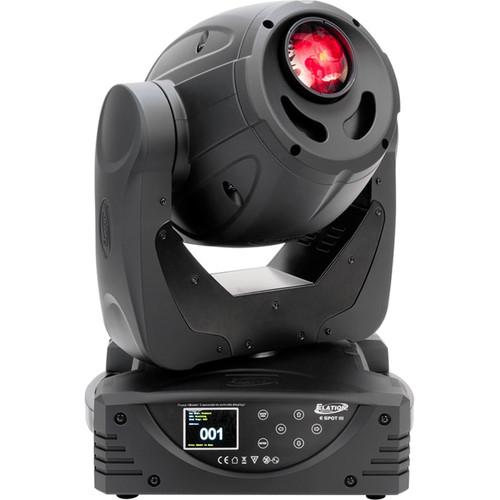

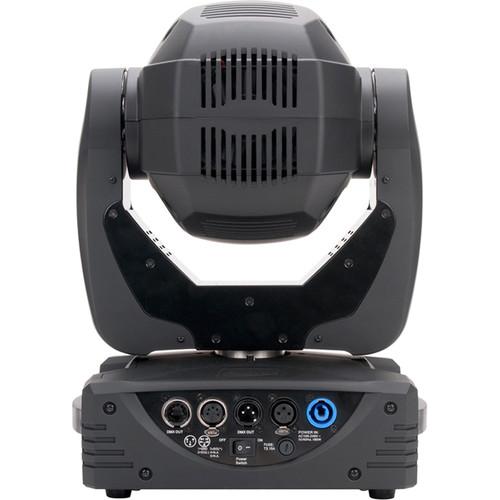

Product description The E Spot III from Elation Professional is a moving head LED fixture designed for indoor use. It features a 90W cool white solid state LED engine. The unit's color wheel has 8 dichroic colors and its gobo wheel has 7 rotating-interchangeable glass gobos. This effect light has a 6-button control panel and an LCD menu display. The data control is via XLR 3-pin and XLR 5-pin DMX connectors. It comes with an Omega bracket and a powerCON cable. - 90W cool white solid state LED spot luminaire
- 19° beam, 8 dichroic colors
- 7 rotating-interchangeable glass gobos
- 3-facet and linear rotating prisms and frost filter
- High-speed mechanical shutter and strobe
- Motorized iris and focus and variable dimming curves
- Flicker-free operation for broadcast TV and Film
- Multi-voltage universal auto switching power supply (100 to 240 VAC)
UPC: 837874018424 In the Box Elation Professional E Spot III Moving Head Fixture Omega Bracket PowerCon Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional E Spot III Moving Head Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional E Spot III Specs | Light Source | 1 x 90 W solid state cool white LED engine | | LED Life | 20,000 hours average | | Beam Angle | 19° | | Photometric Data | 7,250 lux / 674 FC @ 8.2' (2.5 m), 19° full on | | Colors | 8 x dichroic colors | | Gobos | 7 x interchangeable, rotating/indexing glass gobos | | Prism | 3-facet and linear rotating prisms and prism macros | | Focus | Motorized focus | | DMX Channel Modes | 3 x Modes: 14/16/20 channels | | DMX Connectors | 1 x XLR 3-pin DMX input and output
1 x XLR 5-pin DMX input and output | | Protocols | DMX, RDM (Remote Device Management) | | Display | 180°-reversible full-color LCD menu
6-button touch control panel | | Movement Resolution | 8- and 16-bit resolution adjustable movement | | Working Position | Flat surface or inverted (180°) | | Operating Temperature Range | -13 to 113°F (-25 to 45°C) | | Power Connector | 1 x powerCON input | | Power Requirements | 100 to 240 VAC, 50/60 Hz (auto-sensing) | | Maximum Power Consumption | 180 W | | Approvals and Ratings | CE approved, RoHS Compliant | | IP Rating | IP20 | | Dimensions (L x W x H) | 11.9 x 9.6 x 17.1" (30.1 x 24.3 x 43.5 cm) | | Weight | 23.0 lb (10.4 kg) | | | | Box Dimensions (LxWxH) | 22.0 x 16.0 x 14.0" |
