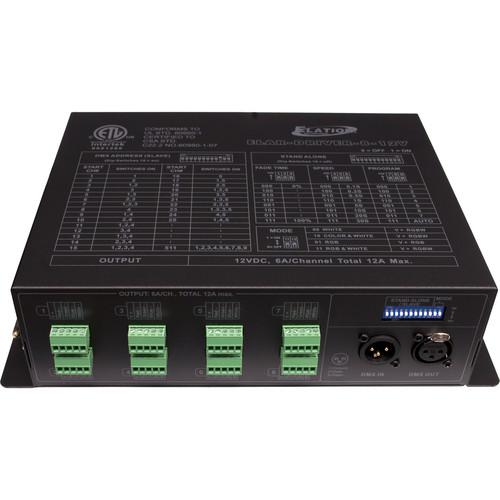

User Manual for Elation Professional ELAR Driver 8 Click to enlarge the picture
Contents of the user manual for the Elation Professional ELAR Driver 8
- Product category: DMX Devices Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DMX Devices
|
User manual for the Elation Professional ELAR Driver 8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The ELAR Driver 8 from Elation Professional is high-performance LED driver with DMX and Stand-Alone operation, 7 built-in programs and 4 output operation modes including White, Color and White, RGB, and RGB and White modes. - Features
-
- Universal LED driver
- 12 Position DIP switch for function set up
- USITT DMX512 (1990) compatible
- DMX and stand-alone operation modes
- 0-100% Stand-alone fade time setting
- 0.1S - 30S Stand-alone chase speed setting
- 7 Built-in programs
- Power output options: 8 terminal outputs
- DMX output operation modes:
- Pure White: (intensity) 1 DMX channel
- Color with white saturation: 2 DMX channels
- RGB: 3 DMX channels
- RGBW: 4 DMX channels
UPC: 837874010114 In the Box Elation Professional ELAR Driver 8 (12 VDC) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional ELAR Driver 8 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional ELAR DRIVER-812V Specs | Material | Black powder-coat sheet metal | | Input / Output | 8x 5-Pin phoenix terminal sockets, 1A per output
1x DMX 3-pin XLR input
1x DMX 3-pin XLR output | | Control | DMX-512 (1990) | | Operating Voltage | 110-120 VAC (3.2 A) / 220-240 VAC (1.6 A), 50/60 Hz, power input voltage switch | | Output | 12 VDC, 6 A/CH, total 12 A max. | | Certifications | CE | | Operating Temperature | 32°F to 104°F (0°C to +40°C) | | Storage Temperature | 4.0°F to 158°F (-20°C to +70°C) | | Dimensions | 11.24 x 5.75 x 2.87" (285 x 146 x 76 mm) | | Weight | 4.4 lb (2.0 kg) | | | | Package Weight | 5.4 lb | | Box Dimensions (LxWxH) | 13.9 x 11.6 x 5.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
