Product description

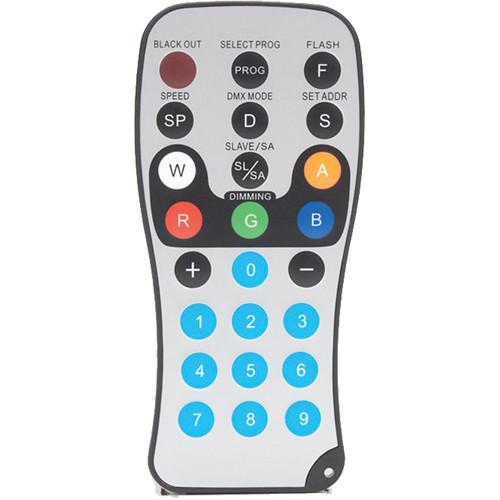

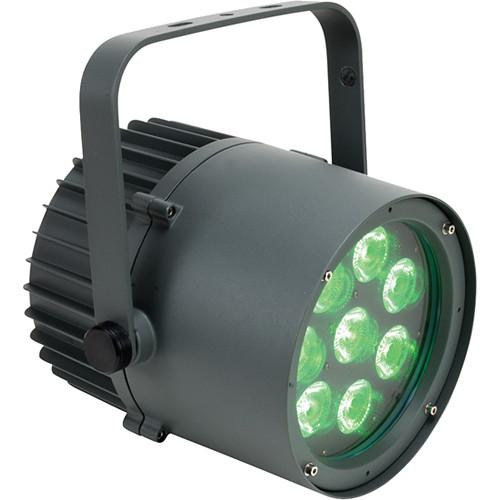

The ELAR EXQUAD Par HP from Elation Professional is a high powered outdoor LED par fixture designed for mobile DJs and clubs. This unit has 8 QUAD colored RGBW LEDs which produce infinite colors by mixing, and a 25° beam angle. It has 4 operating modes: Auto Run, Program, RGB, and DMX controlled. The ELAR EXQUAD Par HP has 8 DMX modes. Additional features include 0-100% dimming and slow to fast strobing. This unit features a built-in microphone, and can be used as a standalone unit or as a Master/Slave unit by data-daisy-chaining via the DMX input and output. Also, up to 12 ELAR EXQUADPAR HP units can be power-daisy-chained using the IEC input and output. The internal power supply is equipped with an automatic voltage switch which auto-senses the voltage when plugged into a power source. Use the remote control ELAR WR IR II (not included) for controlling your ELAR EXQUAD Par HP; to create programs tailored to your own individual needs, operate your fixture through an Elation DMX controller. The unit is IP65 rated and CE approved, and is safe in any working position both outdoors and indoors. The ELAR EXQUAD Par HP includes a power cable and a signal cable. Note: Certain functions can only be obtained by use of an ELAR WR II Infrared Wireless Remote Controller
  • 8 quad color (RGBW) 4-in-1 LEDs
  • Built-in microphone
  • DMX-512 protocol
  • 8 DMX modes: 1, 2, 3, 4, 5, 6, 7, and 8
  • 0-100% dimming
  • Daisy-chain units in DMX mode
  • Daisy-chain units via the power cord
  • Controllable via IR remote
  • Can be used as a standalone unit or as a Master/Slave unit
  • IP65 rated, CE approved
UPC: 837874015799 In the Box Elation Professional ELAR EXQUAD Par HP
  • Power Cable
  • Signal Cable
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Elation Professional ELAR EXQUAD Par HP in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Elation Professional ELAR EXQUAD PAR HP Specs

    Lamp 8 x 5 W Quad color LEDs
    Beam Angle 25°
    Photometric Data 883 lux @ 13.1' (4 m)
    Color Red, green, blue, and white (4-in-1)
    DMX Channels 1, 2, 3, 4, 5, 6, 7, and 8
    IP Rating 65

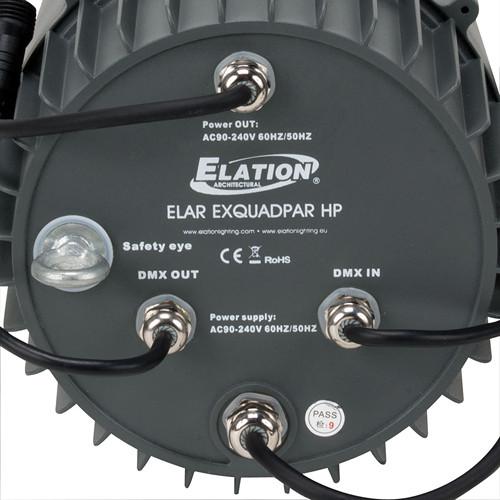

    Connection Type 1 x DMX input
    1 x DMX output
    1 x Power input
    1 x Power output
    Power 100 - 240 VAC, 50/60 Hz
    Power Consumption 45 W
    Dimensions (L x W x H) 8.25 x 8.25 x 9.5" (20.5 x 20.5 x 23.5 cm)
    Weight 11 lb (4.6 kg)
    Package Weight 11.0 lb
    Box Dimensions (LxWxH) 14.5 x 13.5 x 10.5"
