User Manual for Elation Professional ELAR Q1 Quad LED RGBW Light Click to enlarge the picture
Contents of the user manual for the Elation Professional ELAR Q1 Quad LED
- Product category: Stage & Studio Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional Stage & Studio
|
User manual for the Elation Professional ELAR Q1 Quad LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

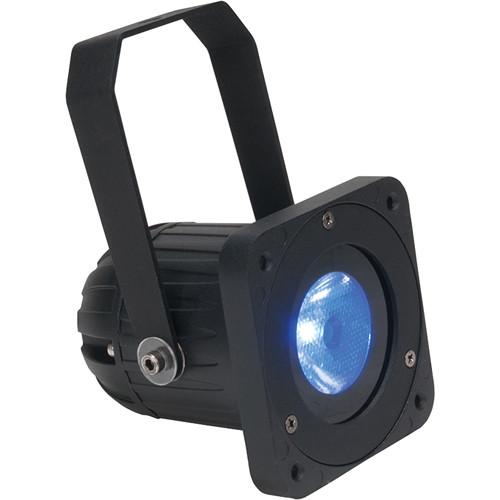

Product description The ELAR Q1 Quad LED RGBW Light from Elation Professional features IP65 weather resistance, 7° beam and 14° field angles, 4 DMX channels, and RDM (remote device management) with a direct DMX auto-addressing option. The unit offers flicker-free operation for broadcast TV and film, 18W max power consumption, and an integrated adjustable yoke with flush mounting options. This light requires separate purchase of the ELAR Q1 PSU power supply for use. - Attributes
-
- IP65 weather-resistant rated
- 7° Beam Angle and 14° Field Angle
- RDM (Remote Device Management)
- Direct DMX auto-addressing option
- 10W RGBW Quad LED
- 100,000 Average hour LED life
- 4 DMX channels
- Multiple unit linkable (max 15 units per optional ELAR Q1 PSU)
- Flicker-free operation for broadcast TV and film
- 18W max. power consumption
UPC: 837874017861 In the Box Elation Professional ELAR Q1 Quad LED RGBW Light Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional ELAR Q1 Quad LED RGBW Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional ELAR Q1 Specs | Light Source | 1 x 18 W RGBW Quad LED (red, green, blue, white) | | LED Lifetime | Average: 100,000 hours | | Colors | 16.7 million colors, 8 bits per color | | Photometrics | 9,310 lux/865 fc @ 3.3' (1.0 m) @ 7° full on
2,698 lux/251 fc @ 6.6' (2.0 m) @ 7° full on
1,170 lux/109 fc @ 9.8' (3.0 m) @ 7° full on | | Beam and Field Angle | Beam Angle: 7°
Field Angle: 14° | | Dimming | Via DMX | | Protocols | DMX512 and RDM (Remote Device Management) | | DMX Channels | 4 | | In/Out Connections | 8-Pin data/power combo IP cables in/out | | Power Requirements | Requires the ELAR Q1 PSU
24 VDC | | Power Linking | Up to 15 fixtures per ELAR Q1 PSU | | Power Consumption | 18 W | | Mounting | Integrated adjustable yoke | | Approvals and Ratings | CE, cETLus | | IP Rating | IP65, weather-resistant | | Operating Temperature | 14 to 113°F (-10 to 45°C) | | Dimensions (L x W x D) | 3.8 x 2.9 x 2.9" (96 x 73 x 73 mm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 11.4 x 4.2 x 3.8" |
