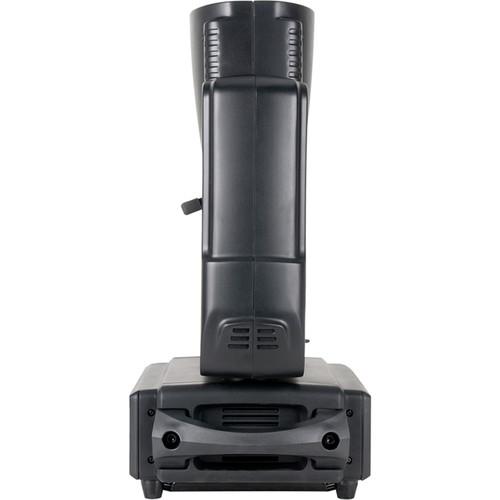

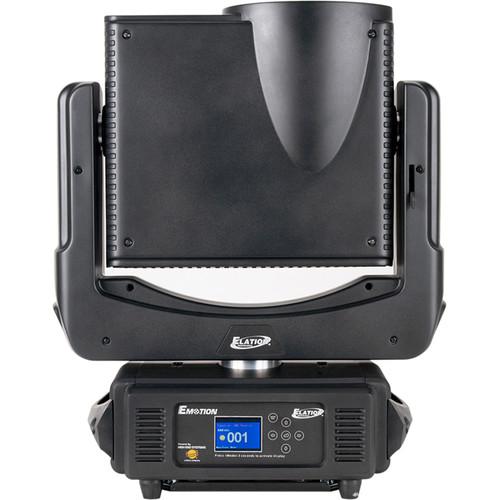

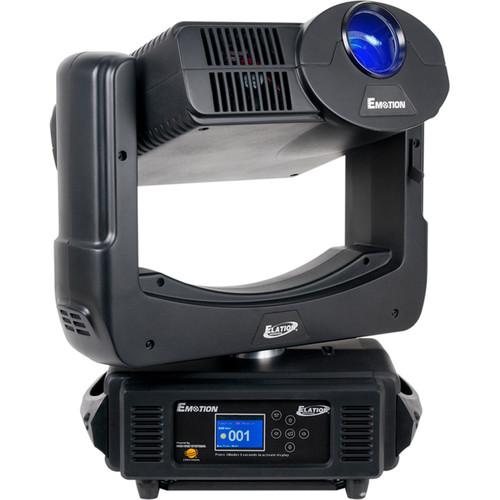

User Manual for Elation Professional EMOTION Digital Moving-Head Projector with Internal Server Click to enlarge the picture
Contents of the user manual for the Elation Professional EMOTION Digital Moving-Head Projector
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
 |
User manual for the Elation Professional EMOTION Digital Moving-Head Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description Create scenic or aerial animated projections with the EMOTION from Elation Professional. This moving-head projector luminaire comes with an on-board media sever, and projects full-color digital gobos, video images, and live background effects, with the ability to position, scale, and animate two layers of content via DMX or Art-Net on the fly. The projector is powered by an OSRAM 240W lamp delivering up to 4000 ANSI lumens with a native video output resolution of XGA 1024 x 768 via a DLP-DMD chip.
The integrated 64GB SSD media server is loaded with an arsenal of royalty-free content: the entire Elation digital gobo catalog, 255 digital art videos, and 40 live background effects. Gobo rotations, fading, and color effects are examples of the 28 available transitions between images and backgrounds. Additionally, custom video and still-image content can be easily added remotely to the on-board media libraries via the PC-based CMA application.
Equipped with Collage Generator software and variable edge-blending capability, the EMOTION allows for seamless projection of collage or single-image arrays using two to 16 fixtures. The EMOTION's media server requires only 32 channels of DMX control per fixture while still allowing you to manipulate effects, pan & tilt, digital & optical zoom, and mechanical dimming. An extended protocol with 54 channels per fixture adds detailed keystone control and fixture synchronization, and allows for collaging larger images. - Projector
-
- 4000 ANSI lumens projector powered by an OSRAM 240W UHP lamp
- DLP-DMD technology
- Native resolution of XGA 1074 x 768
- Native aspect ratio of 4:3, compatible with 16:9 resolution
- Effects
-
- Digital and optical zoom
- Motorized focus
- CMY & RGB color mixing
- Mechanical shutter / dimmer
- 28 transition effects between layers
- Collage Generator Software (Included)
-
- Array of seamless projections possible using 2 to 16 EMOTION fixtures
- Vertical, horizontal, and central panoramic configurations controlled from a DMX console
- Stock, custom, and custom HD Collage Generator content displayable in Collage Mode
- Variable Edge Blending
-
- On-the-fly adjustment of blend overlap between multiple projectors when used in conjunction with any of the Collage Generator modes
- Flexibility for sizing a collage to a given screen or projection surface
- Smoother blending if wider blend regions are used
- Media Server
-
- 64GB SSD storage
- Royalty-free Elation gobo catalog
- 255 royalty-free video images
- 40 live/background effects and color control
- Easy custom content upload via PC-based CMA application
- Control
-
- DMX control and daisy chaining via 5-pin XLR in/out
- Art-Net configurable via RJ-45
- Graphics and media sever access input via USB 3.0 and RJ-45
UPC: 837874018622 In the Box Elation Professional EMOTION Digital Moving-Head Projector with Internal Server 2 x Omega Brackets 5-Pin XLR DMX Cable PowerCON Cable Safety Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional EMOTION Digital Moving-Head Projector with Internal Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Emotion Specs | Light Source | OSRAM UHP 240 W lamp | | Display Technology | DLP DMD chip | | Lamp Life | Average Lamp Life: 3000 hours
Eco Mode: 6000 hours | | Illuminance | 4000 ANSI lumens | | CRI | >80 | | Color Temperature | 6700K | | Aspect Ratio | 4:3 native
16:9 compatible | | Resolution | XGA 1024 x 768 | | Projection Distance | 3.9 - 32.8' (1.2 - 10.0 m) | | Contrast Ratio | 15,000:1 | | Image Size | 30 - 307" (76.2 - 779.8 cm) | | Colors | 1 billion (10-bit) | | Storage | 64 GB SSD media server | | Pan & Tilt | Pan: 540°
Tilt: 240° | | DMX Channel Modes | 32 / 54 | | Control | 6 x buttons on touch-control panel

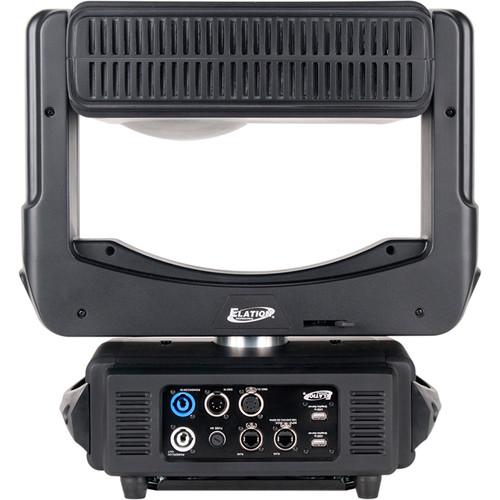

Full-color 180° reversible LCD menu display | | Connectors | Graphics Server: 2 x USB 3.0 ports
Graphics Server / Art-Net: 2 x RJ45 ports
DMX Input: 1 x 5-pin XLR
DMX Output: 1 x 5-pin XLR | | Power Connectors | Input: 1 x powerCON
Output: 1 x powerCON | | Working Position | Flat surface
Inverted 180° | | Input Voltage | 100-240 VAC, 50/60 Hz | | Power Consumption | 350 W | | IP Rating | IP20 | | Approvals | CE | | Dimensions | 18.9 x 15.0 x 22.4" (48.0 x 38.2 x 56.9 cm) | | Weight | 44 lb (20 kg) | | | | Box Dimensions (LxWxH) | 22.0 x 19.0 x 15.0" |
