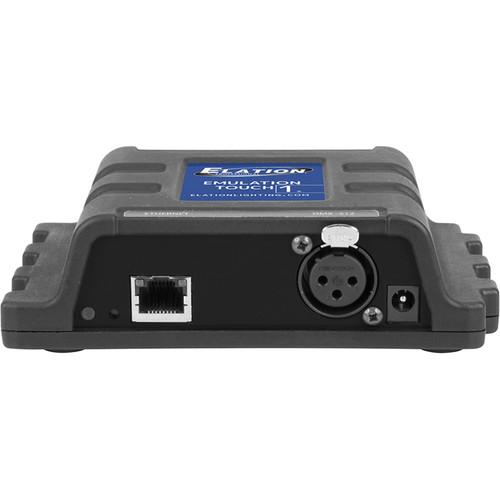

User Manual for Elation Professional Emulation Touch-1 Click to enlarge the picture
Contents of the user manual for the Elation Professional Emulation Touch-1
- Product category: DMX Devices Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DMX Devices
|
User manual for the Elation Professional Emulation Touch-1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The Emulation Touch-1 from Elation Professional is the hardware brain that drives your DMX system. It handles all the DMX level calculations, cue timings, and the FX engine. Although it does not include Wi-Fi, you can interface with the Cuety app (free download) for the iPad (not included) allowing you to control the Touch-1 wirelessly over your hard-wired network. You can also use the Cuety Remote app for iPhone (not included) to trigger playback in the Cuety app, but you cannot program from the Cuety Remote.
As the Touch-1 stores all the information and performs all the necessary calculations; once you have set up the program you can disconnect the Cuety app and the Touch-1 will run through the active cues. Featuring an integrated 3-Pin XLR connector for DMX-512 out the Touch-1 also incorporates an isolated RJ-45 that you use to connect to your network. The Touch-1 supports DMX-512, Art-Net, and RS-232 protocols. - Apps
-
- The compatible apps are more accurately described as interfaces, as all the work is done by the hardware. The Cuety app allows you to set and edit settings.
- The Cuety Remote app for iPhone (not included) allows you to trigger playback buttons, but does not allow you to program or edit the contents of your program.
- The Emulation lighting Control System is a more powerful programming system than the Cuety, and you can use the Cuety Remote app to trigger Emulation cue's as well.
- FX
-
- FX allows you to quickly program dynamic lighting effects. Normally to animate your lighting you usually create multiple cues and have the playback chase between them.
- However, you can use FX to quickly create a dynamic animation in your lighting. For example, a smooth circular movement on your moving head or scan would require you to program many steps. With FX you simply select the Circle effect for your position attribute, set a few parameter levels and it's done.
- Network
- The Touch-1 connects to your network via the built-in RJ-45 port. You connect your iPad (not included) running the Cuety app to your network wirelessly, and this enables network communication between your iPad and the Touch-1.
- Protocols
- The Touch-1 supports DMX, Art-Net, RS-232, and is suitable for temporary or permanent installations.
- Mounting
- The Touch-1 mounts via DIN Rails, and can be secured by sing a Kensington-type laptop lock.
In the Box Elation Professional Emulation Touch-1 AC Power Adapter 6.5' Ethernet Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Emulation Touch-1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional EMU120 Specs | DMX Connectors | Output: XLR 3-pin | | Data Connector | RJ-45 Ethernet | | Protocols | DMX, Art-Net, RS-232 | | Power | 9 to 12 VDC, 500 mA
12W maximum | | Operating Temperature | 14 to 113°F / -10 to 45°C | | Mounting | DIN Rail (Requires DIN Rail Holder not included) | | Dimensions | 5.4 x 3.0 x 1.6" / 137 x 76 x 41 mm | | Weight | 0.44 lb / 0.2 kg | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 10.5 x 5.0 x 3.6" |
