Elation Professional enode 8 PRO DMX

Search your instruction manual in PDF to download

User Manual for Elation Professional enode 8 PRO DMX Controller

Click to enlarge the picture
Elation Professional enode 8 PRO DMX Controller Contents of the user manual for the Elation Professional enode 8 PRO DMX
  • Product category: DMX Devices Elation Professional
  • Brand: Elation Professional
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Elation Professional DMX Devices

User manual for the Elation Professional enode 8 PRO DMX contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Elation Professional product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!



Product description

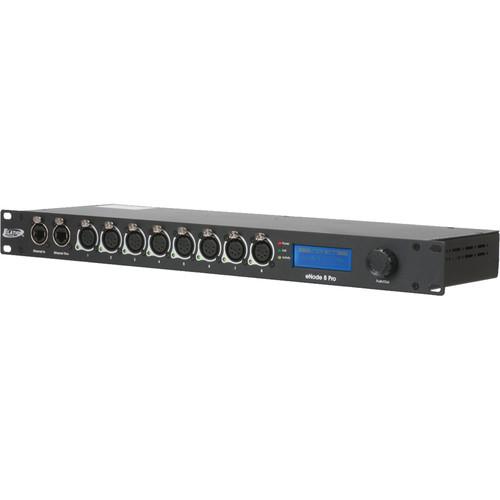

The enode 8 PRO DMX Controller from Elation Professional features 8 universal DMX ports, 2 RJ45 TCP/IP 10/100M Ethernet ports, auto MDI/MDIX, DMX-512 and ArtNet support. Other features include ArtNet-DMX bilateral signal conversion, DMX splitter function (1 input/3 outputs) and broadcast and backup modes.
    Features
  • LCD menu, function display, LED indicators
    Rotary menu wheel / function selection button
    PowerCON power In
    Auto MDI/MDIX, DMX-512 and ArtNet Support
    ArtNet - DMX bilateral signal conversion
    DMX splitter function: 1 input/3 outputs or 1A Input/3A Outputs and 1B input/ 3B outputs
    Broadcast Mode: one device transmits same signal to other connected devices
    Backup Mode
UPC: 837874017052 In the Box Elation Professional enode 8 PRO DMX Controller
  • powerCON Cable (5'/1.5 m)
  • 2 x EtherCON Cable Connector Carrier
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Elation Professional enode 8 PRO DMX Controller in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    Elation Professional ENODE 8 PRO Specs

    Input / Output Connectors 8x Universal DMX ports (can be set as input or output)
    2x RJ45 TCP/IP 10/100M Ethernet connections
    Voltage Requirements 100-240VAC, 50/60Hz
    Power Consumption 7W max.
    Installation Any flat surface or standard 19" rack mount
    Operating Temperature 35.6°F (2°C) to 113°F (45°C)
    Dimensions 19 x 6.3 x 1.7" (482 x 160 x 43 mm)
    Weight 4.6 lb (2.1 kg)
    Package Weight 6.35 lb
    Box Dimensions (LxWxH) 20.9 x 9.5 x 5.7"
