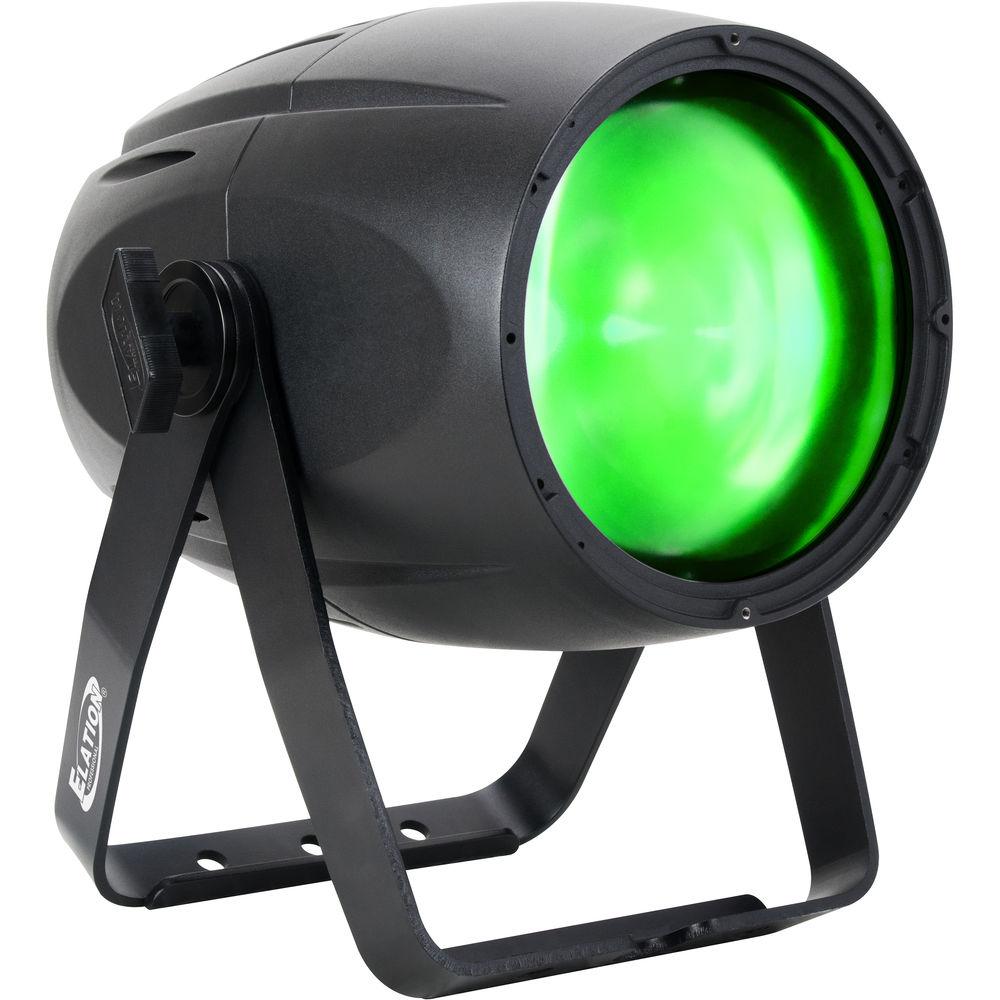

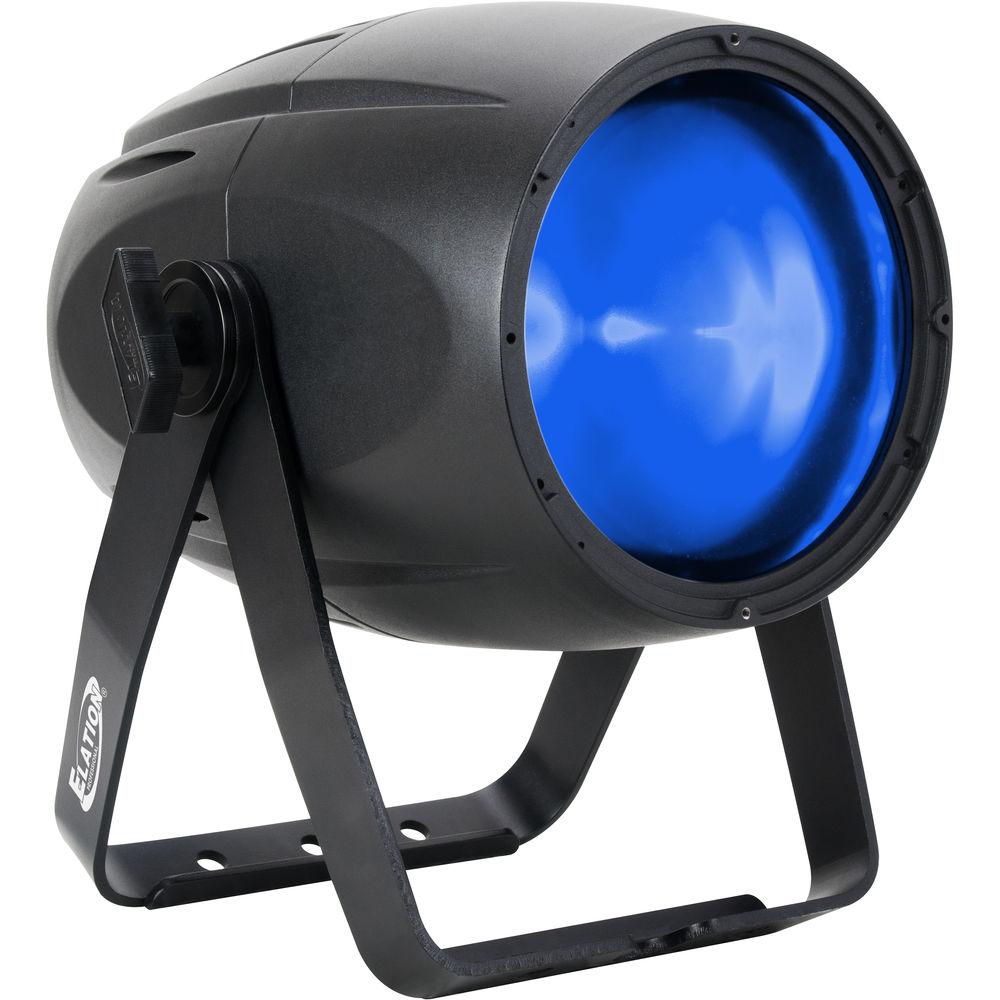

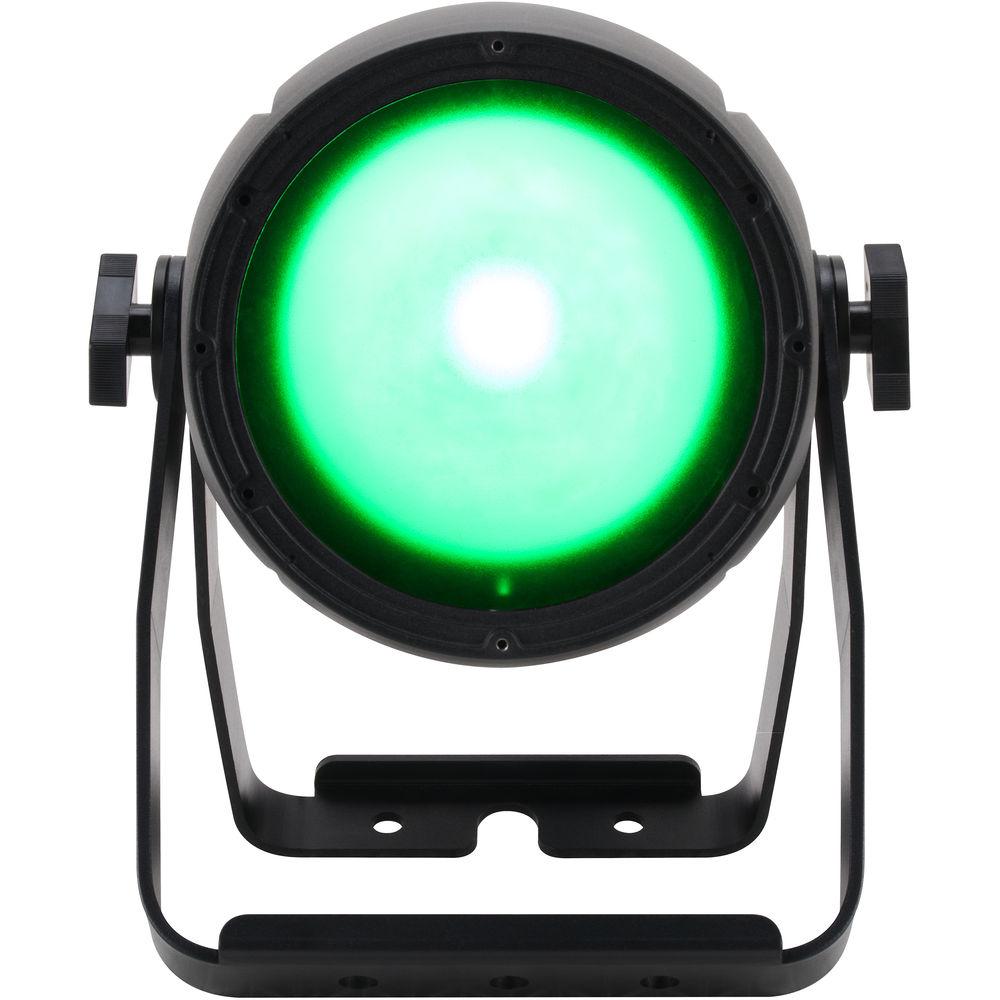

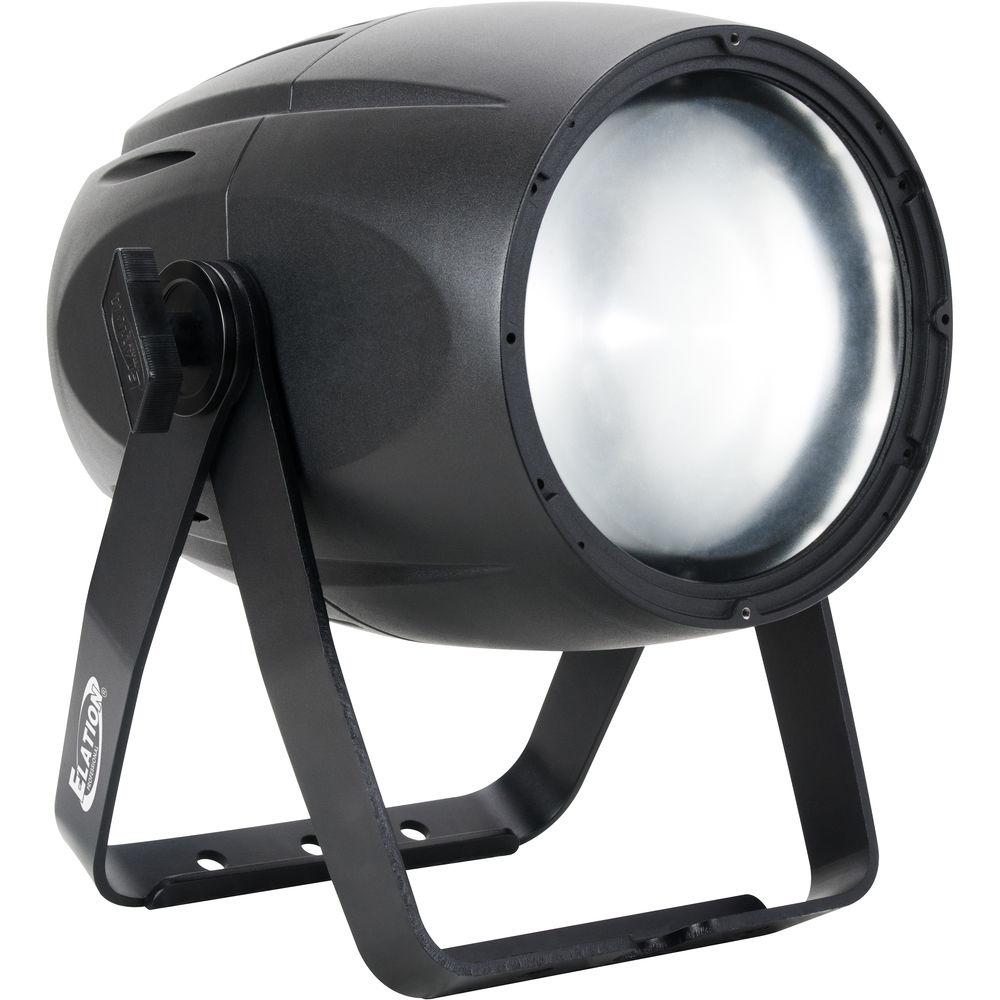

Product description The Elation Professional FUZE PAR Z175 is a single source, silent operating par fixture, well suited for professional events and concerts, and provides flicker-free operation for TV and film production. The instrument utilizes a 175W RGBW COB LED engine and features an advanced cooling system and a motorized zoom (8° to 35°). The FUZE PAR Z175 provides smooth RGBW color mixing, 64 color presets, and 14 color macros plus electronic strobe and 16-bit variable dimming curves.

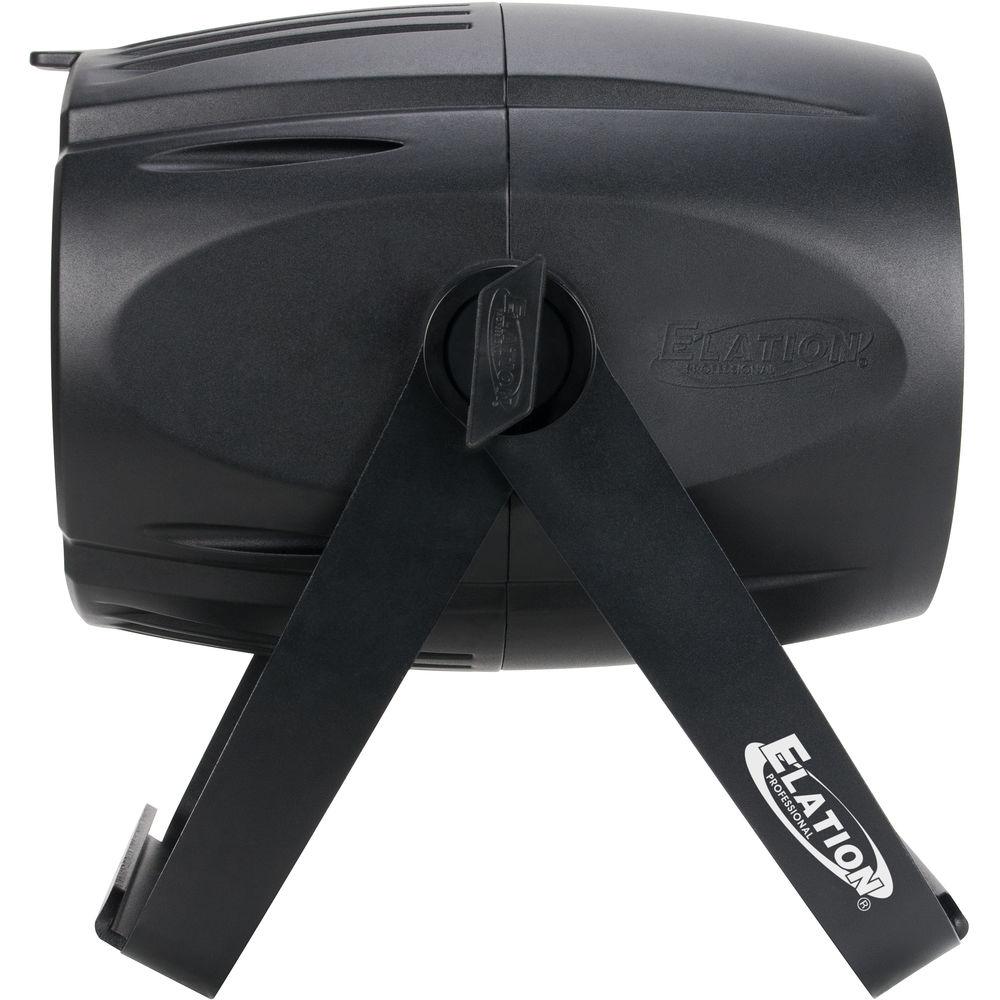

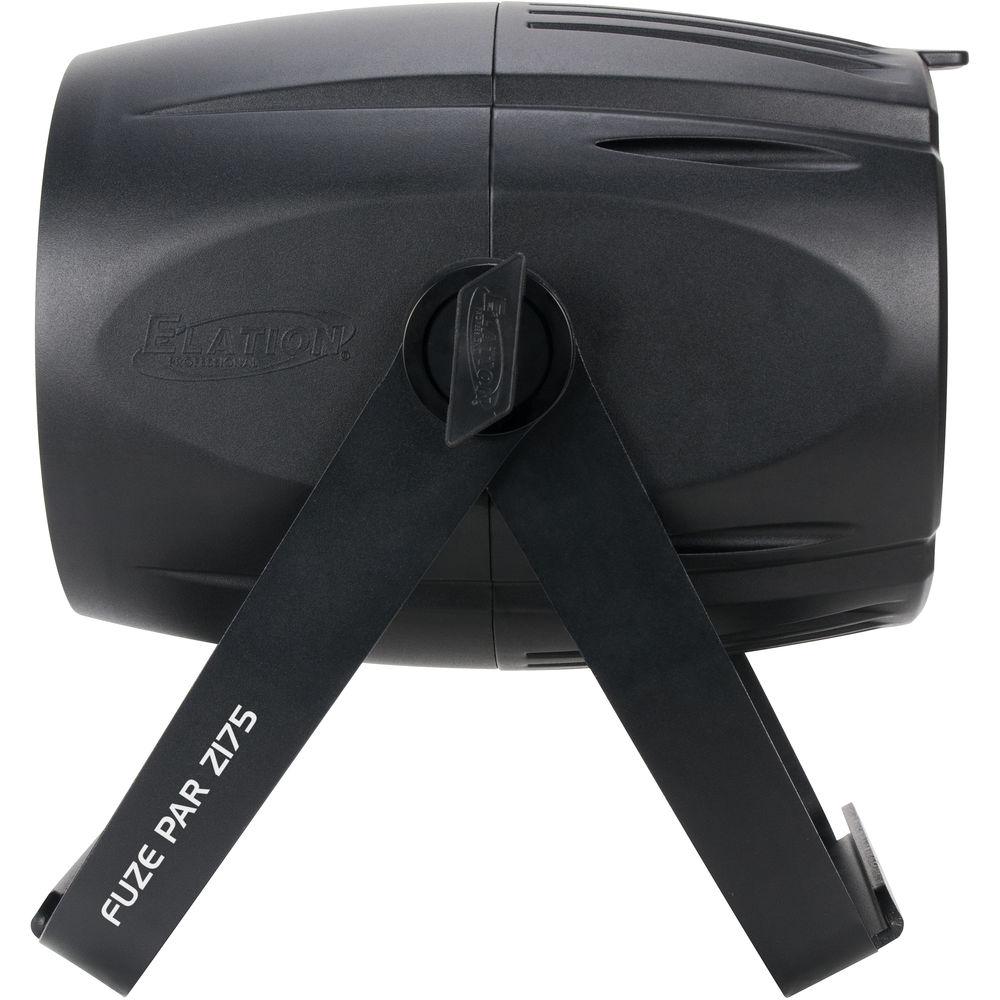

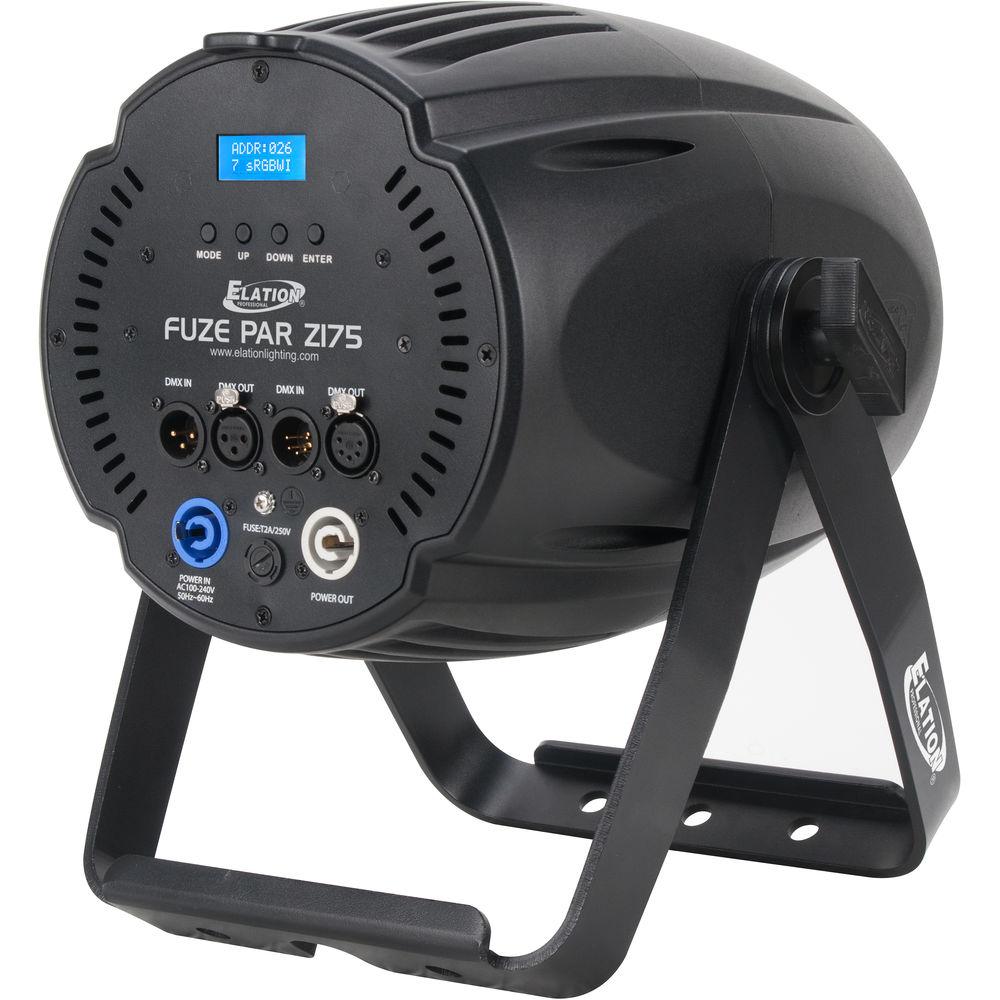

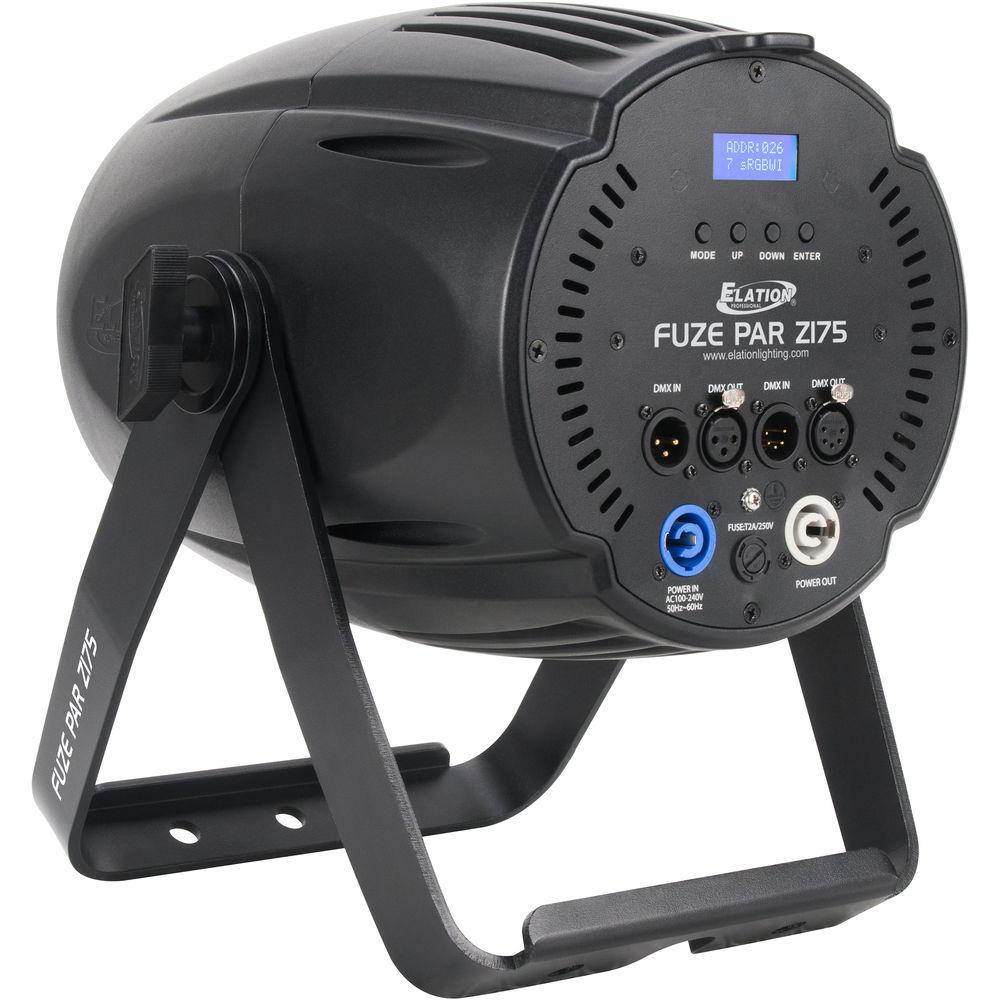

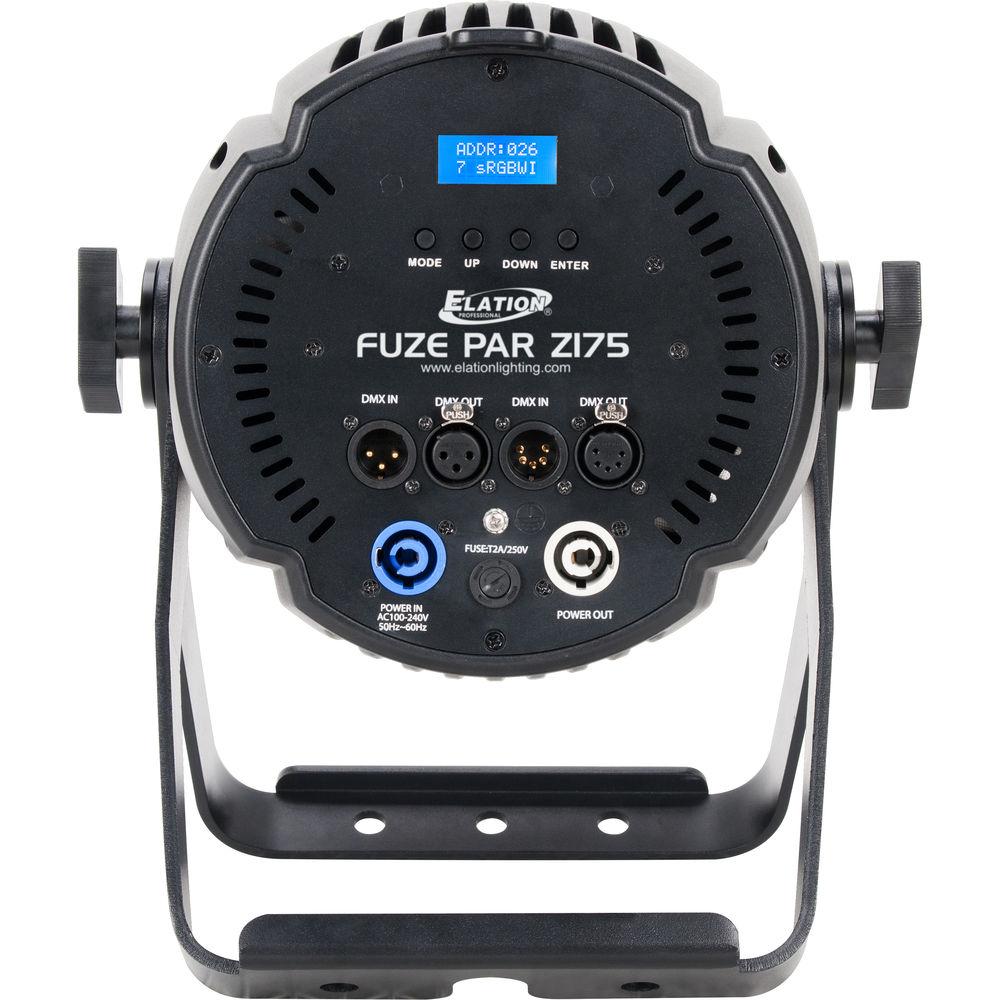

The rear panel offers a four-button controlled LED, which can be 180° reversed for ease in programming. The fixture can be controlled by RMD and DMX, which offers 12 channel modes (14 total channels). There are two sets of DMX input/output connectors (2 x 5-pin DIN & 2 x 3-pin DIN) for flexibility in setup and control. The rugged enclosure features integrated dual rigging yokes and includes a gel frame and barn doors. The FUZE PAR Z175 utilizes a universal power supply with auto switching for operation anywhere in the world and ships with a powerCON power cable. -
- Single source silent operating par
- 175W RGBW COB LED engine
- Motorized Zoom: 8° to 35°
- Advanced cooling system
- Smooth RGBW color mixing
- Variable 16-bit dimming curve modes
- Flicker-free operation for TV and film
- Gel frame and barn doors included
UPC: 837874002423 In the Box Elation Professional FUZE PAR Z175 - 175W RGBW COB LED Par with Zoom Barn Door Gel Frame powerCON TRUE 1 Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional FUZE PAR Z175 - 175W RGBW COB LED Par with Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Fuze PAR Z175 Specs | Light Source | 175 W RGBW COB LED | | LED Life Expectancy | 50,000 hour average LED life | | Photometric Data | 15,026 lux 1396 FC at 6.6' / 2 m (full on 8°)
3481 lux 323 FC at 6.6' / 2 m (full on 35°) | | Motorized Zoom | 8° to 35° | | Macros | 64 color presets and color macro programs | | Strobe | Electronic Strobe | | Dimming | 16-bit variable dimming curve modes | | Color | Red, green, blue, white (RGBW) | | Control and Connectors | DMX Channel Modes: 12 (14 total channels)
4 button control panel and LCD menu display
Remote Device Management: RDM
DMX In/Out: 2 x 5-pin DIN and 2 x 3-pin DIN
Power In/Out: 2 x powerCON TRUE1 | | Electrical and Environmental | Power Input: 100 to 240 VAC, 50/60 Hz
Max Power Consumption: 200 W
5 to 113°F / -15 to 45°C | | Approvals and Ratings | CE / IP30 | | Dimensions (L x W x H) | 18.2 x 16.2 x 17.0" / 462.3 x 411.5 x 431.8 mm | | Weight | 20.0 lb / 9.1 kg |
