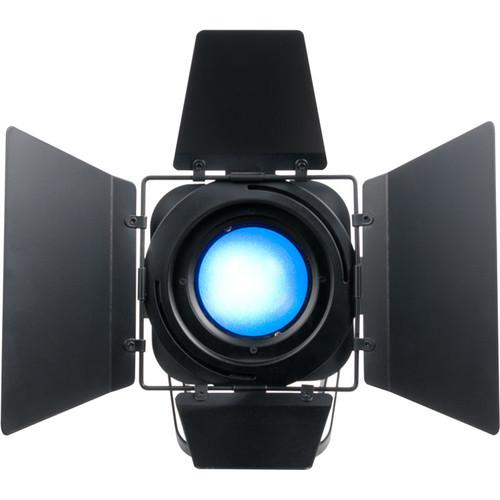

User Manual for Elation Professional FUZE PAR Z60 IP RGBW LED Wash Light Click to enlarge the picture
Contents of the user manual for the Elation Professional FUZE PAR Z60 IP
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
 |
User manual for the Elation Professional FUZE PAR Z60 IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

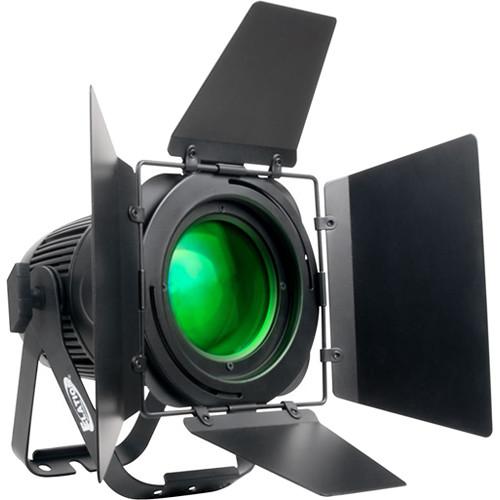

Product description The IP65-rated FUZE PAR Z60 IP from Elation Professional is a single-source silent-operating PAR luminaire with a 60W quad-color RGBW COB (chip-on-board) LED. It features a 7 to 39° motorized zoom, RGBW color mixing, electronic strobe, selectable dimming curves, and flicker-free operation for broadcast TV and film. IP65-rated 5-pin DMX and powerCON in/out connectors make this unit suitable for both indoor and outdoor use, and the included gel frame and adjustable barn doors allow for further design possibilities.

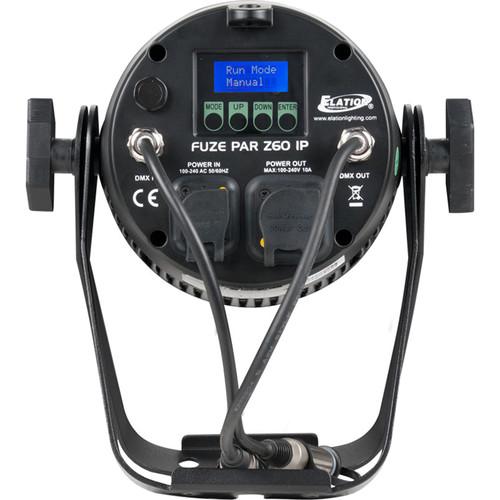

Configuring the fixture is simple with the LCD menu display and four-button touch control panel. It is powered by an auto-switching 100 to 240 VAC power supply that allows for power linking multiple units. Dual adjustable yokes offer multiple rigging options. - 60W RGBW COB LED PAR luminaire
- 7 to 39° motorized zoom range
- IP65-rated for ingress protection against dust and water
- 64 color presets and 14 color programs (static, jump, fade)
- Multiple unit power linking
- Flicker-free operation for broadcast TV and film
- Power link multiple units
- Multi-voltage universal auto-switching power supply (110 to 240 VAC)
UPC: 837874019704 In the Box Elation Professional FUZE PAR Z60 IP RGBW LED Wash Light Gel Frame Barn Door Gel Frame / Barn Door Holder Mounting Screws powerCON TRUE1 Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional FUZE PAR Z60 IP RGBW LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Fuze PAR Z60 IP Specs | Light Source | 1 x RGBW COB LED, 60 W | | Lamp Life | 100,000 hours | | Illuminance | 7° (Full On): 354 fc / 3,813 lux at 9.8' / 3 m
39° (Full On): 21 fc / 228 lux at 9.8' / 3 m
| | Beam Angle | 7 to 39° | | Field Angle | 12 to 43° | | Zoom Adjustment | Motorized | | Dimmer | Electronic | | Dimmer Curves | 5 | | Shutter/Strobe | Electronic | | Color | RGBW, Standalone | | Color Effects | 64 x presets
| | Built-In Programs | Yes | | Master/Slave Support | Yes | | Protocols | DMX, RDM | | DMX Connectors | Input: XLR 5-pin, IP-Rated
Output: XLR 5-pin, IP-Rated | | DMX Channels | 4 [1], 4 [2], 5, 6, 7 [1], 7 [2], 8, 9, 10 [1], 10 [2], 12, 13 channels | | Display | LCD display with 4-button touch control panel | | Input Voltage | 110 to 240 VAC, 50/60 Hz (auto-sensing) | | Power Connection Type | Input: powerCON TRUE1
Output: powerCON TRUE1 | | Power Linking | 120 V: 16 x units
240 V: 28 x units | | Power Consumption | 78 W | | IP Rating | IP65 | | Temperature Range | 5 to 113°F (-15 to 45°C) | | Approvals and Certifications | CE, RoHs | | Mount | Adjustable dual yokes | | Dimensions (L x W x H) | 10.1 x 9.9 x 11.1" / 253 x 252 x 282 mm | | Weight | 10 lb / 4.5 kg | | | | Package Weight | 15.75 lb | | Box Dimensions (LxWxH) | 15.8 x 11.0 x 10.6" |
