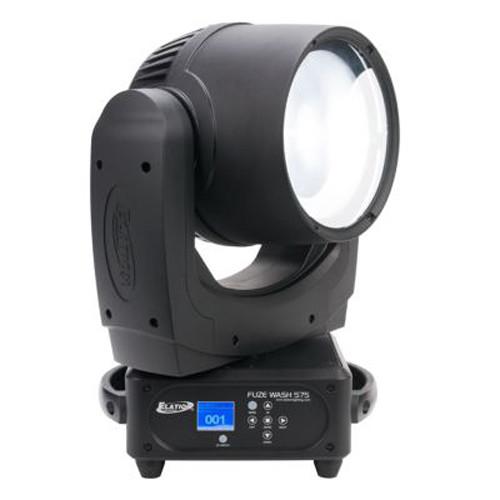

User Manual for Elation Professional FUZE WASH 575 - Moving Head Wash Fixture with Zoom Click to enlarge the picture
Contents of the user manual for the Elation Professional FUZE WASH 575 -
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
|
User manual for the Elation Professional FUZE WASH 575 - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The Elation Professional FUZE WASH 575 is a professional single source moving head LED par fixture, well suited for special events and concerts, as well as flicker-free operation for TV and film production. The fixture features a high-output 350W cool white / daylight 6800K 95CRI COB LED engine with a motorized zoom (11° to 40°), smooth 16-bit pan and tilt movement, an electronic strobe, and selectable dimming curve effects.
The FUZE WASH 575 can be controlled by remote device management (RDM) and DMX with two channel modes (11 total channels). The rear panel offers two DMX 5-pin DIN in/out connectors and two powerCON TRUE1 in/out connectors. Additionally, there is a 7-button control panel and menu display. The Elation Professional FUZE WASH 575 ships with omega brackets and a power cord. -
- Cool-white/daylight single source par moving head
- High-output 95CRI 6800K COB LED
- Motorized Zoom: 11° to 40°
- Smooth 16-bit pan and tilt movement
- Variable dimming curve modes
- RDM (remote device management)
- Flicker-free operation for TV and film
- Multiple unit power linking
- Optional snoot lens available
UPC: 837874003086 In the Box Elation Professional FUZE WASH 575 - Moving Head Wash Fixture with Zoom Omega Brackets powerCON TRUE1 Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional FUZE WASH 575 - Moving Head Wash Fixture with Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Fuze Wash 575 Specs | Light Source | 350 W 95CRI 6800K cool-white/daylight COB LED
50,000 hour average LED life | | Photometric Data | 35,425 lux 3,291 FC at 6.6' / 2 m (11° full on)
6502 lux 604 FC at 6.6' / 2 m (40° full on) | | Effects | Motorized Zoom: 11° to 40°
Electronic strobe
Variable dimming curve modes | | Color | Cool-white/daylight | | Control and Connectors | DMX Channel Modes: 2 (11 total channels)
7 x button control panel and LCD menu display
Smooth 16-bit pan and tilt movement
RDM (Remote Device Management)
DMX In/Out: 5-pin DMX
Power In/Out: powerCON TRUE1 | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Maximum 425 W | | Power Linking | Multiple unit power lining | | Operating Temperature | 5 to 113°F / -15 to 45°C | | Approvals | CE | | Ratings | IP30 | | Dimensions (L x W x H) | 13.3 x 9.0 x 18.3" / 337.8 x 228.6 x 465.6 mm | | Weight | 27.0 lb / 12.2 kg |
