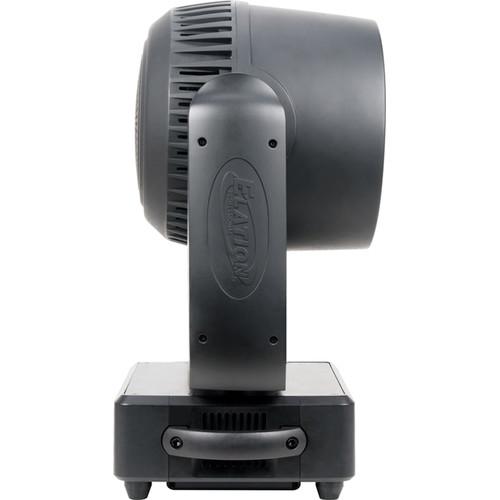

User Manual for Elation Professional FUZE WASH Z350 - RGBW LED Moving Head Light Click to enlarge the picture
Contents of the user manual for the Elation Professional FUZE WASH Z350 -
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
 |
User manual for the Elation Professional FUZE WASH Z350 - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

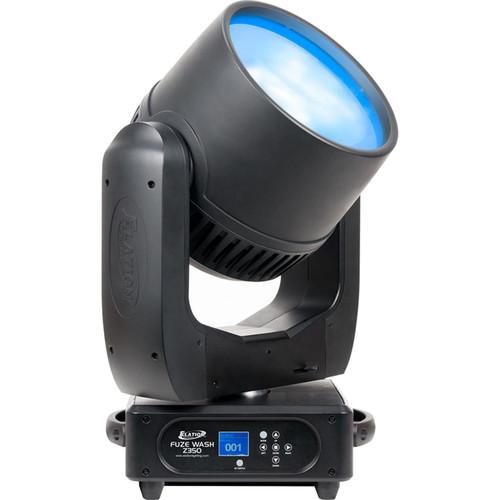

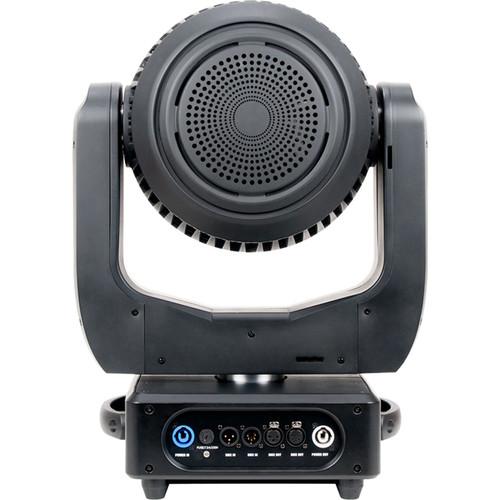

Product description The FUZE WASH Z350 from Elation Professional is a single-source PAR moving head luminaire with a 350W quad-color RGBW COB (chip-on-board) LED engine. It features a 12-53° motorized zoom, pan and tilt, RGBW color mixing, electronic strobe, and selectable dimming curve effects. It supports DMX and RDM (Remote Device Management) protocols and provides flicker-free operation for broadcast TV and film. Connections include 3-pin/5-pin XLR in/out and powerCON in/out connectors. The unit comes with an LCD menu display with a seven-button control panel. It runs on an auto-switching 100 to 240 VAC power supply and allows you to power link multiple units. - 350W RGBW COB LED moving head wash luminaire
- RGBW color mixing (red, green, blue, white)
- 12-53° motorized zoom range
- Standard, pulse, and random strobe controls
- 64 color presets and 14 unique color macros
- Multiple unit power linking
- RDM (Remote Device Management)
- 7-button control panel and LCD menu display
- Flicker-free operation for TV and film
UPC: 837874019735 In the Box Elation Professional FUZE WASH Z350 - RGBW LED Moving Head Light powerCON Power Cable 2 x Omega Brackets Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional FUZE WASH Z350 - RGBW LED Moving Head Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Fuze Wash Z350 Specs | Light Source | 1 x RGBW COB LED, 350 W | | Life Expectancy | 100,000 hours | | Illuminance | 7°, Full On: 26,240 lux (2438 fc) @ 9.8' (3 m)
55°, Full On: 1672 lux (155 fc) @ 9.8' / (3 m) | | Beam Angle | 12-53° | | Field Angle | 19-57° | | Zoom Adjustment | Motorized | | Dimming | Electronic | | Dimmer Curves | 5 x curves | | Shutter/Strobe | Electronic | | Pan Range | 630 / 540° | | Tilt Range | Not specified by manufacturer | | Movement Resolution | 8-bit, 16-bit | | Color Mixing | RGBI, RGBW, HSI | | Built-In Programs | Yes | | Master/Slave Support | Yes | | Flicker Free Operation | Yes | | Protocols | DMX, RDM | | DMX Connectors | Input: XLR 3-pin, XLR 5-pin
Output: XLR 3-pin, XLR 5-pin | | DMX Channel Modes | 15, 16, 17, or 19 channels | | Input Voltage | 110 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connection Type | Input: powerCON
Output: powerCON | | Power Linking | 120 V: 3 x units
240 V: 6 x units | | Power Consumption | 380 W | | IP Rating | IP30 | | Working Position | Vertical, Inverted, Horizontal | | Mounting | Omega bracket | | Operating Temperature | 5 to 113°F (-15 to 45°C) | | Display/Controls | LCD display with 7-button control panel | | Approvals and Certifications | CE, RoHs | | Dimensions (L x W x H) | 16.3 x 11.6 x 18.0" (414 x 294 x 461 mm) | | Weight | 45 lb (20.4 kg) | | | | Box Dimensions (LxWxH) | 26.0 x 20.0 x 15.0" |
