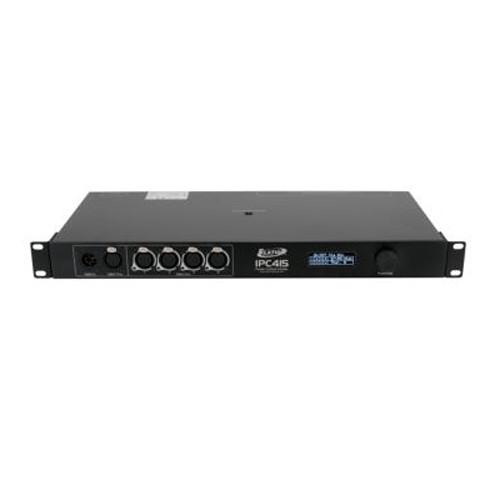

User Manual for Elation Professional IPC415-DMX Power Control Center Click to enlarge the picture
Contents of the user manual for the Elation Professional IPC415-DMX Power Control Center
- Product category: DMX Devices Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DMX Devices
|
User manual for the Elation Professional IPC415-DMX Power Control Center contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The IPC415-DMX Power Control Center from Elation Professional offers four powerCON outputs (15A max each), four 5-pin XLR DMX outputs, one 5-pin XLR DMX input, one 5-pin XLR DMX thru-put, and a multi-voltage universal auto switching 100-240 VAC power supply. The unit features an internal scheduler that switches on or off when a signal is lost or a cue is triggered from a DMX console. The ICP415 comes with ears for rack-mounting but it can also be mounted with an optional clamp via the unit's M10 rigging point at its center. - Benefits
-
- 2 x DMX control modes (1/4)
- Internal on/off scheduler
- 1 x 5-pin XLR DMX input
- 5-pin XLR DMX output (thru-put)
- 4 x 5-pin XLR DMX outputs
- 4 x powerCON 15 amp outputs (NAC3MPB-1)
- Main 20 amp power switch
- powerCON power input (NAC3MPA-1)
- 19" rackmount ears included
- M10 rigging center point for truss mounting (clamp not included)
UPC: 837874004007 In the Box Elation Professional IPC415-DMX Power Control Center Set Rack Ears Safety Cable Loop Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional IPC415-DMX Power Control Center in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional IPC415 Specs | Control and Connectors | 2 x DMX channel modes (1/4)
Push button / encoder wheel
Internal on/off scheduler
OLED control menu display
5-pin XLR DMX input
5-pin XLR DMX output (thru-put)
4 x 5-pin XLR DMX outputs
4 x powerCON 15 A outputs (NAC3MPB-1)
Main 20 amp power switch
powerCON power input (NAC3MPA-1) | | Electrical and Operating Requirements | 100-240 VAC, 50/60 Hz
7.0 W max power consumption (no devices connected)
Operating Temperature: 35 - 113°F (2 - 45°C) | | Approvals and Ratings | CE | | Dimensions (L x W x H) | 19 x 9.1 x 1.7" (482 x 232 x 44 mm) | | Weight | 6.6 lb (3.0 kg) |
