User Manual for Elation Professional KL Fresnel 4 50W Warm White LED Light Click to enlarge the picture
Contents of the user manual for the Elation Professional KL Fresnel 4 50W
- Product category: LED Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional LED Lights
 |
User manual for the Elation Professional KL Fresnel 4 50W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

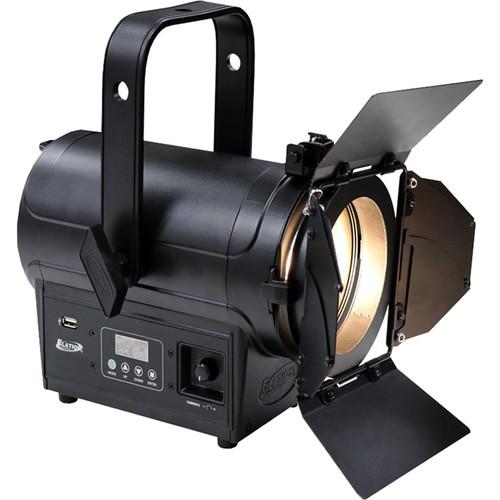

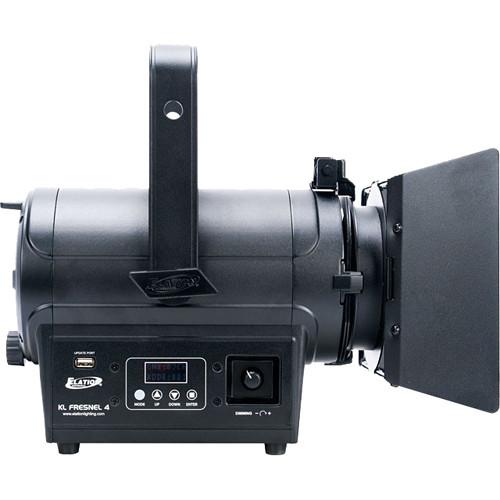

Product description With a fixed color temperature of 3000K and total output of 1900 lumens, this 50W KL Fresnel 4 LED Light from Elation Professional is a capable LED Fresnel fixture that provides a warm light tone without making your subjects sweat in the process. It offers flicker-free operation with a full dimming range from 0 to 100%, featuring five different modes that help you customize the dimming curve when fading the light in or out. Also offered is an adjustable beam angle of 14 to 30°, controllable via a spot-to-flood knob in the back, and a high CRI rating of 97 that helps preserve tonal accuracy. The KL Fresnel 4 allows for onboard adjustments with a knob and four buttons on one of its sides, plus a display so you can view your menu and settings. If DMX control is desired, you can instead connect an optional controller via the 5-pin XLR in and out ports in the back. Designed to be resilient, the LED light is rated to last 50,000 hours on average and can have its software upgraded via a USB slot. The fixture runs on universal 100-240 VAC power and accepts powerCON cables, and also includes a gel frame and barndoors so you can easily shape the look and feel of your light. -
- Warm white LED fixture with color temperature of 3000K and CRI of 97
- Fresnel lens allows for spot-to-flood beam angle adjustment from 14 to 30°
- Smooth 16-bit dimming from 0 to 100%, can be configured for different fade in and fade out curves
- Flicker-free operation suits this light for video shooting

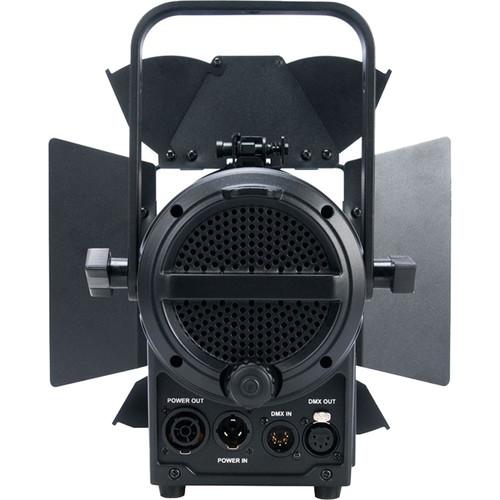

- In/out powerCON ports for powering, in/out 5-pin XLR slots for DMX control, and a USB slot for software updates
- Adjustable yoke with three different slots for simplified mounting
- Runs on universal 100-240 VAC power, at 50/60 Hz

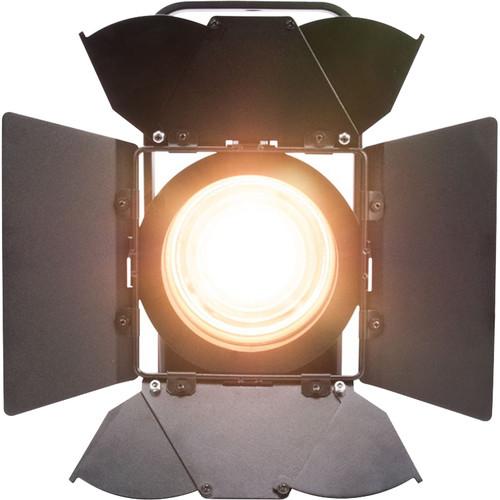

- Four-way barndoors and gel frame provided so you can easily shape your light
UPC: 837874005370 In the Box Elation Professional KL Fresnel 4 50W Warm White LED Light Gel Frame Barndoors Yoke powerCON TRUE1 Power Cable Fixture Safety Cable Barndoor Safety Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional KL Fresnel 4 50W Warm White LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional KL Fresnel 4 Specs | | | Beam Angle | 14 to 30° | | Color Temperature | 3000K | | Color Accuracy Standard | CRI 97 | | Dimming | Yes, 0 to 100% (Continuous) | | Housing Material | Metal | | Lumens | 1900 | | Photometrics | 14°:
635.1 fc / 6833.7 lux at 6.6' / 2.01 m
282.3 fc / 3037.6 lux at 9.8' / 2.99 m
158.8 fc / 1708.7 lux at 13.1' / 3.99 m
101.6 fc / 1093.2 lux at 16.4' / 5 m
30°:
166.4 fc / 1790.5 lux at 6.6' / 2.01 m
74 fc / 796.2 lux at 9.8' / 2.99 m
41.6 fc / 447.6 lux at 13.1' / 3.99 m
26.6 fc / 286.2 lux at 16.4' / 5 m | | Expected Lamp Life | 50000 Hours | | Fixture Dimensions | 7.9 x 11.4 x 13.6" / 20.1 x 28.9 x 34.5 cm | | Fixture Weight | 9 lb / 4.08 kg | | | | Battery Plate | None | | Power Input Connector | powerCON | | DMX Connector | 5-Pin XLR | | Power Output Connector | powerCON | | | | Remote Control Type | DMX | | Number of DMX Channel Modes | 4 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 50 W | | | | Certifications | CE, as per Manufacturer | | IP Rating | IP30 | | Operating Temperature | 5 to 113°F / -15 to 45°C | | | | Package Weight | 12.15 lb | | Box Dimensions (LxWxH) | 14.7 x 12.2 x 9.6" |
