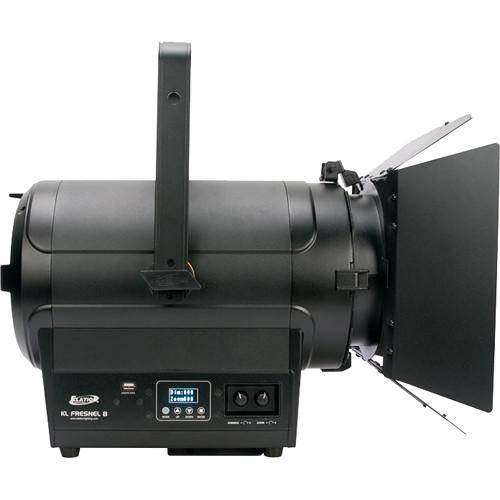

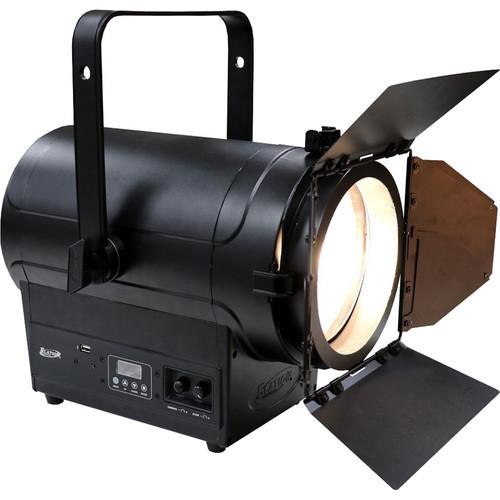

Product description With a fixed color temperature of 3000K and total output of 14,000 lumens, this 350W KL Fresnel 8 LED Light from Elation Professional is a capable LED Fresnel fixture that provides a warm, light tone without making your subjects sweat in the process. It offers flicker-free operation with a full dimming range from 0 to 100%, featuring five different modes that help you customize the dimming curve when fading the light in or out. Also offered is an adjustable beam angle of 11 to 57°, controllable via a spot-to-flood knob in the back, and a high CRI rating of 95 that helps preserve tonal accuracy. The KL Fresnel 8 allows for on-board adjustments with a knob and four buttons on one of its sides, plus a display so you can view your menu and settings. If DMX control is desired, you can instead connect an optional controller with either 3-pin or 5-pin XLR cables thanks to four in/out ports in the back. Designed to be resilient, the LED light is rated to last 50,000 hours on average and can have its software upgraded via a USB slot. The fixture runs on universal 100-240 VAC power and accepts powerCON cables, and also includes a gel frame and barndoors so you can easily shape the look and feel of your light. -
- Warm white LED fixture with color temperature of 3000K and CRI of 95

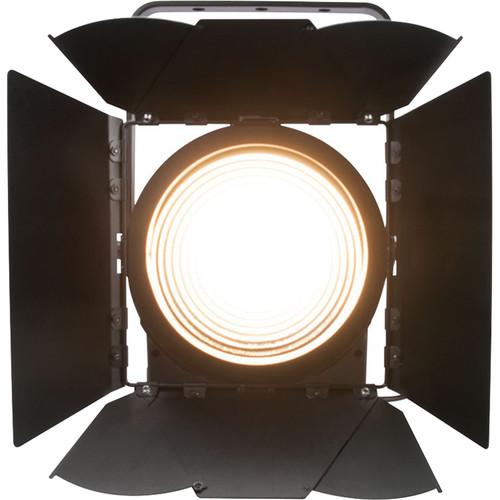

- Fresnel lens allows for spot-to-flood beam angle adjustment from 11 to 57°
- Smooth 16-bit dimming from 0 to 100%, can be configured for different fade in and fade out curves
- Flicker-free operation suits this light for video shooting

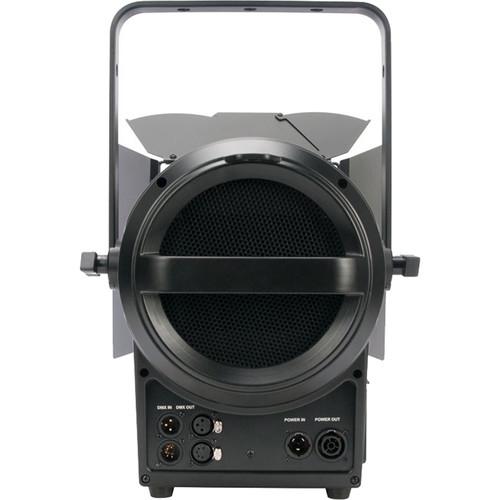

- DMX control possible with optional board, offers in/out slots for both 3-pin and 5-pin XLR cables
- In/out powerCON ports for powering and USB slot for software updates
- Adjustable yoke with three different slots for simplified mounting
- Runs on universal 100-240 VAC power, at 50/60 Hz
- Four-way barndoors and gel frame provided so you can easily shape your light
UPC: 837874005394 In the Box Elation Professional KL Fresnel 8 350W Warm White LED Light Gel Frame Barndoors Yoke powerCON TRUE1 Power Cable Fixture Safety Cable Barndoor Safety Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional KL Fresnel 8 350W Warm White LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional KL Fresnel 8 Specs | | | Beam Angle | 11 to 57° | | Color Temperature | 3000K | | Color Accuracy Standard | CRI 95 | | Dimming | Yes, 0 to 100% (Continuous) | | Housing Material | Metal | | Lumens | 14000 | | Photometrics | 11° at 3000K:
16,229.4 fc / 174,628.3 lux at 3.3' / 1.01 m
4057.3 fc / 43,656.6 lux at 6.6' / 2.01 m
1803.3 fc / 19,403.5 lux at 9.8' / 2.99 m
1014.3 fc / 10,913.9 lux at 13.1' / 3.99 m
649.2 fc / 6985.4 lux at 16.4' / 5 m
57° at 3000K:
1549.1 fc / 16,668.3 lux at 3.3' / 1.01 m
387.3 fc / 4167.4 lux at 6.6' / 2.01 m
172.1 fc / 1851.8 lux at 9.8' / 2.99 m
96.8 fc / 1041.6 lux at 13.1' / 3.99 m
62 fc / 667.1 lux at 16.4' / 5 m | | Expected Lamp Life | 50000 Hours | | Fixture Dimensions | 12.9 x 18.0 x 23.9" / 32.7 x 45.6 x 60.8 cm | | Fixture Weight | 18.52 lb / 8.4 kg | | | | Battery Plate | None | | Power Input Connector | powerCON | | DMX Connector | 3-Pin XLR, 5-Pin XLR | | Power Output Connector | powerCON | | | | Remote Control Type | DMX | | Number of DMX Channel Modes | 4 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 430 W | | | | Certifications | CE, as per Manufacturer | | IP Rating | IP30 | | Operating Temperature | 5 to 113°F / -15 to 45°C |
