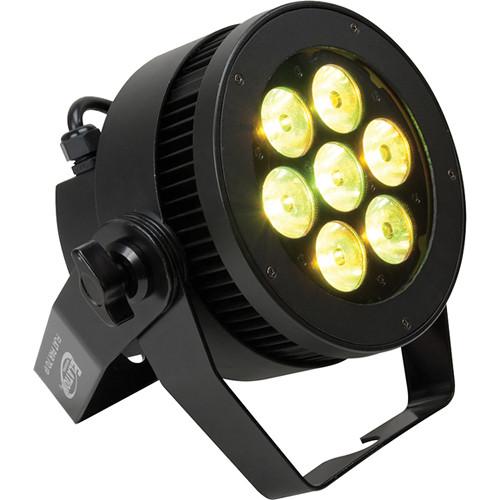

User Manual for Elation Professional Level Q7 IP Quad RGBW LED Lighting Fixture Click to enlarge the picture
Contents of the user manual for the Elation Professional Level Q7 IP Quad
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
|
User manual for the Elation Professional Level Q7 IP Quad contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The Level Q7 IP Quad RGBW LED Lighting Fixture from Elation Professional features seven 15W Quad color RGBW LEDs, 7° beam and 13° field angles, and flicker free operation for TV and film. It also provides color correction, electronic strobe and dimming. The light is rated at 100,000 hours LED life and consumes 127W at maximum power.
Designed for multiple unit power linking, the Level Q7 IP features a multi-voltage universal auto switching power supply. Its exterior is made of rugged die-cast aluminum and its base is rubber-padded with a dual yoke/floor stand. - IP65 rated water and dust resistant
- 4 DMX channel modes (4/5/7/9)
- Flicker free operation for TV and film
- Die-cast aluminum exterior
- Rubber padded base with dual yoke/floor stand
- Multiple unit power linking
UPC: 837874016062 In the Box Elation Professional Level Q7 IP Quad RGBW LED Lighting Fixture IP Power Cable IP 3-pin DMX Cable Safety Cable Mounting Bracket/Stand Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Level Q7 IP Quad RGBW LED Lighting Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Level Q7 IP Specs | Approvals | CE, cETLus | | Light Source | 7 x 15 W QUAD color RGBW LEDs | | Color Temperature | 2,700 - 7,200 K | | Photometric Data | 3636 LUX 388 FC @ 16.4' (5 m) | | IP Rating | 65 | | Strobe Rate | 1 to 18 fps | | Dimming Range | 0 to 100% | | Beam Angle | 7° | | Field Angle | 13° | | Rigging Points | Dual bracket for hanging or floor standing | | Material | Die-cast aluminum exterior | | Connectors | 1 x 3-pin XLR DMX input
1 x 3-pin XLR DMX output
1 x 3-pin powerCON power input
1 x 3-pin powerCON power output | | Operating Temperature | -13 to 113° F (-25 to 45° C) | | Power Consumption (max) | 127 W | | Power | 100 - 240 VAC, 50 / 60 Hz | | Dimensions (L x W x H) | 11.0 x 5.5 x 10.2" (279 x 140 x 260 mm) | | Weight | 9 lb (4 kg) | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 13.5 x 13.0 x 11.25" |
