User Manual for Elation Professional MIDICon PRO MIDI Lighting Controller Click to enlarge the picture
Contents of the user manual for the Elation Professional MIDICon PRO MIDI Lighting
- Product category: Lighting Consoles & Controllers Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional Lighting Consoles & Controllers
 |
User manual for the Elation Professional MIDICon PRO MIDI Lighting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

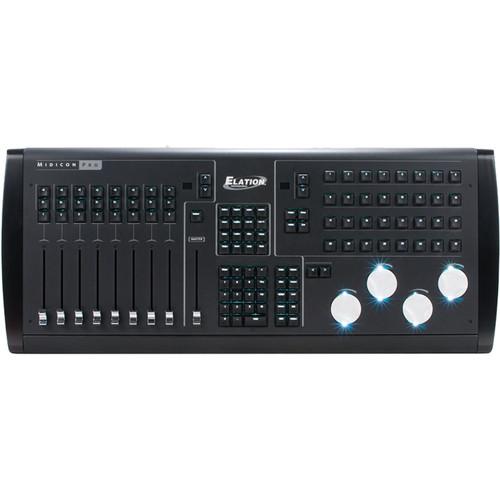

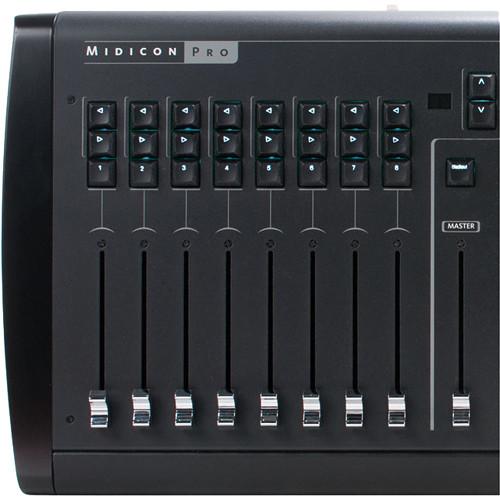

Product description What You Need to Know When Working with DMX Read More cetyfbsfabxyttbxeabbzsytxfyfabxewruf The MIDICon PRO MIDI Lighting Controller from Elation Professional features 9 touch-sensitive, motorized faders, 41 classic tactile keyboard keys, and 4 precise custom-weighted aluminum encoder wheels with push-in selection function, all with adjustable LED backlighting, and a leather-bound palm pad. Standard 5-pin MIDI in/out and a USB 2.0 Type-B input connection are also onboard, as is an internal 100-240 VAC auto-switching power supply. UPC: 837874018066 In the Box Elation Professional MIDICon PRO MIDI Lighting Controller Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional MIDICon PRO MIDI Lighting Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional MIDICON PRO Specs | Controls | 1 x Touch-sensitive motorized master fader
1 x Blackout button
2 x Page control keys
8 x Touch-sensitive motorized playback faders
Forward, reverse, and bump keys above each fader
4 x Aluminum encoder wheels with push-in selection
1 x 19-key numeric keypad
26 x Shortcut keys
32 x Matrix effect keys
4 x Matrix context keys | | Connectors | 1 x 5-pin DIN MIDI output
1 x 5-pin DIN MIDI input
1 x USB 2.0 Type-B port | | Electrical | 100-240 VAC, 50/60 Hz
35 W max power consumption | | Fuse | 1 A, 250 V slow blow, 5 x 20 mm | | Installation | Any flat surface | | Dimensions (L x W x H) | 30.96 x 13.17 x 3.15" (786.5 x 334.5 x 80 mm) | | Weight | 17 lb (7.7 kg) | | | | Package Weight | 26.5 lb | | Box Dimensions (LxWxH) | 36.5 x 18.8 x 9.7" |
