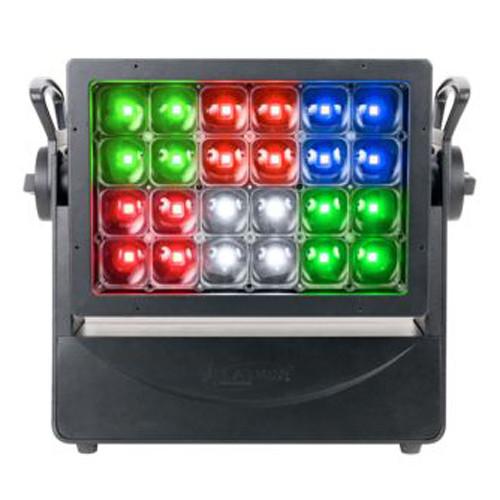

User Manual for Elation Professional Paladin Hybrid Strobe Wash Blinder with Motorized Zoom Click to enlarge the picture
Contents of the user manual for the Elation Professional Paladin Hybrid Strobe Wash
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
|
User manual for the Elation Professional Paladin Hybrid Strobe Wash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The Elation Professional Paladin is a professional IP65-rated, all-in-one hybrid strobe, wash, and blinder, with a motorized zoom. It is well suited for clubs, large-scale concerts, outdoor events, and film & TV production. This luminaire features 24 x 40W 4-in-1 RGBW LEDs, a 6° to 32° motorized zoom, manual tilt adjustment, pixel zone control, 64 color presets, 15 color macros, electronic strobe, and 16-bit dimming with variable dimming curve modes.The fixture offers DMX control and remote device management (RDM) protocol support and includes IP-rated 5-pin DMX inputs and outputs, as well as powerCON TRUE1 inputs and outputs. A 4-button LCD control display manual allows for easy onboard programming, while the multi-voltage universal auto-switching power supply ensures operation anywhere in the world. There are optional barn doors and egg crates available. The Elation Professional Paladin ships with a power cord, two omega brackets, and a safety cable. -
- IP65 rated strobe wash blinder luminaire
- 24 x 40W 4-in-1 RGBW LEDs
- Motorized zoom and manual tilt adjustment
- Pixel zone control
- 64 color presets and 15 program macros
- 16-bit dimming and variable dimming curves
- Flicker free for TV and film
- Adjustable refresh rate frequency and gamma
- Rugged die-cast aluminum exterior
- Optional barn doors and egg crate available
- Dual quick-lock omega bracket rigging option
UPC: 837874002676 In the Box Elation Professional Paladin Hybrid Strobe Wash Blinder with Motorized Zoom (RGBW) 2 x Omega Brackets Safety Cable Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Paladin Hybrid Strobe Wash Blinder with Motorized Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Paladin Specs | Source | 24 x 40 W 4-in-1 RGBW LEDs
50,000 hour average LED life | | Photometric Data | 79,252 lux 7362 FC @ 9.8' / 2 m (6° full on)
6848 lux 636 FC @ 9.8' / 2 m (32° full on) | | Color | Red, green, blue, white (RGBW) | | Effects | Pixel zone control
64 color presets and 15 color macros
Electronic strobe
16-bit dimming and variable dimming curve modes | | Control and Connectors | Motorized Zoom: 6 to 32°
Tilt Movement: 210° manual
Multiple DMX Channel Modes: 33 total channels
Adjustable refresh rate and gamma brightness
4 button control panel and LCD menu display
RDM (remote device management)
DMX In/Out: 2 x 5-pin DIN (IP rated)
Power In/Out: 2 x powerCON TRUE1 | | Electrical and Environmental | 100 to 240 VAC, 50 / 60 Hz
Power Consumption: 990 W maximum
5 to 113°F / -15 to 45°C
| | Approvals and Ratings | CE, cETLus, IP65 | | Dimensions (L x W x H) | 16.4 x 11.2 x 16.0" / 416.6 x 284.5 x 406.4 mm | | Weight | 46.0 lb / 20.9 kg | | | | Package Weight | 56.4 lb | | Box Dimensions (LxWxH) | 23.0 x 22.4 x 13.5" |
