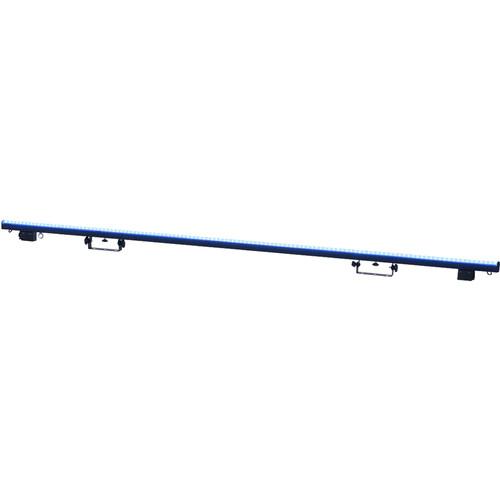

Product description The 6.6', IP65 outdoor-rated Elation Professional Pixel Bar 120IP is a pixel-mapping, RGB LED linear fixture designed for showing video and/or motion graphics in open-air events, music festivals, and more. It features 120 tri-color RGB (red, green, blue) SMD LEDs with a 16mm pixel pitch and a 120° beam angle, and is compatible with Art-Net, Kling-Net, and sACN control protocols.The Pixel Bar 120IP comes with a set of square and rounded frost filters to help shape the light output of the fixture. A magnetic system on the end caps allows for connecting multiple bars together and ensures seamless end-to-end pixel spacing for smooth visuals.The unit is powered and controlled by the Pixel Driver 4000 processor (available separately) via a proprietary IP-rated combo cable (available separately), which supplies data and power. - Key Features
-
- 6.6' pixel-mapping linear fixture with 120 tri-color RGB SMD LEDs
- For showing video and/or motion graphics
- Lightweight IP65-rated aluminum housing for use outdoors or in wet environments
- 16mm pixel pitch and 120° beam angle
- Includes square frost lens and rounded frost lens
- Flicker-free operation for video, broadcast TV, and film applications
- Magnetic end caps for seamless end-to-end pixel spacing
- Integrated adjustable mounting bracket and safety cable loop
- Powered and controlled via Pixel Driver 4000 processor (available separately)
- Control a maximum of 4080 pixels via Kling-Net protocol, and a maximum of 680 pixels via Art-Net and sACN protocols
- Requires proprietary IP-rated 4-pin combo cable to supply data and power (available separately)
UPC: 837874006025 In the Box Elation Professional Pixel Bar 120IP IP65 Pixel-Mapping RGB LED Linear Fixture (6.6') Square Frost Lens Rounded Frost Lens Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Pixel Bar 120IP IP65 Pixel-Mapping RGB LED Linear Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Pixel Bar 120IP Specs | Light Source | 120 x Tri-color RGB (red, green, blue) SMD LEDs | | Viewing Angle | 120° | | Pixel Pitch | 0.62" / 16 mm | | PWM Frequency | 44 kHz | | Control | Control of 4080 pixels (maximum) via Kling-Net protocol
Control of 680 pixels (maximum) via Art-Net and sACN protocols
Requires Pixel Driver 4000 controller unit (available separately)
Requires proprietary IP-rated 4-pin combo cable to supply data and power (available separately) | | Power | Provided by Pixel Driver 4000 unit (available separately) | | Physical Linking | Magnetic end caps
Seamless end-to-end spacing | | Construction | Housing: Aluminum | | IP Rating | IP65: Rated as dust-tight and protected against water projected from a nozzle | | Length | 6.6' / 2.0 m | | Weight | Not specified by manufacturer |
