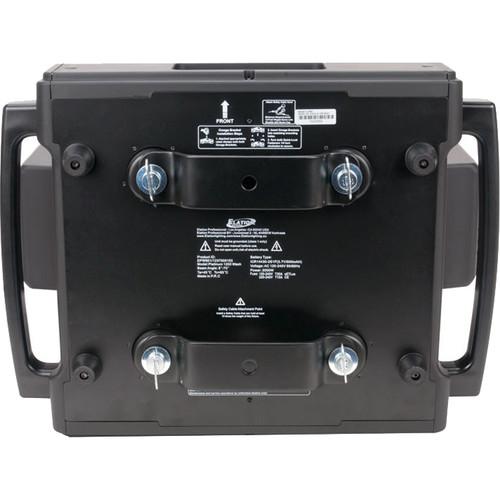

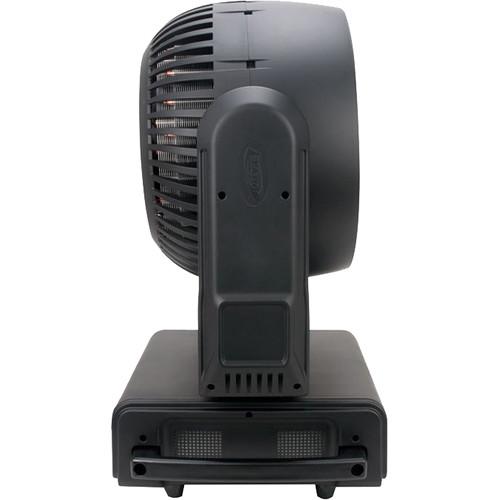

User Manual for Elation Professional Platinum 1200 Wash LED Moving Head Luminaire Click to enlarge the picture
Contents of the user manual for the Elation Professional Platinum 1200 Wash LED
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
 |
User manual for the Elation Professional Platinum 1200 Wash LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

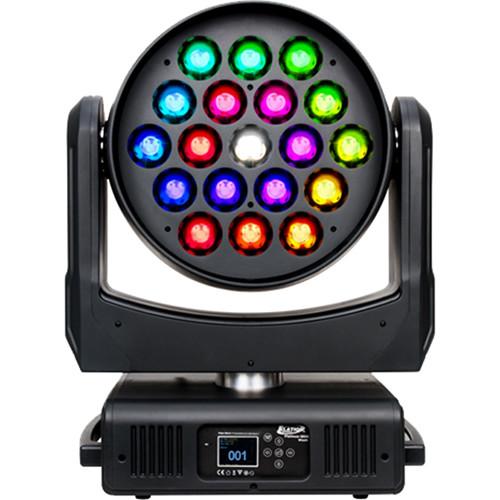

Product description The Platinum 1200 Wash LED Moving Head Luminaire from Elation Professional comes with nineteen 60W Osram multi-chip RGBW LEDs for producing color washes. The Platinum 1200 features a beam angle of 8 to 77° with motorized zoom, 8-/16-bit color mixing, and full pixel and pixel ring control. It comes with a powerCON 32A power input, a 5-pin XLR, and RJ45 etherCON in/out connectors. In addition, the Platinum 1200 also features a 6-button, full color, 180° reversible menu display and can be powered via a multi-voltage universal auto-switching power supply (100 to 240 VAC). - Enhanced cooling and movement control systems
- RGBW color mixing, full pixel, and pixel ring control
- Linear color temperature presets (2700 to 8000K)
- Color-pixel ring, color preset, and chase macro effects
- Electronic strobe, pulse, and selectable dimming curve modes
- Adjustable LED refresh rate and gamma brightness for flicker-free operation for TV and films
- DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support
- 8-/16-bit resolution adjustable movement
In the Box Elation Professional Platinum 1200 Wash LED Moving Head Luminaire Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Platinum 1200 Wash LED Moving Head Luminaire in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Platinum 1200 Wash Specs | Lamp | 19 x 60 W Osram multi-chip LEDs | | Lamp Life | 50,000 hours | | Beam Angle | 8 to 77° | | Photometric Data | 41,730 lux, 3,877 FC @ 16.4' (5 m) (8° minimum zoom) Full ON
3,637 lux, 338 FC @ 16.4' (5m) (77° minimum zoom) Full ON | | Color | RGBW
Color Temperature Presets: 2700 to 8000K | | Connectors | 5-pin XLR DMX in/out
RJ45 etherCON in/out | | DMX Channels | 3 x DMX channel modes (93 total channels) | | Refresh Rate | 900 to 25,000 Hz | | Gamma | Gamma Brightness: 2.0, 2.2, 2.4, 2.8 | | Control Panel | 6-button touch control panel | | Display | Full color 180° reversible LCD menu display | | Power Connector | powerCON 32 A power in | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | 2000 W maximum | | Operating Temperature | 14 to 113°F (-10 to 45°C) | | Approvals | CE, IP20 | | Dimensions (L x W x H) | 21.0 x 16.1 x 25.9" (533 x 410 x 658 mm) | | Weight | 86.0 lb (39 kg) |
