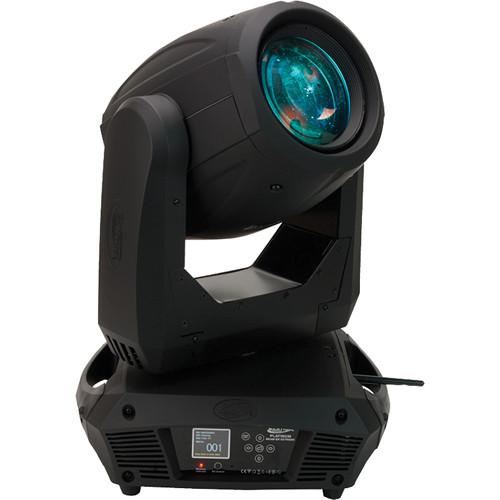

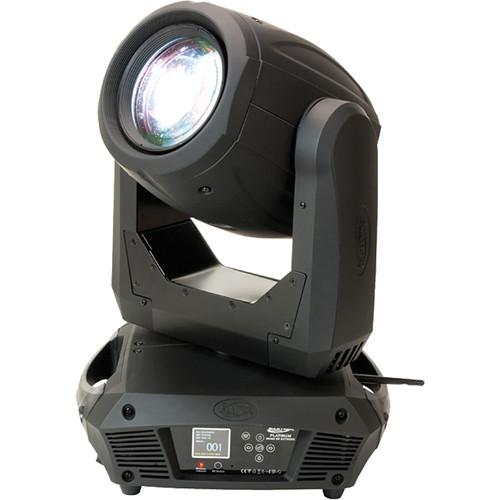

Product description The Platinum Beam 5R Extreme from Elation Professional is an ACL/beam moving head lighting effect fixture. The 5R Extreme features the Philips 189W MSD Platinum 5R lamp. The Platinum 5R Extreme comes with a built-in EWDMX wireless DMX receiver which uses FHSS technology. The unit offers remote focus which allows sharp ACL projections. The Platinum Beam 5R Extreme comes with a gobo wheel that has 8 interchangeable, rotating gobos. It also features a color wheel with 12 dichroic colors, including white. The data control input is made via 3 pin and 5 pin DMX connectors. - Built-in EWDMX wireless DMX receiver
- 12 dichroic colors and 8 gobos

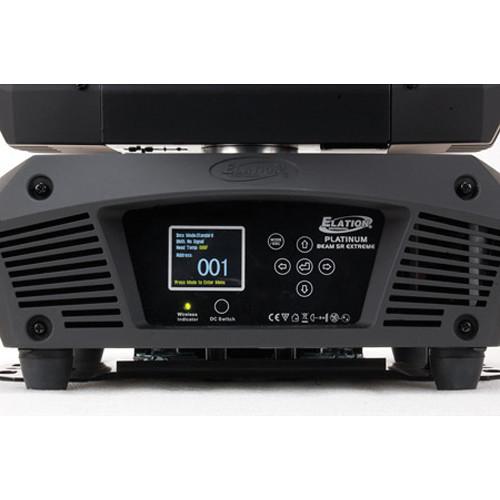

- 6 button touch control panel
- Philips MSD Platinum 5R lamp
- Microphone for sound activated programs
- Full color 180° reversible menu display
- Rechargeable backup battery for menu display
- Stand alone operation with master/slave function
UPC: 837874016017 In the Box Elation Professional Platinum Beam 5R Extreme Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Platinum Beam 5R Extreme in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Platinum Beam 5R Extreme... Specs | | | Type | MSD Platinum 5R (Philips) | | Wattage | 189 W | | Lifetime | 2,000 hours | | Color Temperature | 8,000 K | | Luminous Flux | 7,950 Lm | | CRI | >75 | | Lux | 100,000 Lux @ 49.2' (15 m) @ 3° | | | | Beam Angle | 1 to 3° | | Lenses | Hardened and tempered, anti-reflex coating | | Colors | 12 Static dichroic colors plus white | | Gobos | 1 Gobo wheel with 8 interchangeable rotating gobos
Size: OD 0.55" (14 mm), ID 0.24" (6 mm) | | Prism | 8 Facet rotating/indexing prisms | | Dimmer | Mechanical dimming: 0% - 100% | | Focus | Motorized | | Channels | 3 DMX channel modes (12 / 14 / 18) | | | | Pan Movement | 540°/630° | | Tilt | 265° | | Operating Temperature | -13 to 113° F(-25 to 45˚ C) | | | | Inputs | 1 x 3-Pin XLR male, DMX

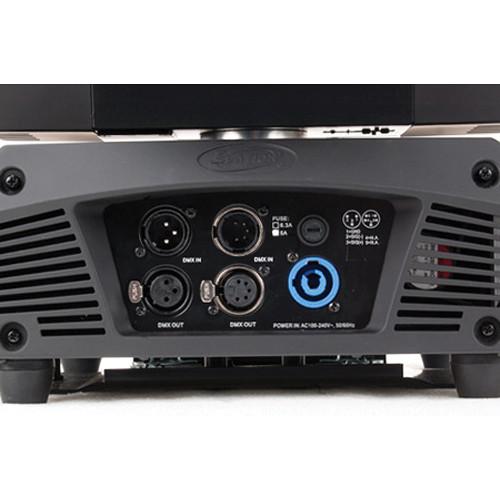

1 x 5-Pin XLR male, DMX
1 x powerCON, power | | Outputs | 1 x 3-Pin XLR female, DMX
1 x 5-Pin XLR female, DMX | | | | Power Requirements | 120 - 240 VAC, 50/60 Hz | | Power Consumption | 350 W (max) | | | | Dimensions (L x W x H) | 8.9 x 12.2 x 16.5" (22.5 x 31 x 42 cm) | | Weight | 39.7 lb (18 kg) | | | | Package Weight | 55.0 lb | | Box Dimensions (LxWxH) | 24.5 x 18.45 x 16.7" |
