User Manual for Elation Professional Platinum BX Beam Luminaire Click to enlarge the picture
Contents of the user manual for the Elation Professional Platinum BX Beam Luminaire
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
|
User manual for the Elation Professional Platinum BX Beam Luminaire contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

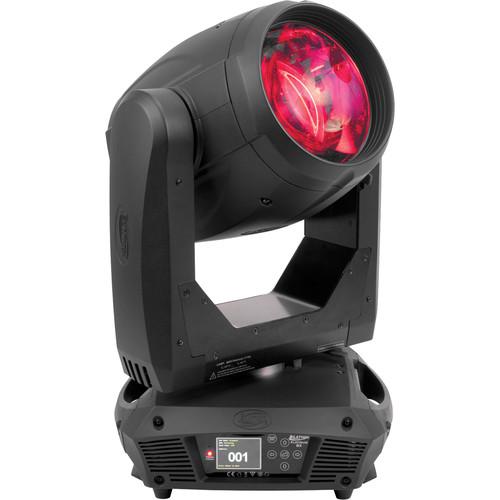

Product description The Platinum BX from Elation Professional is a powerful beam luminaire that features a Phillips MSD Platinum 17 RA 350W lamp. It can be used in several environments for lighting applications such as live stage, theater, DJ setups, uplighting, and more. The Platinum BX features 15,000 total lumens, a 3° beam, and 10 dichroic colors including UV, CTO, CTB, and white. In addition, there are 8 rotating interchangeable and 13 static-stamped indexing gobos. Other features include a rotating 8-facet prism, a frost filter, 5-pin DMX in/out connectors, locking powerCON in/out connectors, and RJ45 Ethernet (Art-Net) in/out connectors. - Six-button control full-color 180° reversible menu display
- 575W max power consumption
- Multi-voltage universal auto switching power supply (100 to 240 VAC)
In the Box Elation Professional Platinum BX Beam Luminaire 2 x Omega Brackets 5-Pin DMX Cable Safety Cable powerCON Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Platinum BX Beam Luminaire in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Platinum BX Specs | Lamps | Phillips MSD Platinum 17 RA 350 W lamp | | Lamp Lifetime | 1,500 hour average lamp life | | Photometric Data | 15,000 total lumens, 6,900K, 85 CRI
219,400 LUX 20,382 FC @ 49.2' (15m) (3° full on)
129,400 LUX 12,021 FC @ 65.6' (20m) (3° full on)
84,680 LUX 7,867 FC @ 82' (25m) (3° full on) | | Effects | 8-facet rotating prism and 16 prism macros
Frost filter
Strobe: 1-18 fps
Dimming: 0% - 100% | | Color | 10 dichroic colors including UV, CTB, CTO, + white | | Gobos | 2x gobo wheels
8x interchangeable / rotating / indexing gobos
13x static-stamped / indexing gobos | | Control Connections | RDM (remote device management)
6 button touch control panel
8 / 16-bit resolution adjustable movement | | DMX Channel Modes | 3 channel modes 14/16/22 | | RDM | Yes (remote device management) | | DMX Connectors | 5-pin DMX in and out connectors | | LCD | Full color 180° reversible LCD menu display | | Ethernet | RJ45 in/out (Art-Net) | | Power Connector | powerCON in/out | | Electrical | 100-240 VAC - 50/60 Hz | | Power Consumption | 575 W maximum power | | Thermal | -13 to 113°F (-25 to 45°C) | | Approvals and Ratings | CE | cETLus | RoHs | IP20 | | Working Position | Flat surface / inverted (180°) | | Dimensions (L x W x H) | 14.97 x 14.58 x 23.13" (380 x 370 x 588 mm) | | Weight | 60 lb (27 kg) |
