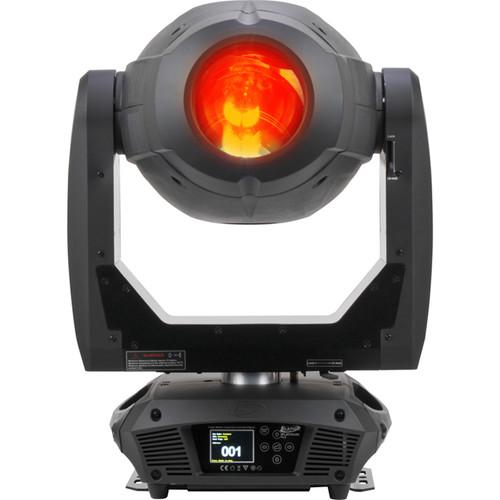

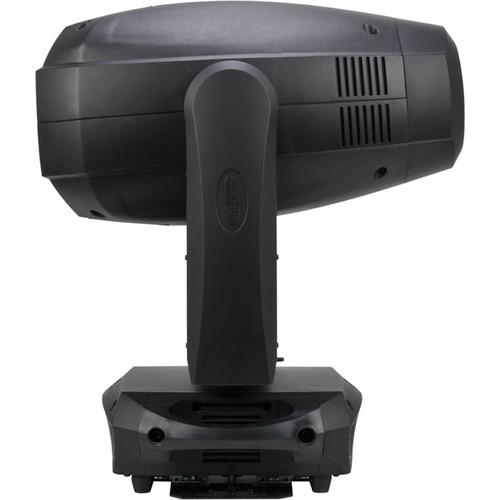

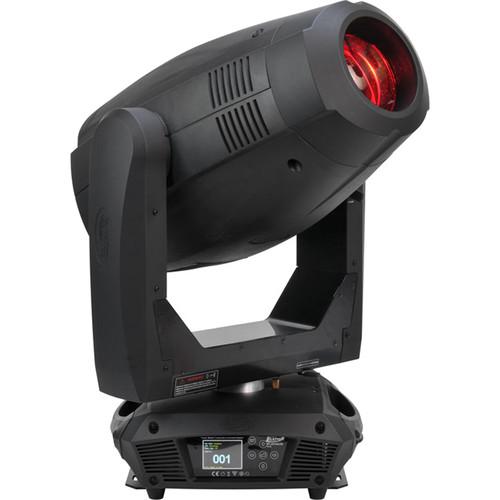

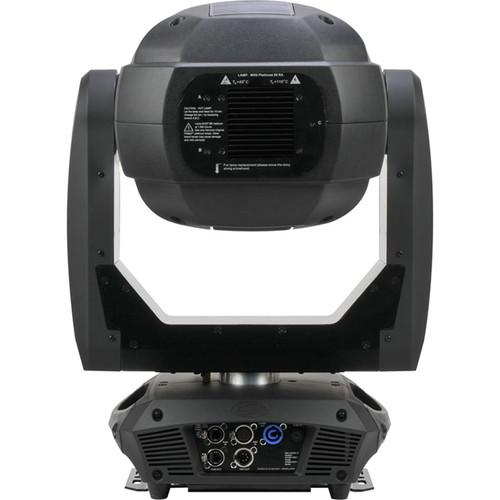

Product description The Platinum FLX from Elation Professional is a hybrid 3-in-1 moving head luminaire that can be utilized as a beam, spot, or wash fixture. It features a Philips MSD Platinum 20R 470W 80CRI lamp with 7,800K color temperature and 23,000 lumens output. The fixture features 1.8 to 18° zoom in beam mode, 2.9 to 25° zoom in spot mode, and 6 to 42° zoom in wash mode. It includes ten dichroic colors including UV, CTB, plus white (open) eight rotating-interchangeable and six static-stamped gobos, 6-way linear, and 8-facet rotating prisms. The fixture also features full CMY color mixing plus linear CTO color correction.Platinum FLX can be controlled via three DMX channel modes and supports RDM (Remote Device Management), Kling-Net, and Art-Net. Connections include 5-pin XLR in/out for DMX, powerCON in and out, and RJ45 Ethernet in/out for communication/control. The fixture also has a six-button control panel and full-color 180° reversible menu display. Powered via a multi-voltage universal auto switching power supply (100-240 VAC), the Platinum FLX consumes a maximum of 740W. - Hybrid beam, spot, and wash 3-in-1 moving head luminaire
- Philips MSD Platinum 20R 470W 80CRI lamp
- 23,000 lumens (total), 7,800K, average 1,500 hours LED life
- 1.8 to 18° beam, 2.9 to 25° spot, and 6 to 42° wash zoom
- Frost filter and animation effects
- 6-way linear rotating prism and 8-facet circular rotating prism
- Ten dichroic colors including UV and CTB
- Full CMY color mixing and linear CTO color correction
- Eight rotating, interchangeable gobos and 6 static-stamped gobos
- RDM, Kling-NET, Art-Net (DMX over Ethernet), and sACN support
UPC: 837874018448 In the Box Elation Professional Platinum FLX Hybrid 3-in-1 Beam / Spot / Wash Moving Head Fixture 2 x Omega Bracket 5-Pin DMX Cable powerCON Cable Safety Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Platinum FLX Hybrid 3-in-1 Beam Spot Wash Moving Head Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Platinum FLX Specs | Light Source | Philips MSD Platinum 20R 470 W lamp | | Life Expectancy | Approximately 1,500 hours*
*Bulb life may vary depending on several factors including but not limited to environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming. | | Color Temperature | 7800K | | CRI | 80 | | Beam Diameter | Beam Mode
At 1.8° (Minimum): 1.0' (0.31 m) @ 32.8' (10 m), 2' (0.62 m) @ 65.6' (20 m)
At 18° (Maximum): 10.4' (3.16 m) @ 32.8' (10 m), 20.7' (6.32 m) @ 65.6' (20 m)
Spot Mode
At 2.9° (Minimum): 2' (0.6 m) @ 32.8' (10 m), 3.3' (1.0 m) @ 65.6' (20 m)
At 25° (Maximum): 19.9' (6.08 m) @ 32.8' (10 m), 33.5' (10.2 m) @ 65.6' (20 m) | | Photometric Data | Beam Mode:
At 1.8°, Full On: 360,000 lux (33,444 fc) @ 32.8' (10 m), 90,100 lux (8,370 fc) @ 65.6' (20 m)
At 18°, Full On: 12,000 lux (1,115 fc) @ 32.8' (10 m), 3,100 lux (288 fc) @ 65.6' (20 m)
Spot Mode:
At 2.9°, Full On: 165,500 lux (15,375 fc) @ 32.8' (10 m), 59,020 lux (5,483 fc) @ 65.6' (20 m)
At 25°, Full On: 2,657 lux (247 fc) @ 32.8' (10 m), 907 lux (84 fc) @ 65.6' (20 m) | | Effects | 6-way linear and 8-facet rotating prisms
Bi-directional animation effect
Strobe and electronic dimming
Zoom, iris, and wash frost filter
Animation wheel | | Color | 10 dichroic colors including UV and CTB
Linear CTO color correction | | Gobos | 2 x Gobo wheels
8 x Interchangeable-rotating / indexing gobos
6 x Static-stamped gobos (indexing wheel) | | Movement Resolution | 8-bit / 16-bit | | Protocols | DMX512, RDM, Art-Net, Kling-Net | | Display/Controls | Full-color 180° reversible LCD menu display with 6-button touch control panel | | DMX Connectors | Input: XLR 5-pin
Output: XLR 5-pin | | DMX Channel Modes | 3 x Channel Modes: 24 / 26 / 37 | | Ethernet Connector | Input: RJ45 (Kling-Net, Art-Net, sACN)
Output: RJ45 (Kling-Net, Art-Net, sACN) | | Input Voltage | 100 to 240 VAC, 50/60 Hz | | Power Connectors | Input: powerCON
Output: powerCON | | Maximum Power Consumption | 740 W | | Thermal | 14 to 113°F (-10 to 45°C) | | Approvals and Ratings | CE, cETLus | | IP Rating | IP20 | | Mounting | Rigging (clamps not included) | | Working Position | Flat surface / inverted (180°) | | Dimensions (L x W x H) | 18.3 x 20.9 x 30" (466 x 532 x 762 mm) | | Weight | 75 lb (34 kg) | | | | Box Dimensions (LxWxH) | 35.0 x 23.0 x 18.5" |
