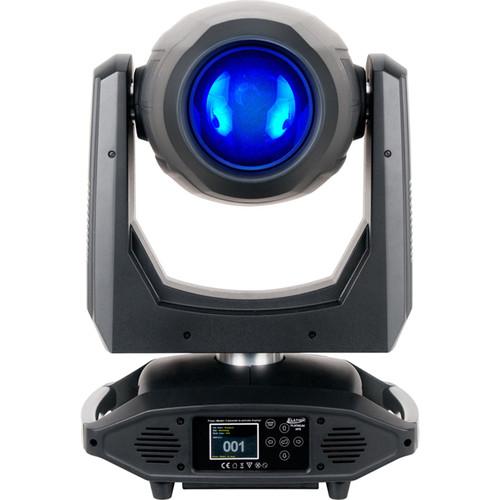

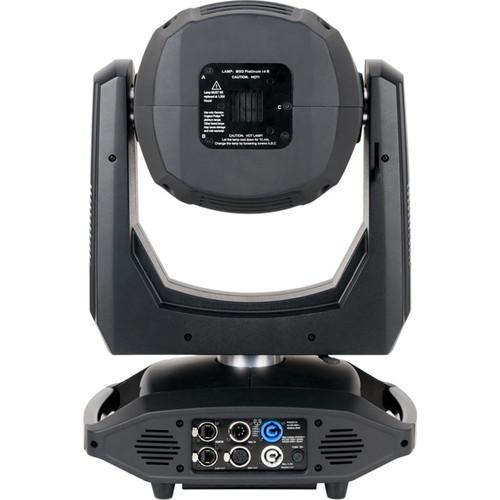

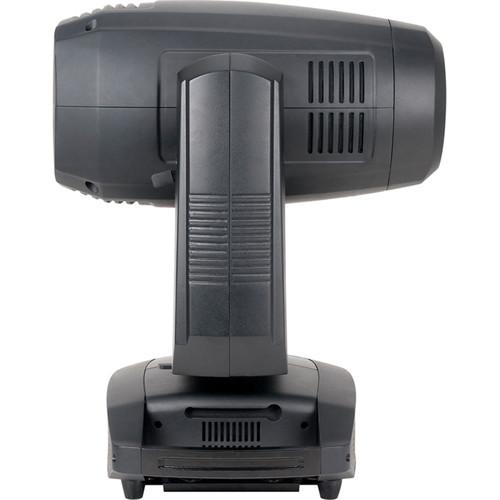

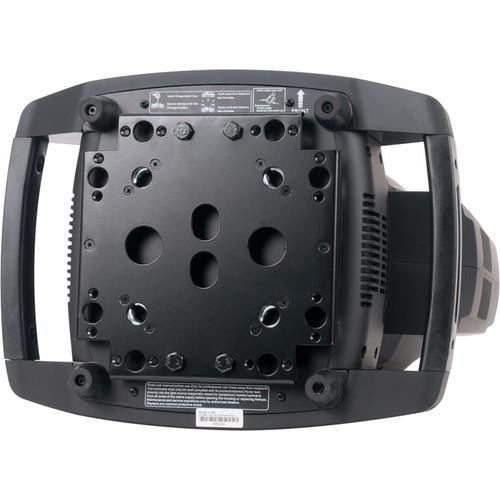

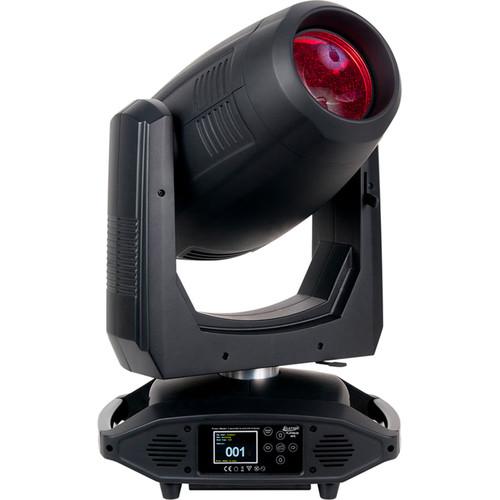

Product description The Platinum HFX from Elation Professional is a hybrid 3-in-1 moving head light that can be utilized as a beam, spot, or wash fixture. It features a Philips MSD Platinum 14R 280W 80 CRI lamp with a 7,800K color temperature and a 12,000 lumen output. The fixture features 2.3° to 15° zoom in beam mode, 3° to 22° zoom in spot mode, and 10° to 34° zoom in wash mode. The color wheel features thirteen dichroic colors including UV, quad color (RGBY), and CTO & CTB color correction (color temperature orange and blue). The two gobo wheels allow for a multitude of patterns with eight interchangeable/rotating/indexing gobos on Wheel 1 and twelve static-stamped gobos on Wheel 2. The gobos can be altered using the three prisms: a 6-facet linear rotating prism, an 8-facet circular rotating prism, a 10-facet static prism, or a combination of two via the prism-morphing effect.
Platinum HFX has three DMX channel modes (17, 19, 26) and supports RDM (Remote Device Management), Kling-Net, and Art-Net. Connections include XLR 5-pin input and output for DMX, powerCON in and out, and RJ45 Ethernet in/out for Art-Net and Kling-Net. The fixture has a six-button control panel and a full-color 180°-reversible menu display. This unit is powered via a multi-voltage, auto-switching power supply (100-240 VAC) and consumes a maximum of 450W. It ships with a pair of Omega brackets, a 5-pin DMX cable, a powerCON cable, and a safety cable. Features - 3-in-1 hybrid beam/spot/wash moving head luminaire
- Beam Zoom: 2.3° - 15° | Spot Zoom: 3° - 22° | Wash Zoom: 10° - 34°
- Philips MSD Platinum 14R: 280W 80 CRI lamp
- 12,000 lumens (total); 7,800K; 1,500 hours average bulb life
- 10-facet static prism, 8-facet circular rotating prism, and 6-facet linear rotating prism
- Prism morphing allows for the use of a combination of the prism effects
- Thirteen dichroic colors including UV, quad color (RGBY)
- CTO and CTB color correction
- 8 interchangeable/rotating/indexing gobos and 12 static-stamped gobos
- Independent color and gobo wheel rotation
- Strobe, electronic dimming (with theatrical dim outs), zoom, iris, and wash frost filter effects
- RDM, Kling-Net, and Art-Net support
UPC: 837874019193 In the Box Elation Professional Platinum HFX - Hybrid 3-in-1 Beam/Spot/Wash Moving Head Light 2 x Omega Brackets 5-Pin DMX Cable powerCON Cable Safety Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Platinum HFX - Hybrid 3-in-1 Beam Spot Wash Moving Head Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Platinum HFX Specs | Light Source | Philips MSD Platinum 14R lamp; 280 W; 12,000 total lumens; 7,800K; 80 CRI | | Life Expectancy | 1,500 hours average | | Beam Angle | Beam Mode: 2.3 - 15°
Spot Mode: 3.0 - 22°
Wash Mode: 10 - 34° | | Photometric Data | Beam Mode (Full On)
2.3° @ 49.2' (15.0 m): 125,800 lux (11,687 fc) | Beam Diameter: 3.8' (1.16 m)
15.7° @ 16.4' (5.0 m): 40,320 lux (3,746 fc) | Beam Diameter: 9.1' (2.76 m) Spot Mode (Full On):
3.0° @ 49.2' (15.0 m): 13,375 lux (1,243 fc) | Beam Diameter: 4.9' (1.5 m)
22.2° @ 16.4' (5.0 m): 3,575 lux (332 fc) | Beam Diameter: 13.1' (4.0 m)
Wash Mode (Full On):
34.7° @ 49.2' (15.0 m): 812 lux (75 fc) @ 16.4' (5 m) | Beam Diameter: 6.2' (1.88 m)
10.8° @ 16.4' (5.0 m): 11,500 lux (1,068 fc) @ 49.2' (15 m) | Beam Diameter: 20.3' (6.2 m) | | Color Wheel | 13 x Dichroic Colors: red, blue, green, yellow, pink, orange, aqua, magenta, quad color (RGBY), CTO, CTB, and UV
Plus white/open
Continuous scroll at variable speeds | | Gobo Wheel | Wheel 1:
8 x interchangeable/indexing/rotating gobos
Continuous gobo rotation in either direction and shake effect
Wheel 2:
12 x static-stamped gobos (indexing wheel)
Gobo wheel rotation (scrolling through gobos) and shake effect | | Prism Type | 6-facet linear rotating
8-facet circular rotating
10-facet static | | Pan & Tilt Range | Pan: 540° / 630°
Tilt: 270°
Movement Resolution: 8-bit or 16-bit | | Special Functions | Strobe, random strobe, pulse
Zoom, iris, and wash frost filter
Focus and auto focus
Blackout on move
Various individual resets | | Built-In Programs | Yes | | Protocols | DMX512, RDM, Art-Net, Kling-Net | | Connectors | DMX Input: XLR 5-pin
DMX Output: XLR 5-pin
Ethernet Input: RJ45 (Art-Net and Kling-Net)
Ethernet Output: RJ45 (Art-Net and Kling-Net) | | DMX Channel Modes | 3 x Modes: 17 / 19 / 26 channels | | Display/Controls | 6-button touch control panel
Full-color 180°-reversible LCD menu display | | Input Voltage Range | 100 to 240 VAC, 50/60 Hz | | Power Connectors | Input: powerCON
Output: powerCON | | Power Linking | Yes | | Power Consumption | Maximum: 450 W | | Operating Temperature | 14 to 113°F (-10 to 45°C) | | Approvals and Ratings | CE, cETLus, IP20 | | Dimensions (L x W x H) | 16.0 x 11.5 x 27.0" (40.6 x 29.2 x 76.2 cm) | | Weight | 50.0 lb (22.7 kg) | | | | Box Dimensions (LxWxH) | 30.0 x 20.0 x 16.0" |
