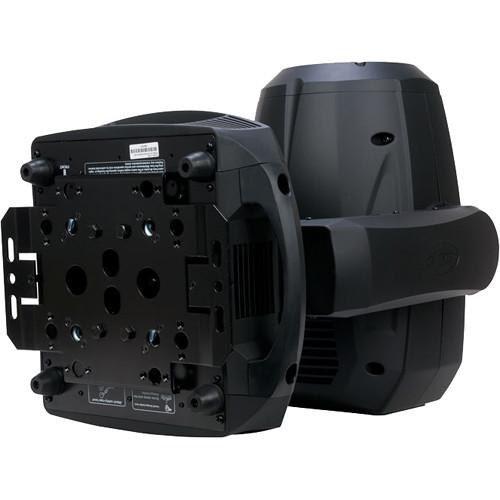

Product description The Platinum Profile LED Fixture from Elation Professional is a profile / framing shutter LED spot luminaire with a 180W LED engine, a 9,000-lumen flux, and an 18° beam angle. It offers four rotating framing shutter blades, two color wheels with a total of 11 dichroic colors (including UV & CTO), and two gobo wheels: one with seven interchangeable rotating-indexing gobos and one with seven static-stamped gobos. Also featured are a three-facet rotating prism, a frost filter, a mechanical iris, motorized focus, and 8- & 16-bit resolution adjustable movement.

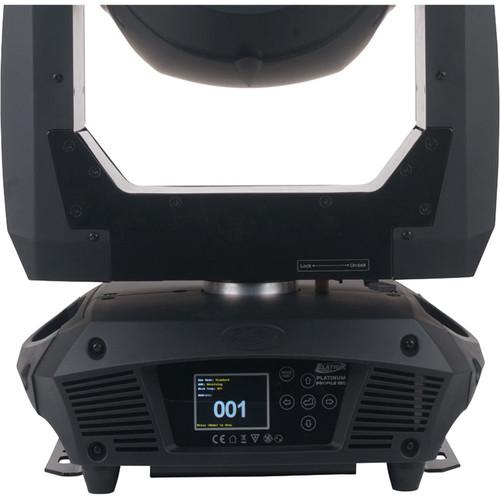

The Platinum Profile incorporates a six-button control panel and a full-color 180°-reversible menu display. It features RJ45 as well as five-pin XLR connectors and supports RDM (Remote Device Management) and Art-Net protocols. Flicker-free operation makes the unit suitable for broadcast TV and film. Three DMX channel modes (24, 26, and 36 channels) enable you to control varying levels of features.
The fixture features a powerCON input and an internal auto-switching power supply. It is compatible with 100 - 240 VAC outlets and has a maximum power consumption of 250W. The Platinum Profile can be mounted either upright or inverted (180°) using the included Omega brackets (clamps sold separately). - 8- & 16-bit resolution adjustable movement
- Electronic dimming & strobe
- Two color wheels and two gobo wheels
- Supports RDM (Remote Device Management) and Art-Net protocols
- Flicker-free operation for TV and film
- Full-color, 180°-reversible LCD menu display
UPC: 837874017793 In the Box Elation Professional Platinum Profile LED Fixture 2 x Omega Brackets 5-pin DMX Cable powerCON Cable Safety Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Platinum Profile LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Platinum Profile LED Specs | Lamp | 1 x 180 W LED engine | | Average Lamp Life | 20,000 h | | Beam Angle | 18° | | Color Temperature | 6,500K | | CRI | >85 | | Photometric Data | 14,170 lux (1,316 fc) @ 8.2' (2.5 m) 18° full-on
4,561 lux (424 fc) @ 16.4' (5 m) 18° full-on
1,721 lux (160 fc) @ 24.6' (7.5 m) 18° full-on | | Color | 2 x Color Wheels:
Wheel 1: 5 x Dichroic colors, including UV
Wheel 2: 6 x Dichroic colors, including CTO | | Gobos | 2 x Gobo Wheels:
Wheel 1: 7 x Interchangeable rotating-indexing gobos
Wheel 2: 7 x Static-stamped gobos | | Effects | 4 x Rotating framing shutters and macros
3-Facet rotating prism and frost filter
Motorized focus & mechanical iris

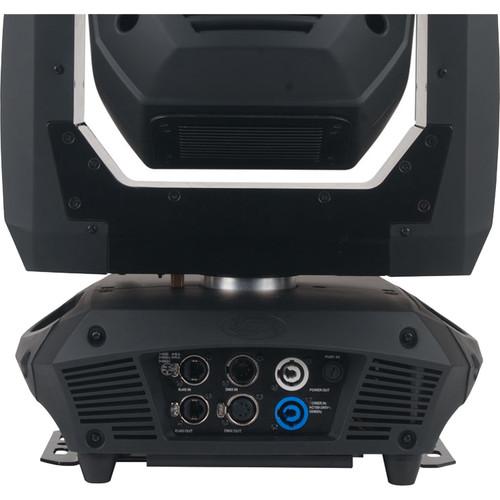

Electronic dimming & strobe | | DMX Connectors | 1 x 5-pin XLR male, DMX in
1 x 5-pin XLR female, DMX out
1 x RJ45 Ethernet, Art-Net in
1 x RJ45 Ethernet, Art-Net out | | DMX Channels | 24, 26 & 36-channel modes | | Control | 1 x 6-button touch-control panel
RDM (Remote Device Management)
Full-color 180°-reversible LCD menu display | | Movement Resolution | 8-bit
16-bit | | Power Connection Type | 1 x powerCON, power in
1 x powerCON, power out | | Power Supply | 100 - 240 VAC, 50 / 60 Hz | | Power Consumption | 250 W max. | | Operating Temperature | -13 to 113°F (-25 to 45°C) | | Working Position | Upright or inverted (180°) | | IP Rating | IP 20 | | Approvals | CE | | Dimensions | 14.2 x 16.0 x 25.0" (36.0 x 40.8 x 63.6 cm) | | Weight | 57 lb (26 kg) |
