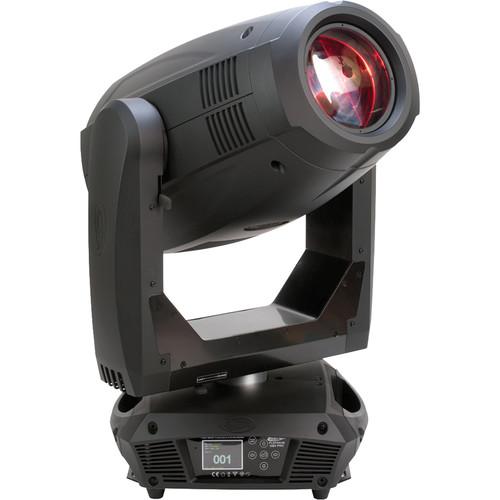

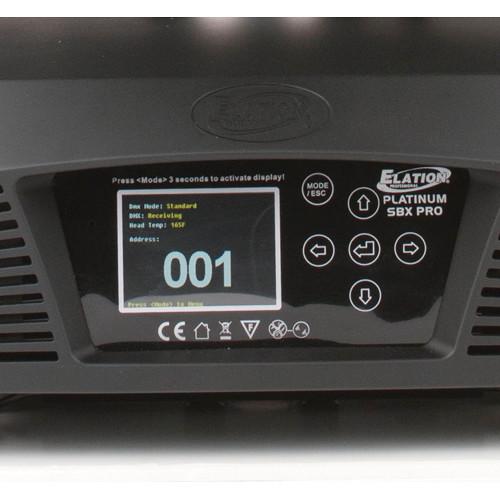

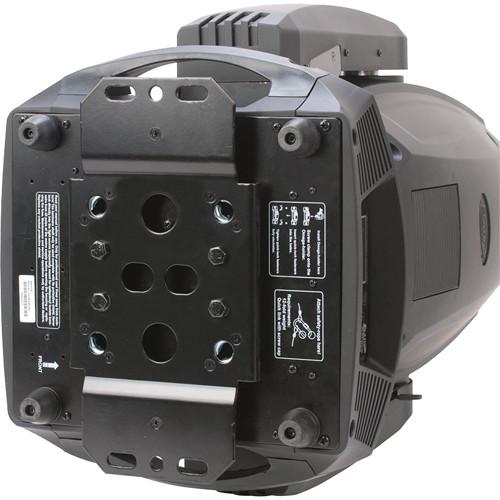

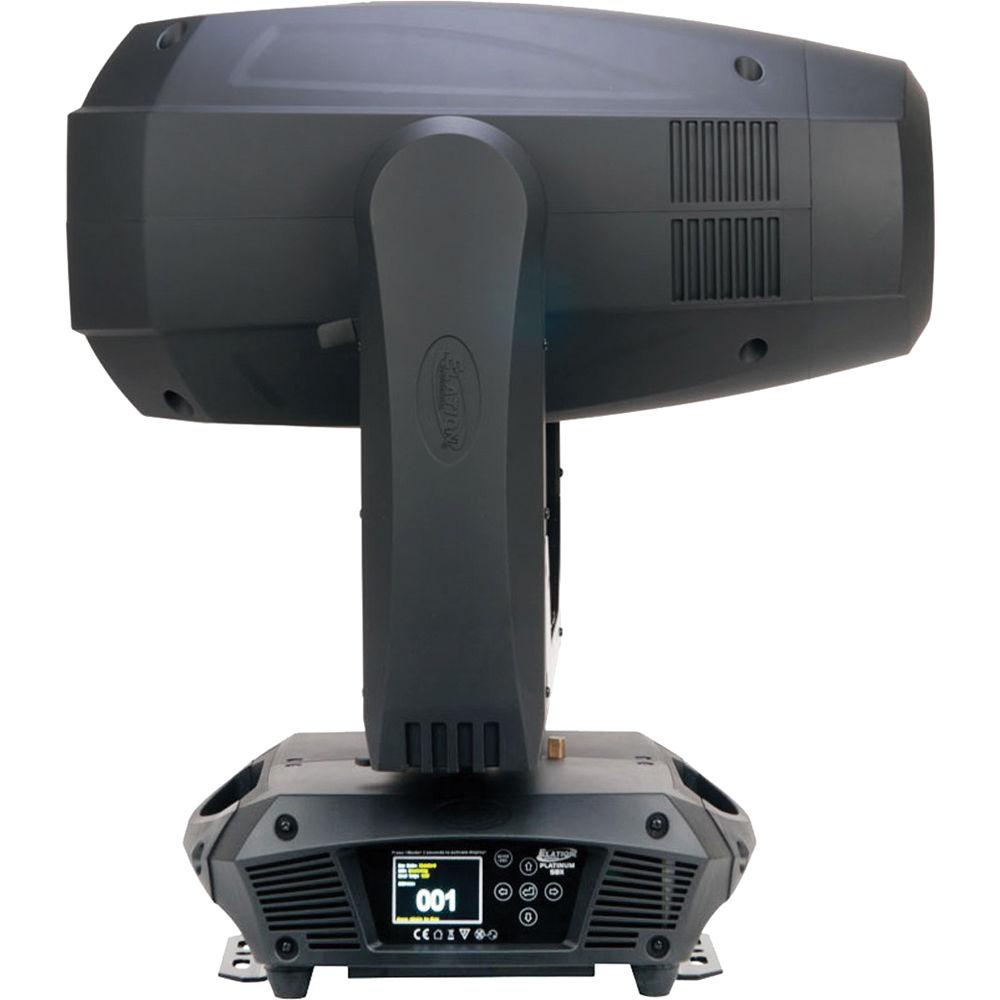

Product description The Platinum SBX 3-in-1 Luminaire from Elation Professional has an innovative fully-featured design which can be utilized as a beam, spot, or wash fixture. It features the Phillips MSD Platinum 17 RA 350W, 6,900K, 85 CRI lamp which delivers 15,000 total lumens, comparable to 700W fixtures. The fixture also has a 3° to 18° zoom in beam mode and 5° to 30° zoom in spot mode, 10 dichroic colors including UV, CTO, CTB, plus white, 8 rotating-interchangeable and 12 static-stamped gobos, a rotating 8-facet prism, and a frost filter. Other features include Art-NET (DMX Over Ethernet) support, 5-pin DMX in/out, RJ45 Ethernet in/out, and powerCON in/out connections as well as a 6-button control full color 180° reversible menu display, a 550W max power consumption, and a multi-voltage universal auto switching power supply. - CTO & CTB color correction
- 3-18° beam and 5-30° spot zoom
- Beam shaper and rotating 8-facet prisms
- Art-NET (DMX Over Ethernet) support
- Strobe settings from 1-18 fps
- 10 dichroic colors including UV, CTB, CTO, and white
- 2 gobo wheels, 8 interchangeable/rotating/indexing gobos, and 12 static-stamped/indexing gobos
- 8/16-bit resolution adjustable movement
- RDM (Remote Device Management) support
- Photometrics
- 9940 fc (107000 lux) at 49.2' (15 m) with 3° beam full power
385 fc (4147 lux) at 49.2' (15 m) with 18° beam full power
3898 fc (41960 lux) at 82' (25 m) with 3° beam full power
150 fc (1620 lux) at 82' (25 m) with 18° beam full power
477 fc (5133 lux) at 49.2' (15 m) with 5° spot full power
20 fc (210 lux) at 49.2' (15 m) with 30° spot full power
183 fc (1970 lux) at 82' (25 m) with 5° spot full power
8 fc (85 lux) at 82' (25 m) with 30° spot full power UPC: 837874017816 In the Box Elation Professional Platinum SBX 3-in-1 Luminaire 2 x Omega Brackets 5-Pin DMX Cable Safety Cable powerCON Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Platinum SBX 3-in-1 Luminaire in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

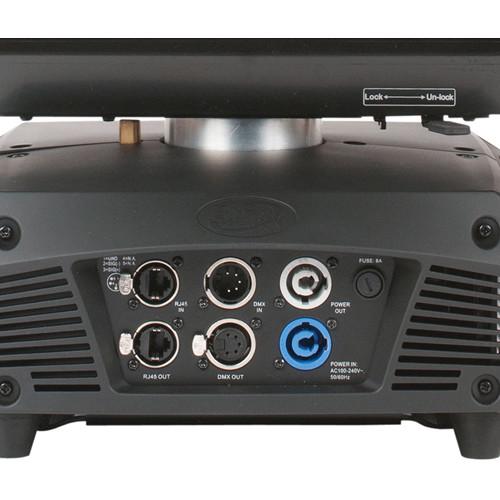

Technical parametersElation Professional Platinum SBX Specs | Lamp | Philips MSD Platinum 17 RA 350 W lamp | | Lamp Life | 1,500 hours | | Lumens | 15,000 lumens | | Color Temperature | 6,900K | | CRI | 85 | | Beam Angle | 3-18° beam and 5-30° spot zoom | | Dimming | 0-100% | | Device Management | RDM (Remote Device Management) | | DMX Connectors | 5-pin DMX in
5-pin DMX out
RJ45 Ethernet in (Art-NET)
RJ45 Ethernet out (Art-NET) | | DMX Channels | 16, 18, or 25 channels | | Power Connection Type | powerCON in
powerCON out | | Power Requirements | 100-240 VAC, 50/60 Hz | | Power Consumption | 550 W max | | Certifications | CE, RoHS, IP20 | | Operating Conditions | 14 to 113°F (-10 to 45°C) | | Rigging Points | Clamps (not included) | | Working Position | Flat surface / inverted (180°) | | Dimensions | 14.1 x 19.7 x 28.7" (359 x 502 x 730 mm) | | Weight | 73 lb (33.1 kg) | | | | Package Weight | 73.0 lb | | Box Dimensions (LxWxH) | 34.5 x 22.0 x 19.25" |
