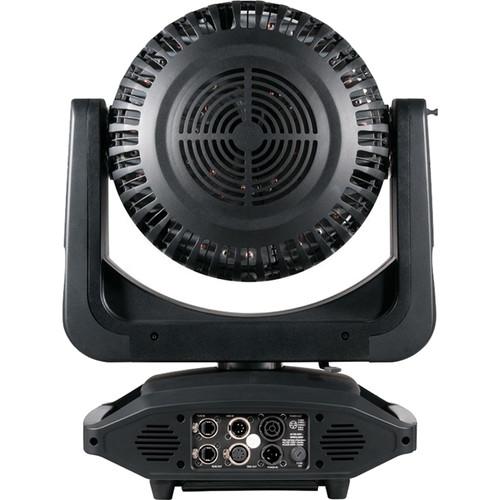

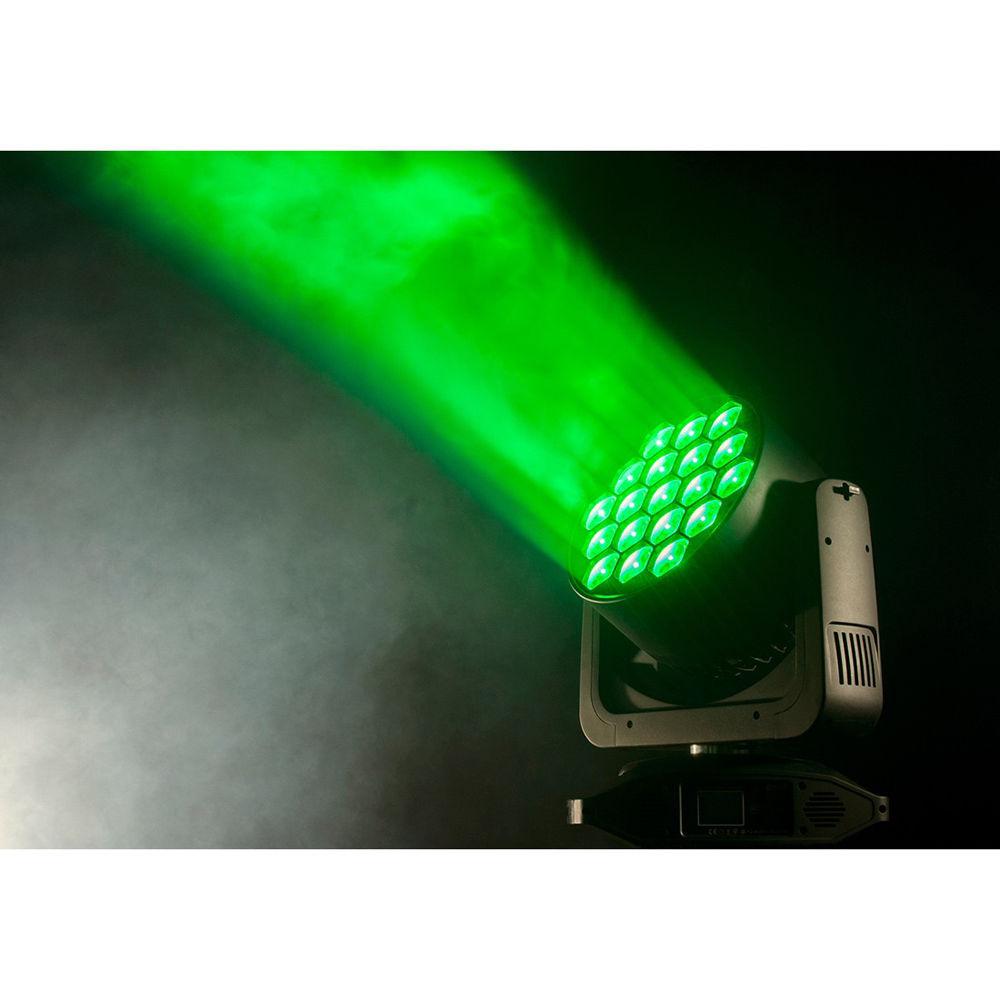

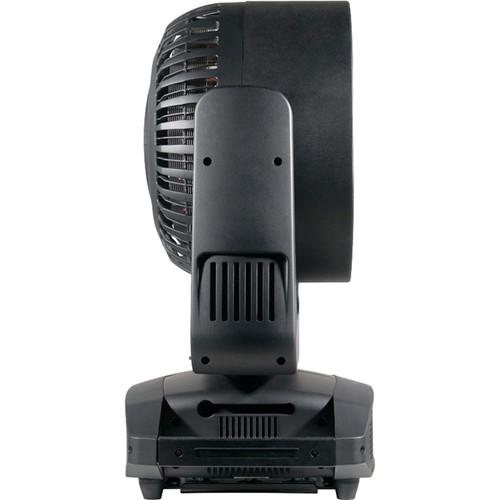

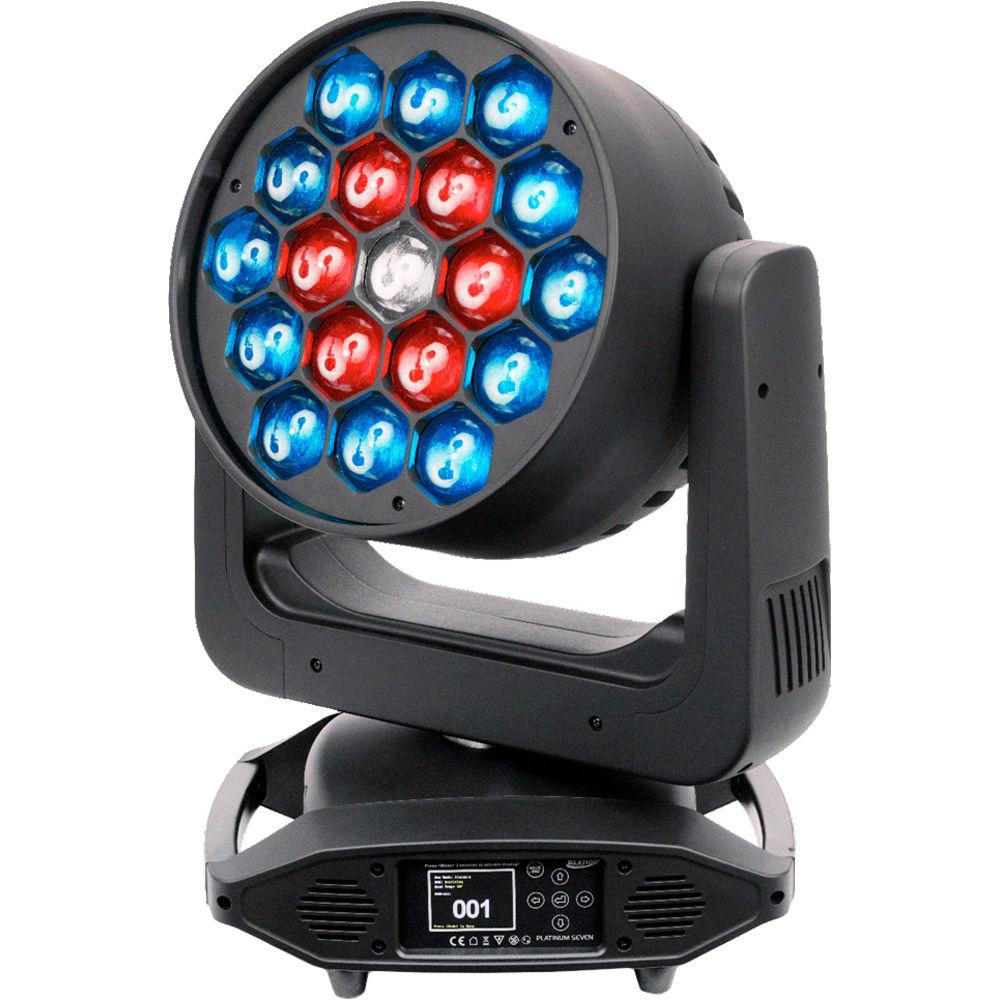

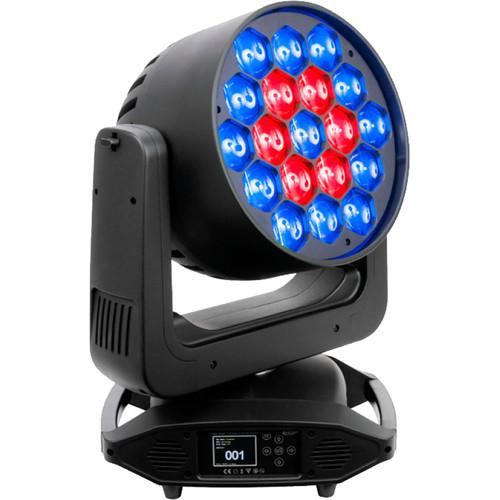

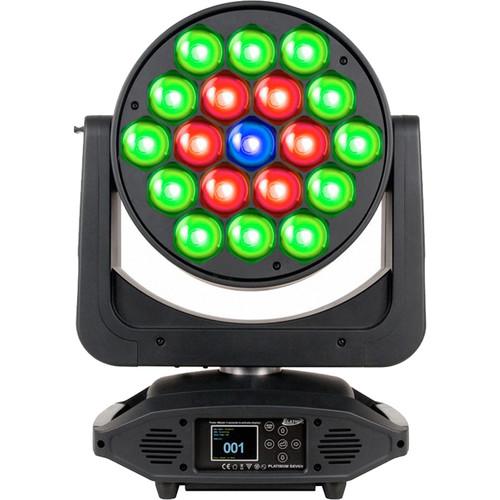

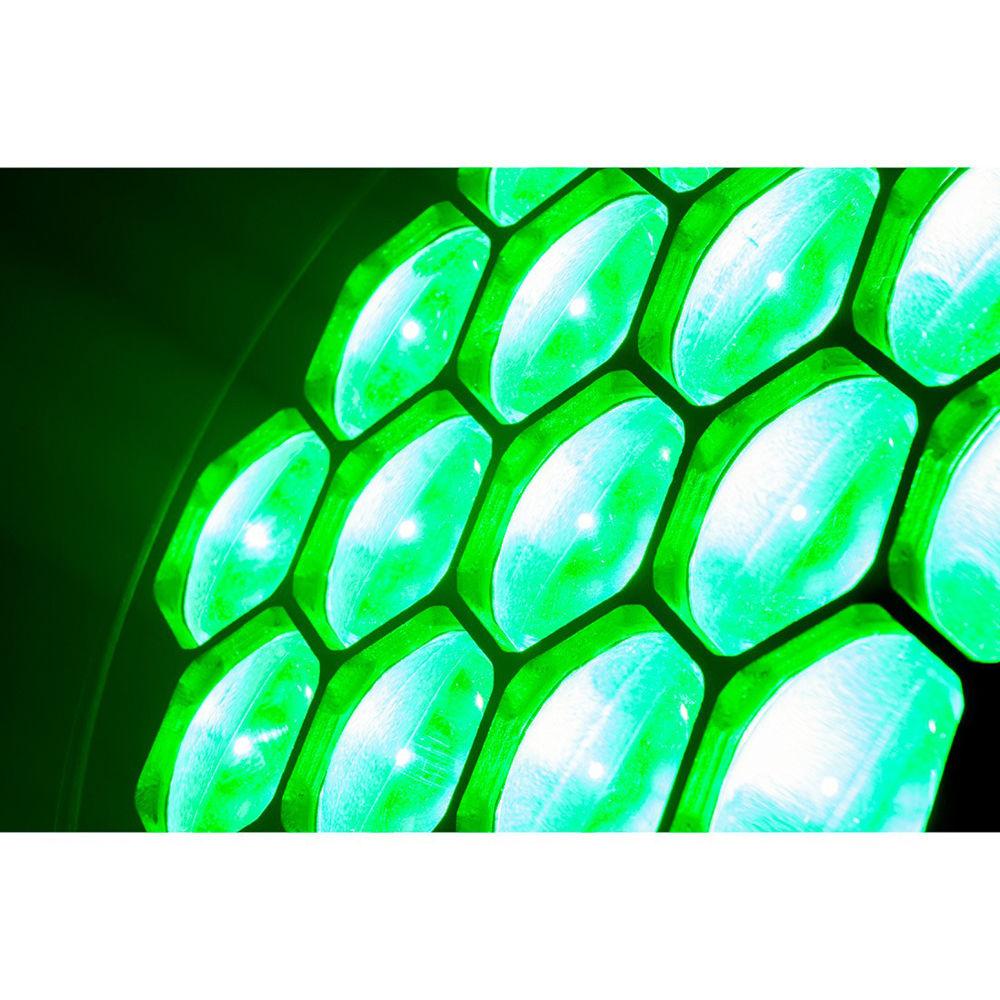

Product description The Platinum SEVEN Wall Wash from Elation Professional is a high-power 7-color wash luminaire. It features nineteen 25W multichip LEDs, including red, green, blue, white, amber, mint, and UV LEDs. The wash also features 5-pin DMX, RJ45 Ethernet, powerCON in/out connectors, 6-button 180° reversible color menu display, and a multi-voltage universal auto-switching power supply. - 5 to 50° beam angle zoom range
- Advanced cooling and movement control systems
- 3-pixel ring control and silent mode that reduces fan noise by over 25% decibels
- Color-pixel ring and color preset macro effects
- 6-button touch control panel
- Full color 180° reversible LCD menu display
- Linear color temperature presets (2,700 to 8,000K)
- Electronic strobe (1 to 25 fps)
- Linear dimming (0 to 100%) and selectable dimming curves
- Flicker free operation for TV and film
- Adjustable refresh rate frequency and gamma brightness
- DMX, RDM, KlingNET, and Art-NET (DMX over Ethernet)
- RDM (Remote Device Management)
UPC: 837874019834 In the Box Elation Professional Platinum SEVEN RGBWA Mint UV Wall Wash Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Platinum SEVEN RGBWA Mint UV Wall Wash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Platinum Seven Specs | Lamp | 19 x 25 W multi-chip LEDs | | Lamp Life | 50,000 hour average LED life | | Beam Angle | 5 to 50° | | Photometric Data | 38,500 lux 3,577 FC @3.3' (1 m) (5° minimum zoom) full On
6,670 lux 620 FC @3.3' (1 m) (50° maximum zoom) full On | | Color | RGBW + AMBER + MINT + UV (7 colors)
Even and smooth color mixing | | DMX Connectors | 5-pin DMX In/Out | | DMX Channels | Three DMX channel modes (24 / 31 / 40) | | Refresh Rate | Adjustable: 900-1500, 2500, 4000, 5000, 10000, 15000, 20000, 25000 Hz | | Gamma Adjustment | Brightness: 2.0, 2.2, 2.4, 2.8 | | Movement | Adjustable: 8/16-bit resolution | | RJ-45 Ethernet Port | In/Out (Art-NET, sACN) | | Power Connection Type | powerCON TRUE1 power in/out | | Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | 600 W maximum | | Temperature | 14 to 113°F (-10 to 45°C) | | Approvals and Ratings | CE, RoHS, IP20, and cETLus | | Dimensions (L x W x H) | 16.5 x 11.2 x 22.0" (41.8 x 28.4 x 55.9 cm) | | Weight | 47.0 lb (21.3 kg) | | | | Package Weight | 58.4 lb | | Box Dimensions (LxWxH) | 25.5 x 21.0 x 15.0" |
