User Manual for Elation Professional Platinum Spot 15R PRO Light Fixture Click to enlarge the picture
Contents of the user manual for the Elation Professional Platinum Spot 15R PRO
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
 |
User manual for the Elation Professional Platinum Spot 15R PRO contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The white Platinum Spot 15R PRO Light Fixture from Elation Professional outputs up to 13,500lux with a 300W MSD Platinum 15R Philips lamp. Generate vivid colors and lighting effects with the CMY color mixing system and 3 variable zooms in this light fixture. Static and rotating gobos help deliver superior optics and generate an even light field.You can use the Platinum Spot 15R PRO as a spot or wash fixture with the built-in hybrid technology. A wireless DMX transmitting system is built into the lamp, which helps reliably transmits DMX signals up to 2297’ using frequency hopping (FHSS) and TDMA (Time Division Multiple Access) protocols. - Delivers 10,500 lux / 975 fc output at 16' with the Philips MSD Platinum 15R lamp
- Features CMY color mixing system
- Offers a flat and even light field
- Hybrid technology allows using the fixture as a spot or wash light

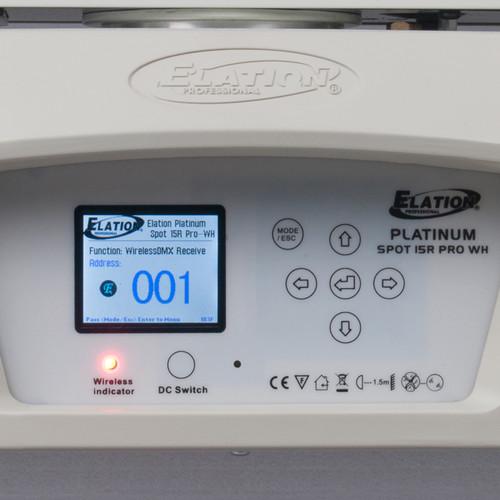

- Built-in EWDMXR Wireless DMX Receiver
- Features 8 dichroic colors
- Includes 8 rotating replaceable and 14 static gobos
- 9 to 27° variable zoom beam angle
- Variable speed shutter / strobe
- 0 to 100% mechanical dimmer
Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Platinum Spot 15R PRO Light Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Platinum Spot 15R Pro Specs | Lamp | 300 W MSD Platinum 15R Lamp
13,500 lux; 8,000K; CRI: 75 | | Lamp Life | 1,500 hours | | Color Mixing | CMY 16-bit color mixing | | Gobos | 22 (8 x Rotating replaceable and 14 x static) | | Gobo Size | Glass Gobo: 16.3 mm outer diameter and 10 mm image diameter

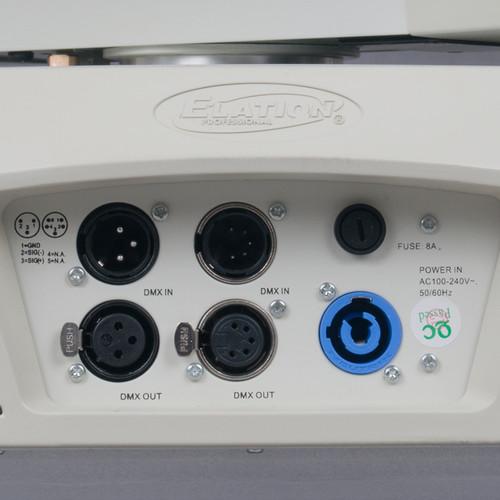

Metal Gobo: 16.3 mm outer diameter and 11 mm image diameter | | Beam Angle | 9 to 27° variable | | Pan/Tilt | 540/630 x 265 | | Power | 120 to 240 VAC; 50/60 Hz | | DMX Channel Modes | 23, 21, and 34 Channels DMX | | DMX Connectors | 3-pin & 5-pin DMX (In/Out) | | Approvals | cETLus listed | | Dimensions (L x W x H) | 16.1 x 16.5 x 21.3" (40.9 x 41.9 x 54.1 cm) | | Weight | 48.9 lb (22.1 kg) |
