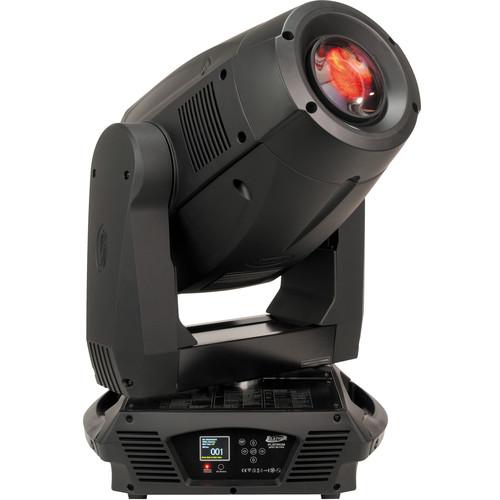

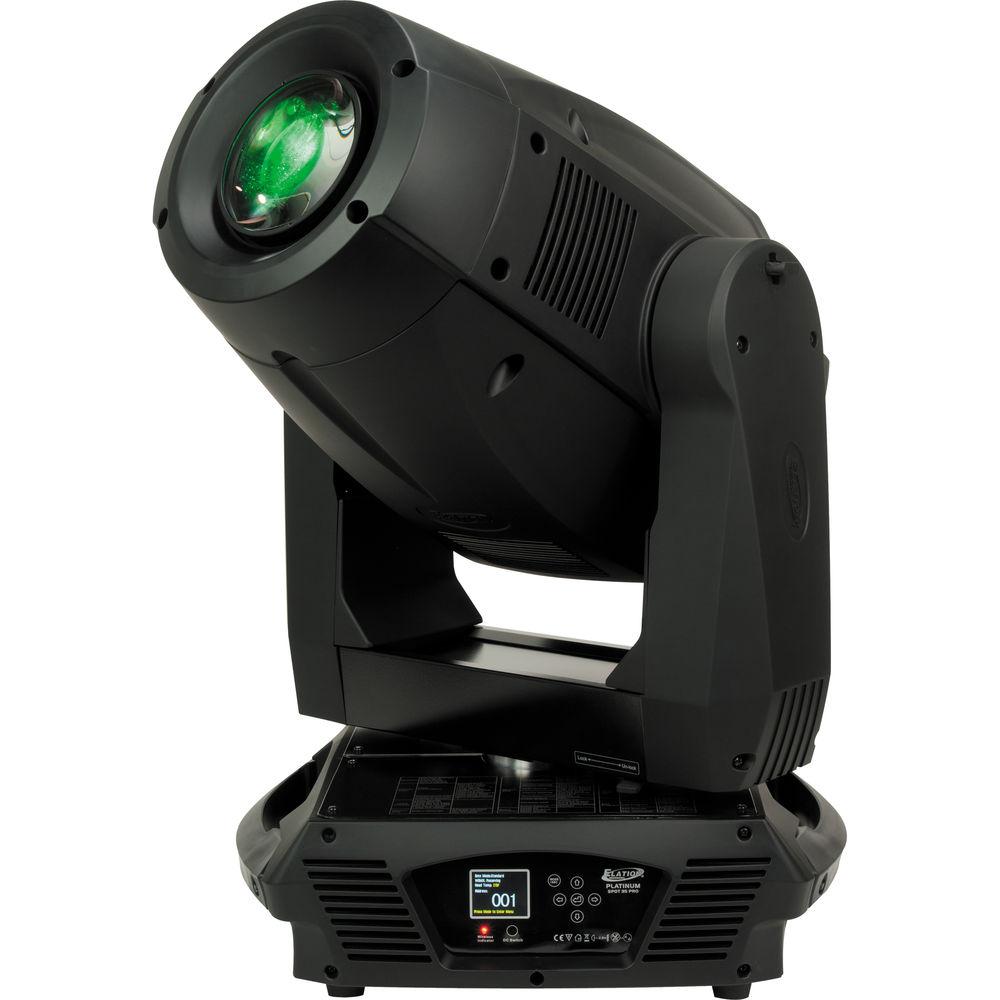

Product description The Platinum Spot 35 Pro Effect Light from Elation Professional is a lighting effect fixture, designed for indoor use. The Platinum Spot 35 Pro features the Philips 800W MSR Platinum 35 lamp. This fixture has a built-in EWDMX wireless DMX receiver which uses FHSS technology. The 2 gobo wheels have a total of 12 interchangeable, indexing gobos. There are 6 rotating gobos, and 6 static gobos. It also features a static color wheel with 8 dichroic colors, including UV, CTB, and white. The data control is made via 3 pin and 5 pin DMX connectors. - Multi voltage electronic power supply
- EWDMX wireless DMX receiver built-in
- 8 dichroic colors and 13 gobos

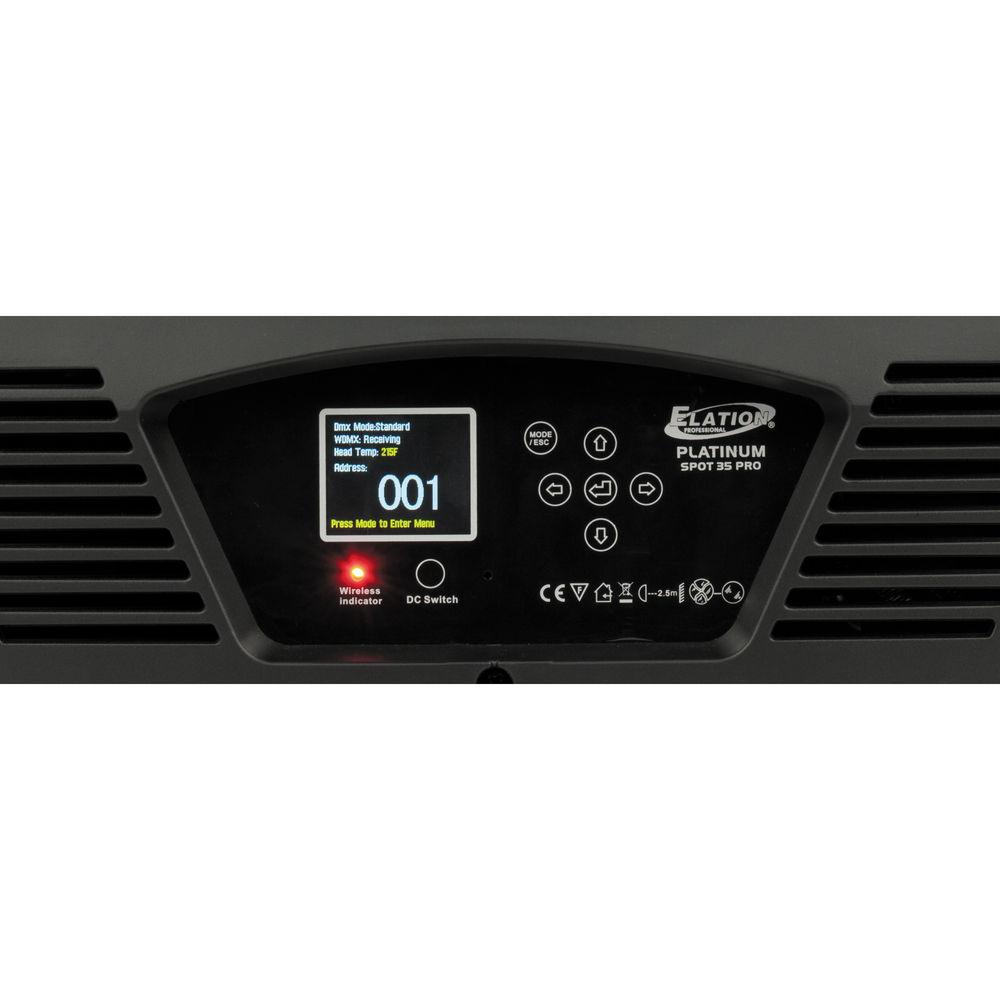

- 6 button touch control panel
- Variable frost filter (hybrid effect for wash)
- Philips MSR platinum 35 lamp
- Microphone for sound activated programs
- Full color 180° reversible menu display
- Rechargeable backup battery for menu display
- Stand alone operation with master/slave function
UPC: 837874016024 In the Box Elation Professional Platinum Spot 35 Pro Effect Light Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Platinum Spot 35 Pro Effect Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Platinum Spot 35 Pro Specs | | | Type | MSR Platinum 35 (Philips) | | Wattage | 800 W | | Lux | 76,880 Lux @ 16.4' (5 m) @ 20° | | Lifetime | 750 hours | | Color Temperature | 6000 K | | Luminous Flux | 54,500 Lm | | CRI | >80 | | | | Beam Angle | 8 to 50° | | Lenses | Hardened and tempered, anti-reflex coating | | Colors | Variable CMY
8 Static dichroic colors including UV,CTB, and white (open) | | Gobos | 2 Gobo wheels with 6 interchangeable glass rotating / indexing gobos
6 static interchangeable gobos plus open
Size: OD 1.2" (29 mm), ID 0.94" (24 mm) | | Prism | 3 Facet rotating/indexing prisms | | Dimmer | Mechanical dimming: 0 - 100% | | Iris | Motorized Iris: 5 - 100% | | Focus | Motorized | | Channels | 3 DMX Channel Modes (27 / 29 / 41) | | | | Pan Movement | 540/630° | | Tilt | 265° | | Operating Temperature | -13 to 113° F(-25 to 45˚ C) | | | | Inputs | 1 x 3-Pin XLR male, DMX
1 x 5-Pin XLR male, DMX
1 x powerCON, power | | Outputs | 1 x 3-Pin XLR female, DMX
1 x 5-Pin XLR female, DMX | | | | Power Requirements | 120 - 240 VAC, 50/60 Hz | | Power Consumption | 1200 W (max) | | | | Dimensions (L x W x H) | 19.9 x 17.6 x 28.6" (50.6 x 44.7 x 72.6 cm) | | Weight | 79.4 lb (36.0 kg) | | | | Package Weight | 110.0 lb | | Box Dimensions (LxWxH) | 33.0 x 22.0 x 19.0" |
