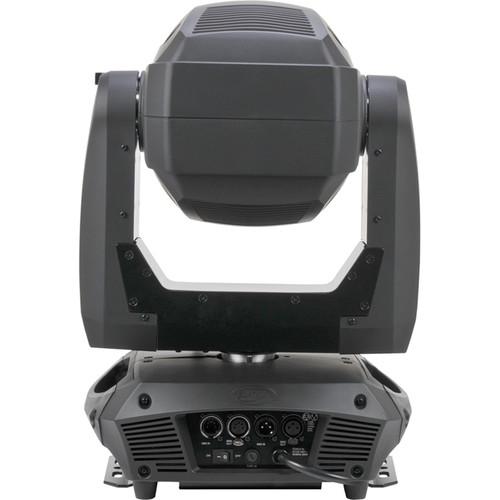

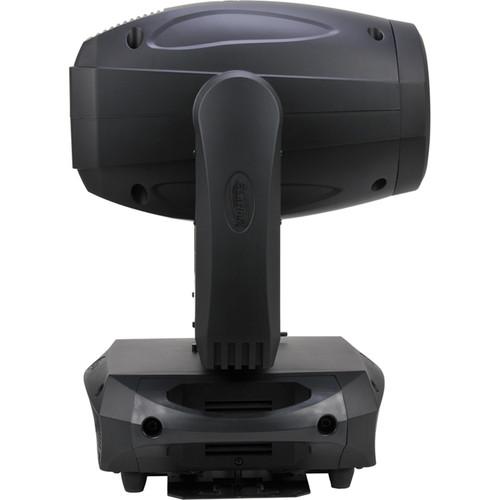

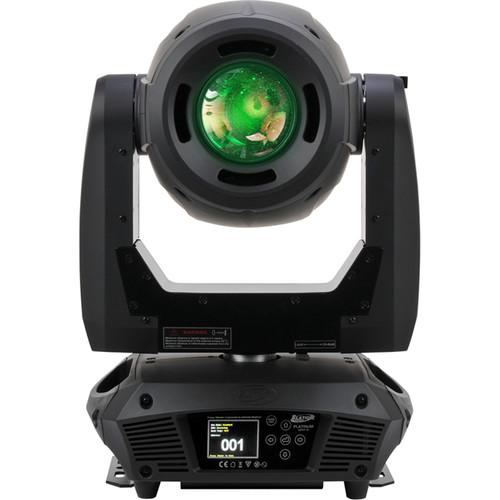

User Manual for Elation Professional Platinum Spot III - LED Spot Wash Moving Head Light Click to enlarge the picture
Contents of the user manual for the Elation Professional Platinum Spot III -
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
 |
User manual for the Elation Professional Platinum Spot III - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The Platinum Spot III from Elation Professional is a moving head fixture with a 230W, 8500K, > 79CRI cool white LED engine, delivering a total of 7,200 lumens. The versatile fixture can be used as a wash or a spot, with features such as 16° to 32° zoom, eight dichroic colors (plus white and split), seven rotating/interchangeable gobos, seven static-stamped gobos, a bi-directional variable-speed animation wheel, a 3-facet rotating prism, and a frost filter. Additional features include motorized iris and focus, variable dimming curves, a high-speed mechanical shutter and strobe, and hibernation mode. The Platinum Spot III has three DMX channel modes (18/20/27) and supports RDM (Remote Device Management). Connections include XLR 3- and 5-pin inputs/outputs for DMX. The fixture also has a six-button control panel and full-color 180°-reversible menu display, battery backup for display power, and flicker-free operation for film and TV application. Platinum Spot III is powered via a multi-voltage, auto-switching power supply (100-240 VAC), and consumes a maximum of 350W. This unit ships with two Omega brackets, an XLR 3-pin DMX cable, a powerCON cable, and a safety cable. Features - Spot/wash LED moving head light
- 230W, 8500K, > 79 CRI, Cool White LED engine
- 7,200 lumen output and approximately 60,000 hours LED life
- 16° to 32° motorized zoom, 8 dichroic colors
- 7 rotating/interchangeable gobos and 7 static-stamped gobos
- Bi-directional variable-speed animation wheel
- 3-facet rotating prism and frost filter
- High-speed mechanical shutter and strobe effects
- Motorized iris & focus, and variable dimming curves
- Low heat, quiet operation, hibernation mode
- Flicker-free operation for broadcast TV and film
UPC: 837874018417 In the Box Elation Professional Platinum Spot III - LED Spot/Wash Moving Head Light 2 x Omega Brackets 3-Pin DMX Cable Safety Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Platinum Spot III - LED Spot Wash Moving Head Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Platinum Spot III Specs | Light Source | Cool White LED engine; 280 W; 8500K; > 79 CRI; 12,000 lumens | | Life Expectancy | 60,000 hours average | | Beam Angle | Motorized Zoom: 16 to 32° | | Photometrics | At 16° (Minimum Zoom), Full On:
Distance: 8.2' (2.5 m) | Illuminance: 17,500 lux (1,626 fc) | Beam Diameter: 2.3' (0.7 m)
Distance: 16.4' (5.0 m) | Illuminance: 4,450 lux (413 fc) | Beam Diameter: 4.6' (1.4 m)
Distance: 24.6' (7.5 m) | Illuminance: 2,178 lux (202 fc) | Beam Diameter: 6.9' (2.1 m)
At 32° (Maximum Zoom), Full On:
Distance: 8.2' (2.5 m) | Illuminance: 5,373 lux (499 fc) | Beam Diameter: 4.7' (1.43 m)
Distance: 16.4' (5.0 m) | Illuminance: 1,438 lux (134 fc) | Beam Diameter: 9.4' (2.86 m)
Distance: 24.6' (7.5 m) | Illuminance: 700 lux (65 fc) | Beam Diameter: 14.1' (4.29 m) | | Color Wheel | 8 x Dichroic Colors: red, blue, green, yellow, magenta, orange, light blue
Plus white and split colors
Bi-directional, variable-speed scroll | | Gobo Wheel | Wheel 1:
7 x interchangeable/rotating/indexing glass gobos
Bi-directional, variable-speed gobo scroll and rotation
Shake effect
Wheel 2:
7 x static-stamped metal gobos
Bi-directional, variable-speed gobo scroll
Shake effect | | Prism Type | 3-facet circular rotating prism with macros | | Pan & Tilt Range | Pan: 540° / 630°
Tilt: Not specified by manufacturer
Movement Resolution: 8-bit or 16-bit | | Special Functions | Bi-directional, variable-speed animation wheel
Frost filter, hybrid wash effect
Motorized zoom, iris, and focus
High-speed mechanical shutter and strobe
Variable dimming curves | | Built-In Programs | Yes | | Protocols | DMX512 and RDM | | DMX Connectors | Input: XLR 5-pin and XLR 3-pin
Output: XLR 5-pin and XLR 3-pin | | DMX Channel Modes | 3 x Modes: 18 / 20 / 27 channels | | Display/Controls | 6-button touch control panel
Full-color 180°-reversible LCD menu display
| | Input Voltage Range | 100 to 240 VAC, 50/60 Hz | | Maximum Power Consumption | 350 W | | Operating Temperature | -13 to 113°F (-25 to 45°C) | | Approvals and Certifications | CE, IP20, RoHS | | Working Position | Working Position: flat / inverted (180°) | | Dimensions (L x W x H) | 14.8 x 15.1 x 23.7" (375.0 x 384.0 x 601.0 mm) | | Weight | 46.0 lb (20.8 kg) | | | | Package Weight | 59.0 lb | | Box Dimensions (LxWxH) | 29.3 x 19.2 x 18.0" |
