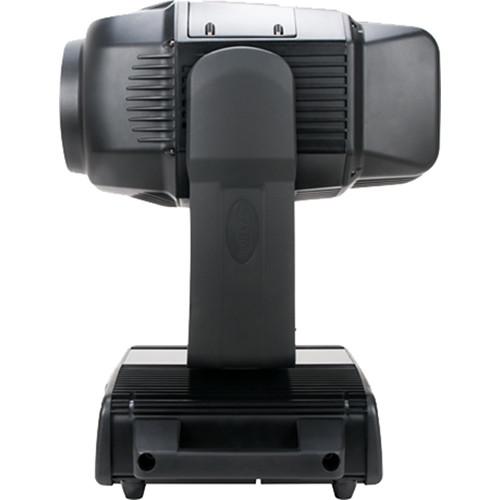

Product description The black Elation Professional PROTEUS BEAM is an IP65 outdoor-rated moving head beam luminaire, well suited for concerts, festivals, cruise ships, or any environmentally challenging application. The fixture utilizes a Philips MSD Platinum 14R 80CRI 7800K lamp, producing over 12,000 lumens.
The PROTEUS BEAM features an advanced optical system producing a precise 2.5° beam aperture, a remarkable internal thermal cooling system, full CMY color mixing, 13 dichroic colors including CTB, CTO, & UV, 8 rotating interchangeable metal gobos, 13 static-stamped metal gobos, 5- & 32-facet rotating prisms, a frost filter, motorized focus and autofocus, and a high-speed mechanical shutter & strobe.
For control, the fixture offers RDM, Art-NET, DMX (3 channel modes, and sACN protocol support. Additionally, the unit offers wireless control via Elation's E-FLY internal wireless DMX transceiver. The rear panel offers IP-rated connectors for 5-pin XLR in/out, RJ45 etherCON in/out, and a powerCON TRUE 1 input. A full-color 180° reversible menu display with 6-button touch control panel includes a battery backup for display power, while the multi-voltage universal auto-switching power supply (100 to 240V) works anywhere in the world. The Elation Professional PROTEUS BEAM includes a powerCON TRUE1 cable, an IP-rated 5-pin DMX cable, IP-rated etherCON cable, a safety cable, and two Omega brackets. -
- IP65-rated moving head beam luminaire
- Philips MSD platinum 14R, 280 W, 80 CRI, 7800K lamp
- Precise 2.5° beam aperture and advanced optics
- Revolutionary internal cooling system
- Full CMY color mixing
- 13 dichroic colors including CTB, CTO, and UV
- 8 rotating interchangeable metal and 13 static-stamped metal gobos
- 5- and 32-facet rotating prisms and frost filter
- Motorized focus and autofocus
- High-speed mechanical shutter and strobe
- DMX, RDM, Art-NET, and sACN protocol support
- Elation’s E-FLY internal wireless DMX transceiver
In the Box Elation Professional PROTEUS BEAM Outdoor Moving Head Luminaire (Black) powerCON TRUE1 Cable IP-Rated 5-Pin DMX Cable IP-Rated etherCON Cable Safety Cable 2 x Omega Brackets Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional PROTEUS BEAM Outdoor Moving Head Luminaire in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Proteus Beam Specs | Source | Lamp: Philips MSD Platinum 14R, 280 W, 80 CRI, 780K
Lamp Life: 1500 Hours | | Beam Angle | 2.5° | | Photometric Data | 136,800 Lux, 12,709 FC at 49.2' / 15.0 m, 2.5° | | Effects | 5- and 32-Facet Rotating Prism and Prism Macros
Frost Filter Hybrid Wash Effect
Motorized Focus and Auto Focus
High Speed Mechanical Shutter and Strobe | | Color | 13 Dichroic Colors including CTB, CTO, and UV
Full CMY Color Mixing | | Gobos | 8 Interchangeable Rotating / Indexing Metal Gobos
13 Static-Stamped Metal Gobos | | Control and Connectors | 3 DMX Channel Modes (28 Total Channels)
6-Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8-/16-Bit Resolution Adjustable Movement
DMX, RDM, Art-NET, and sACN Protocol Support
Elation E-Fly Internal Wireless DMX Transceiver
IP65 5-Pin DMX In/Out
PIP65 RJ45 Ethernet In/Out
IP65 powerCON TRUE1 Power In
With Wired Digital Communication Network | | Power | Power Supply: 100 to 240 VAC, 50/60 Hz
Power Consumption: 500 W Maximum | | Operating Temperature | 14 to 113°F (-10 to 45°C) | | Approvals and Ratings | CE | cETLus | IP65 | | Dimensions (L x W x H) | 17.1 x 17.9 x 26.8" / 43.4 x 45.3 x 68.0 cm | | Weight | 77.0 lb / 34.9 kg |
