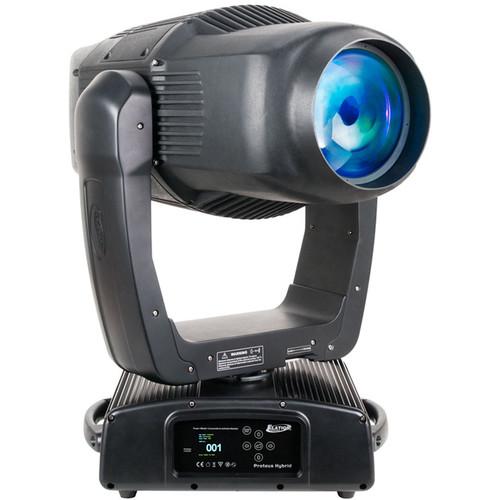

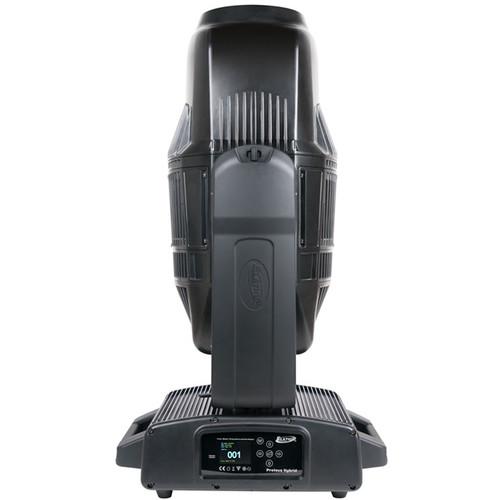

Product description The black Elation Professional PROTEUS HYBRID FC is an IP65-rated 3-in-1 outdoor luminaire that can be used as a beam, spot, or wash fixture and is well suited for professional touring, festivals, concerts, cruise ships, and or in any environmentally challenging application. The fixture utilizes a Philips MSD Platinum 21R 470W 80 CRI 80,000K lamp producing over 23,000 lumens.
The advanced optical system is equipped with a motorized zoom from 2° in beam mode, to 38° in spot mode, or 40° in wash mode. Additional features include an advanced internal thermal cooling system, full CMY and linear CTO color mixing, 14 dichroic colors including CTB, CTO, and UV, 8 rotating glass interchangeable and 14 static-stamped metal gobos, full 360° bidirectional animation wheel, 8-facet and linear rotating prisms, frost filter, motorized focus and autofocus, and a high-speed mechanical shutter and strobe.

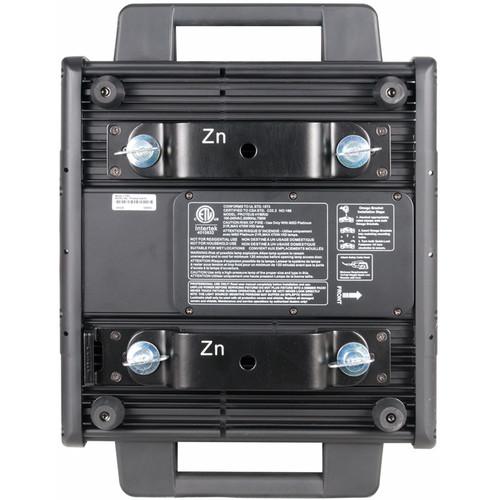

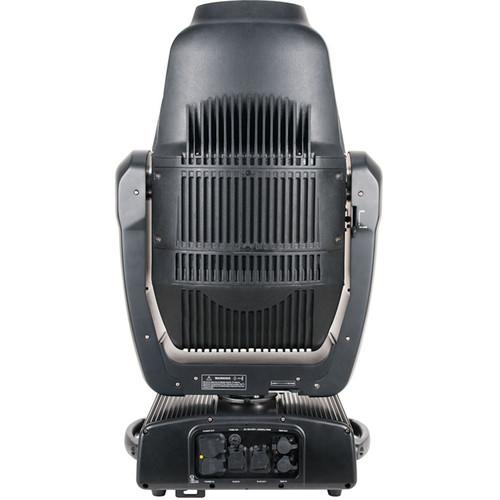

Control options include RDM (Remote Device Management), Art-NET, and DMX with three channel modes (24, 26, 37), as well as sACN protocol support. Additionally, the unit features Elation's E-FLY internal wireless DMX transceiver for wireless operation, while the IP-rated 5-pin XLR and RJ45 etherCON in/out connections provide wired connections. The luminaire features a full-color 180° reversible menu display with 6-button touch control panel and battery backup for display power. The luminaire features a powerCON TRUE1 power input connector and can be powered via a multi-voltage universal auto-switching power supply (100 to 240 VAC). The PROTEUS HYBRID FC includes a powerCON power cord, an IP DMX cable, an IP-rated etherCON cable, two Omega brackets, and a safety cable. -
- IP65-rated 3-in-1 hybrid beam, spot, wash luminaire
- Philips MSD 21R 470W 80CRI 8000K lamp and advanced optics
- Includes flight case
- Motorized zoom, beam, and spot modes
- Advanced internal thermal cooling system
- Full CMY color mixing and linear CTO color correction
- 14 dichroic colors including CTB, CTO, and UV
- 8 rotating interchangeable and 14 static-stamped metal gobos
- Full 360° bidirectional animation wheel
- Rotating 8-facet and linear prisms and frost filter
- Motorized focus and autofocus
- High-speed mechanical shutter and strobe
- DMX, RDM, Art-NET, and sACN protocol support
- Elation’s E-FLY internal wireless DMX transceiver

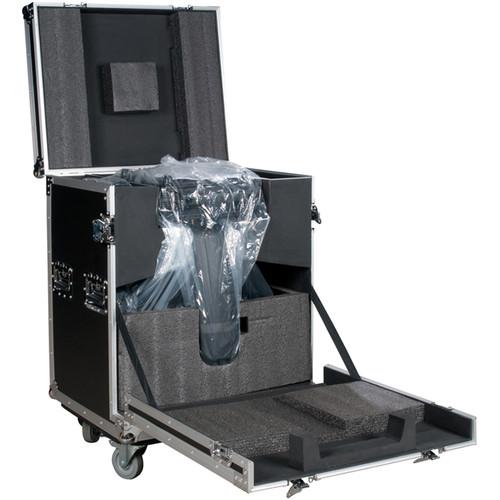

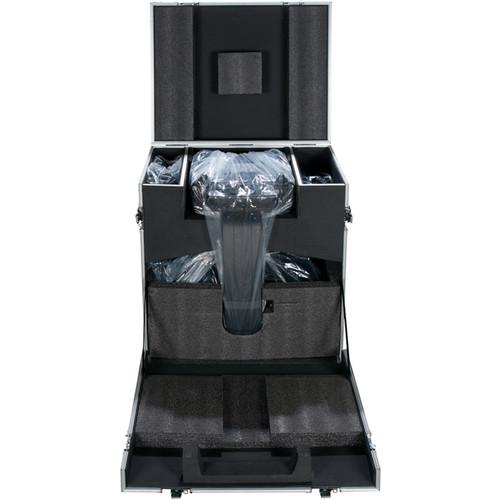

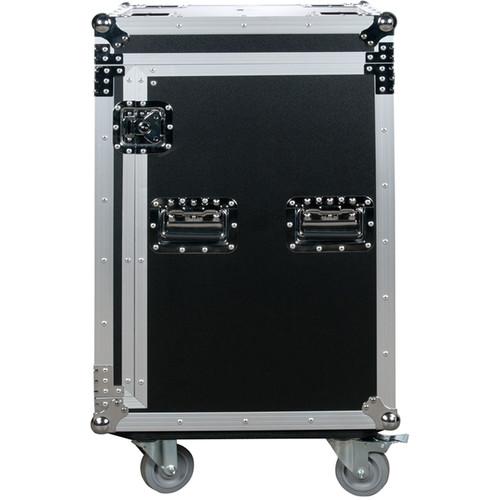

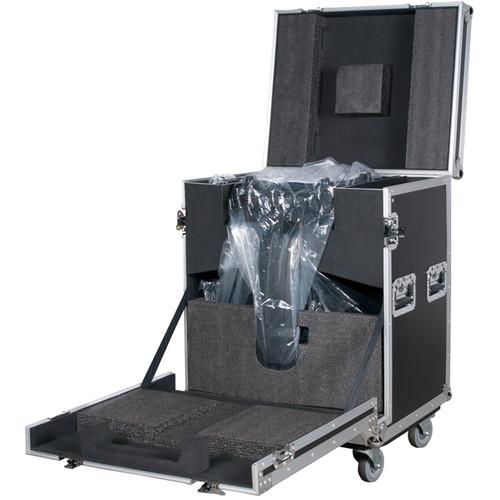

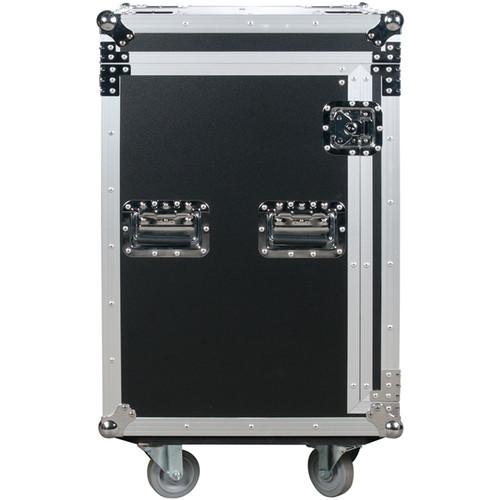

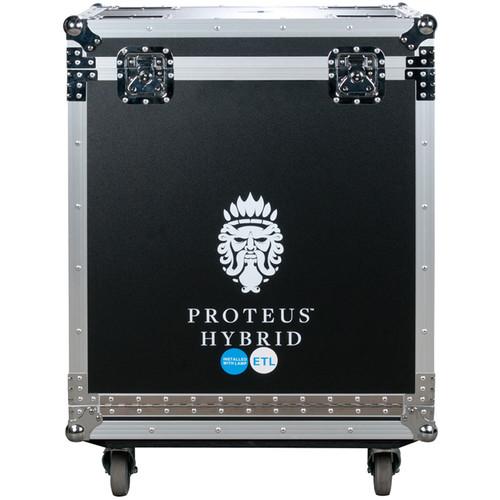

UPC: 837874007510 In the Box Elation Professional PROTEUS HYBRID FC 3-in-1 Outdoor Moving Head Luminaire (Black, with Flight Case) powerCON TRUE1 Cable IP-Rated 5-Pin DMX Cable IP-Rated etherCON Cable Flight Case Safety Cable 2 x Omega Brackets Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional PROTEUS HYBRID FC 3-in-1 Outdoor Moving Head Luminaire in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Proteus Hybrid Specs | Source | Lamp: Philips MSD 21R 470 W 8000 K
Lamp Life: 1000 Hour Average | | Photometric Data | 13,375 LUX 1243 FC at 49.2' / 15 m (3.0° Spot)
233,000 LUX 21,646 FC at 49.2' / 15 m (2.0° Beam)
11,500 LUX 1068 FC at 16.4' / 15 m (4.0° Wash) | | Effects | Full 360° Bidirectional Animation Wheel
Rotating Prisms and Prism Macros
Frost Filter Hybrid Wash Effect
Motorized Focus and Autofocus
High Speed Mechanical Shutter and Strobe | | Color | 14 Dichroic Colors Including CTB, CTO, and UV
Full CMY Color Mixing and Linear CTO Color Correction | | Gobos | 8 Interchangeable Rotating/Indexing Glass Gobos
14 Static-Stamped Metal Gobos | | Control and Connectors | DMX Channel Modes: 24, 26, 37
6-Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8-/16-Bit Resolution Adjustable Movement
DMX, RDM, Art-NET, and sACN Protocol Support
Elation's E-FLY Internal Wireless DMX Transceiver
IP65 5-Pin DMX In/Out
IP65 RJ45 etherCON In/Out
IP65 powerCON TRUE1 Power In
With Wired Digital Communication Network | | Approvals and Ratings | CE, cETLus, IP65 | | Power | Power Supply: 100 to 240 VAC, 50/60 Hz
Max Power Consumption: 700 W | | Temperature | 14 to 113°F / -10 to 45°C | | Dimensions (L x W x H) | 17.5 x 22.5 x 31.5" / 44.4 x 57.1.x 80.0 cm | | Weight | 84.0 lb / 38.1 kg |
