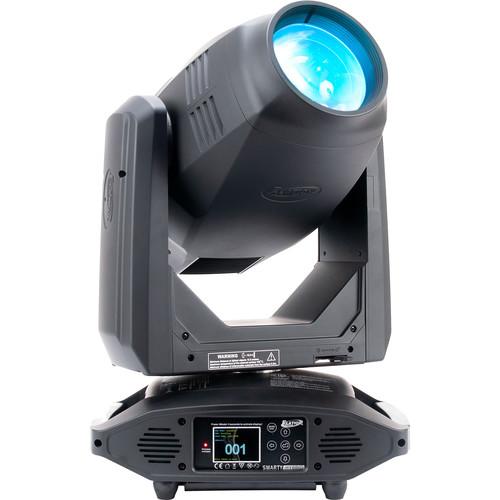

User Manual for Elation Professional Proteus Smarty Hybrid Spot, Beam, & Wash LED Moving Head Fixture Click to enlarge the picture
Contents of the user manual for the Elation Professional Proteus Smarty Hybrid Spot,
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
 |
User manual for the Elation Professional Proteus Smarty Hybrid Spot, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The IP65 rated Elation Professional Proteus Smarty Hybrid is a fully featured spot, beam, and wash hybrid fixture for indoor and outdoor use, offering remarkable projection quality and a wide color mixing array through its variable CMY color mix engine. The fixture is well-suited for special events and concerts as well as theme parks and cruise ships. The fixture features a Philips MSD Platinum 200 Flex lamp with FLEX technology which uses a smartly designed discharge lamp/ballast package to produce high output and compact performance at an efficient, long-life solution of up to 6000 hours.

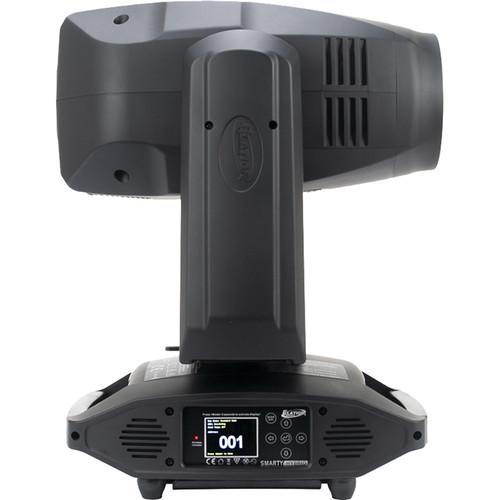

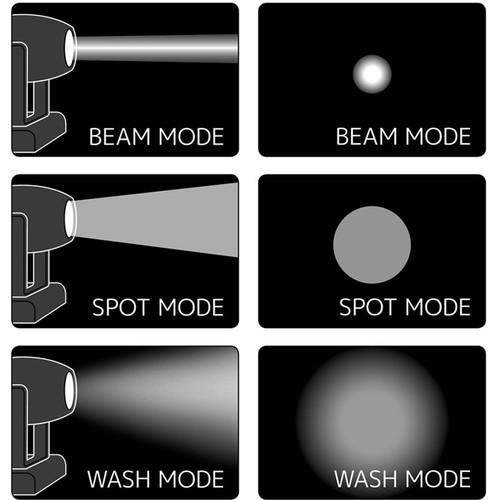

The Proteus Smarty Hybrid's features include an 11,000-lumen total output, motorized zoom ranges of 1 to 18° in beam mode, 3 to 27° in spot mode, and 5 to 33° in wash mode, as well as a full CMY color mixing system, a full frost filter for wash effects, and 13 dichroic colors including a quad-color filter, CTB, CTO, and UV. Additional effects include: 8 rotating and interchangeable glass gobos; 12 static, stamped metal gobos; 16-facet and 5-facet linear and independent rotating prisms; multiple CMY color, gobo, and prism macros; motorized focus with an auto-focus feature; high speed shutter and strobe; and lamp hibernation mode.

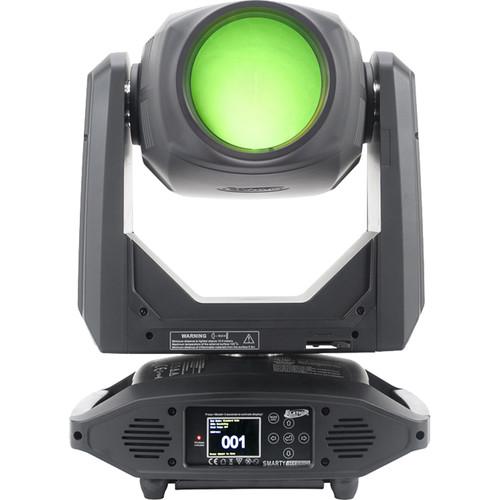

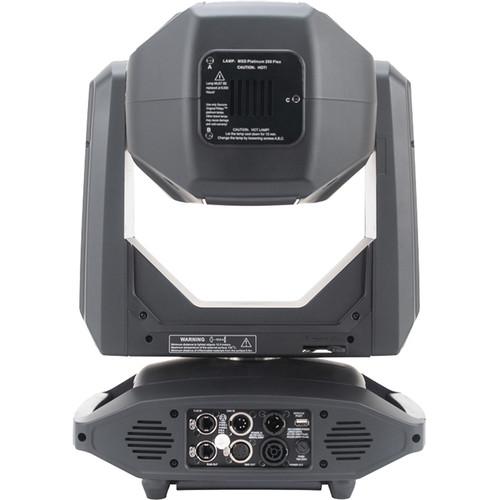

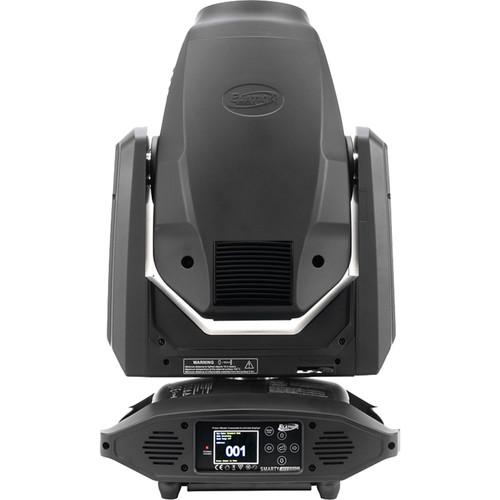

The Proteus Smarty Hybrid can be controlled by DMX, remote device management (RDM), Art-Net, and sACN protocol support. The rear panel offers a variety of IP65-rated input and output connections including 5-pin XLR, RJ45 etherCON, and Seetronic Powerkon. There is a 6-button control panel and full-color 180° reversible menu display. The Elation Professional Proteus Profile ships with mounting brackets and a power cord. -
- IP65 certified 3-in-1, beam, spot, wash hybrid fixture
- Flex lamp technology from 190 to 280W and lamp hibernation with up to 6000-hour lamp life
- Full CMY color mixing system
- Rotating and static gobos, dual prism, frost
- Zoom from 1° beam to 33° wash and autofocus option

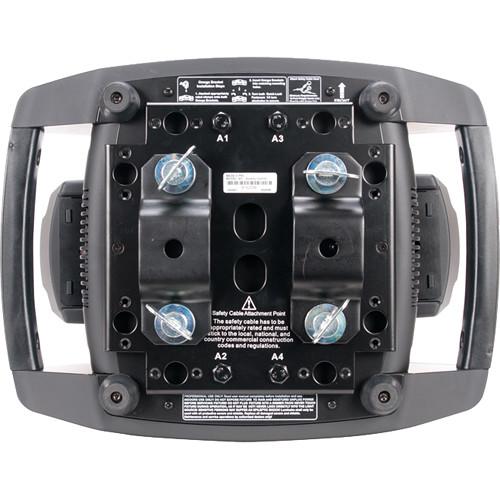

In the Box Elation Professional Proteus Smarty Hybrid Spot, Beam, & Wash LED Moving Head Fixture Set of Mounting Brackets Seetronic Powerkon Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Proteus Smarty Hybrid Spot, Beam, & Wash LED Moving Head Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Proteus Smarty Hybrid Specs | Light Source | Lamp: Philips MSD Platinum 200 Flex 280 W
Lamp Life: Up to 6000 Hours | | Photometric Data | Total Output:
11,000 lumens
128,426 lux at 49.2'/15m (Beam Mode) | | Effects | Beam, Spot, and Wash Modes
Motorized Zoom:
Beam: 1 to 18°
Spot: 3 to 27°
Wash: 5 to 33°
Full Frost Filter for Wash Effects
16-Facet and 5-Facet Linear Prisms
CMY Color, Gobo, and Prism Macros
Motorized Focus with Autofocus Feature
High-Speed Shutter and Strobe | | Color | Full CMY Color Mixing System
13 Colors Including Quad Color, CTO, CTB and UV | | Gobos | 2 Gobo Wheels
8 Rotating / Indexing Interchangeable Glass Gobos
12 Static, Stamped Metal Gobos | | Control and Connectors | 2 DMX Channel Modes
DMX, RDM, Art-NET, sACN Protocol Support
6 x Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
IP65 5-Pin XLR DMX In/Out
IP65 RJ45 etherCON In/Out
IP65 Seetronic Power In/Out
Wired Digital Communication Network | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Maximum 480 W | | Approvals | CE, cETLus | | Ratings | IP65 | | Dimensions (L x W x H) | 17.5 x 17.9 x 26.8" / 44.45 x 45.42 x 68.07 cm | | Weight | 71.1 lb / 32.2 kg |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
The discussion is empty - enter the first post
