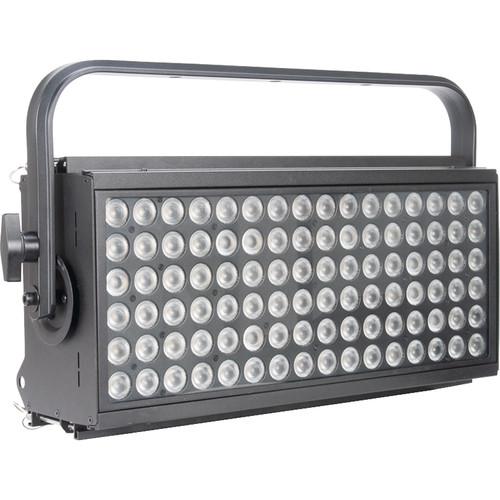

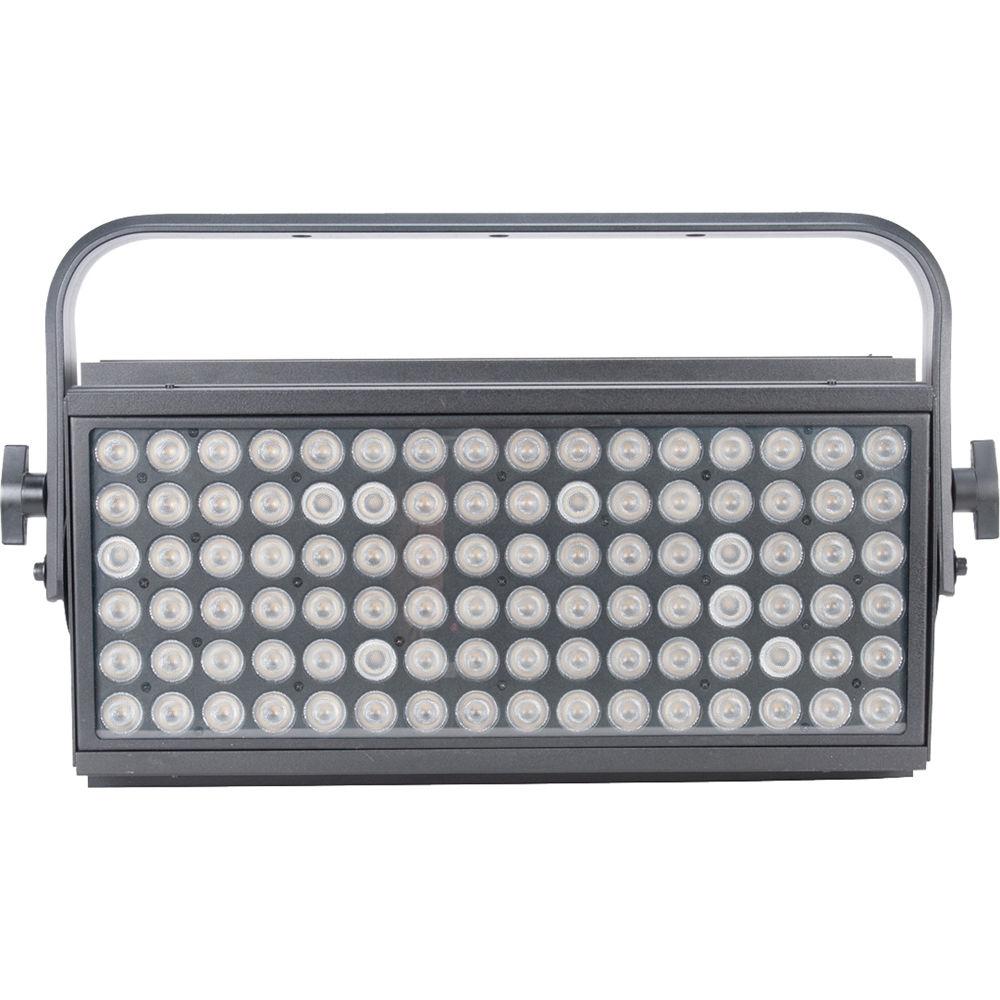

Product description The Elation Professional PROTRON ECLYPSE is a versatile high-powered IPX4 outdoor-rated color blinder, strobe, and wash luminaire, well suited for concerts, festivals, weddings, cruise ships, or any environmentally challenging application. The fixture utilizes 96 x 10W CREE RGBW 4-in-1 LEDs with a 31° beam / 63° field angles, which provides a total lumen output of over 27,000 Lumens.
Brilliant eye candy effects are capable via the selectable pixel mapping zones, with intensity, duration, rate, and FX control, as well as a super high-speed (1-25 fps) adjustable strobe. The luminaire can be controlled via DMX, RDM, Kling-NET, and Art-Net protocol support, with 8-/16-bit RGB and RGBW smooth color mixing modes.

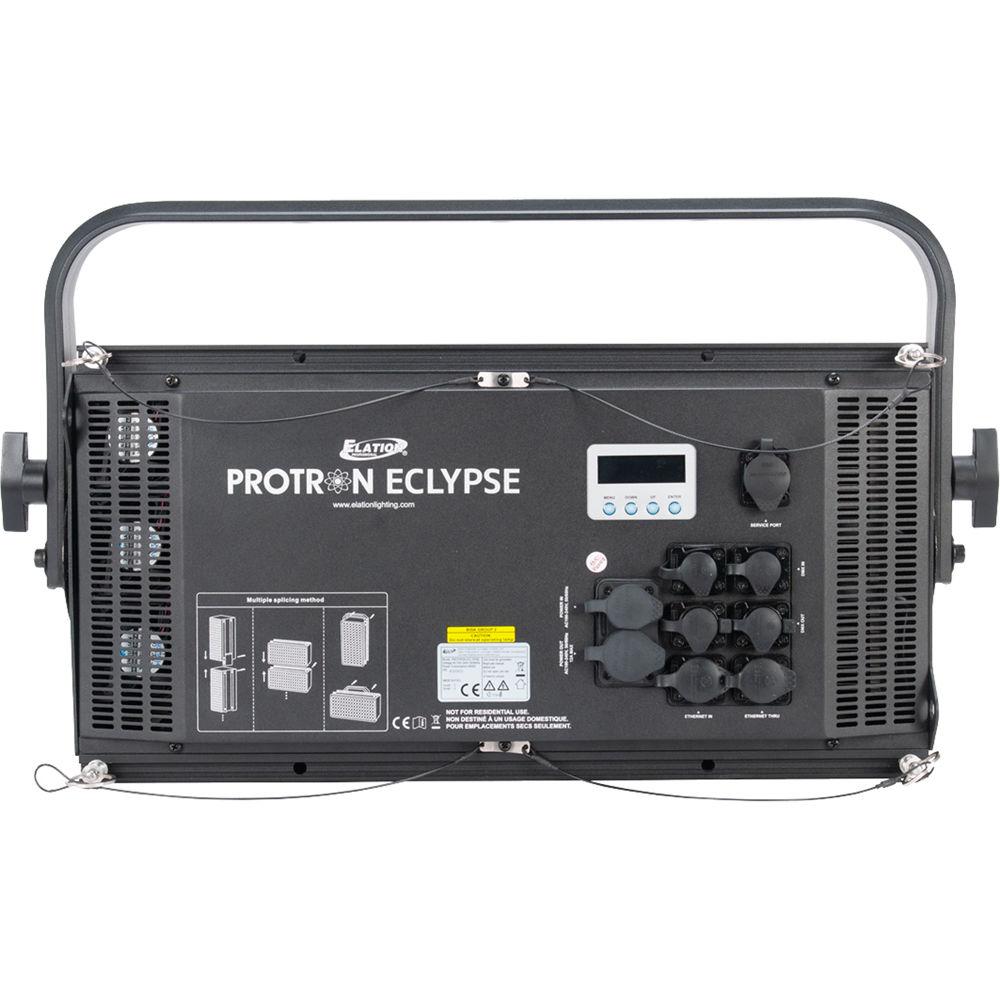

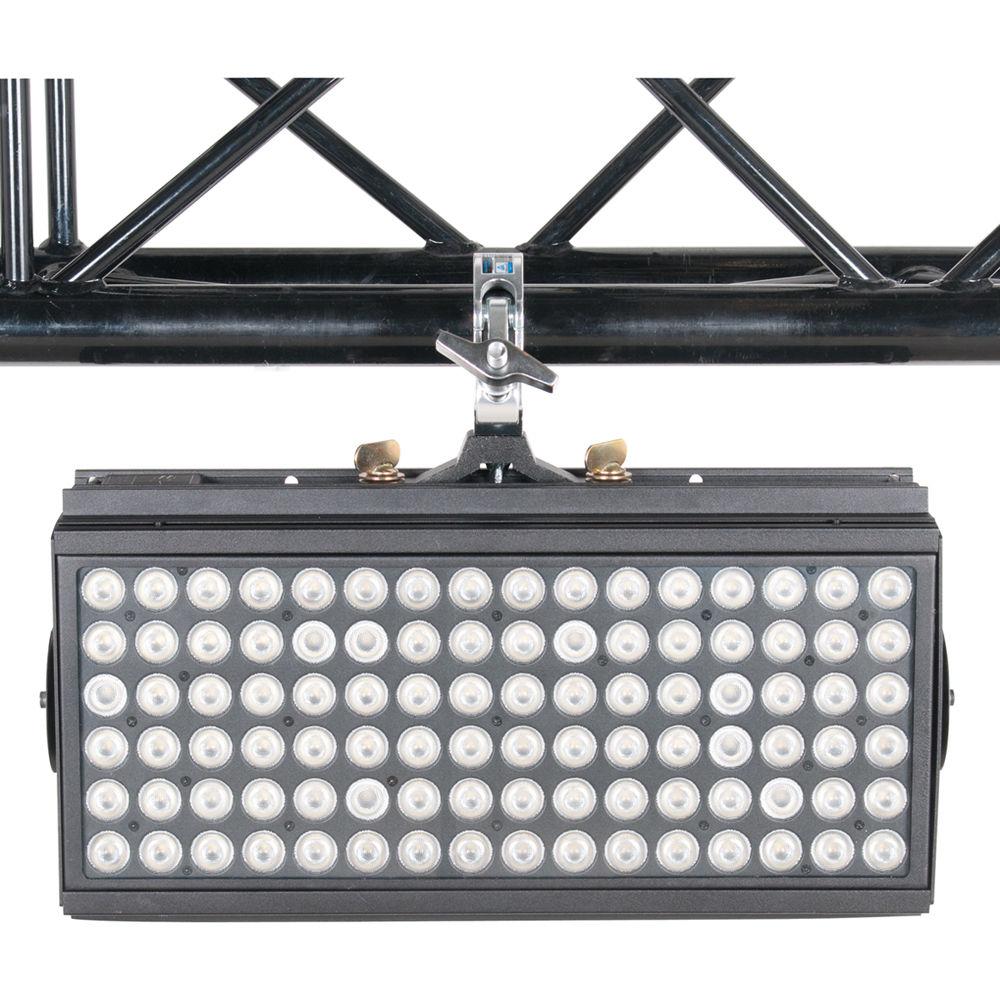

The fixture also features an adjustable/removable yoke bracket with 3-position holes and an interlocking system for connecting multiple units in a matrix design. The rear panel features a variety of connections including IP54 3-/5-pin DMX, RJ45 etherCON, and IP65 Seetronic power in/out connections, as well as a 4-button control pane with OLED menu display and a multi-voltage universal auto switching power supply (100-240v). The Elation Professional PROTRON ECLYPSE ships with an Omega bracket and a Seetronic IP65 power cable. -
- Versatile color blinder, strobe, and wash luminaire
- High-powered 1000W air cooled IPX4 outdoor rated
- 96 x 10W CREE RGBW 4-in-1 LEDs
- 31° beam / 63° field angles
- 27,000+ total lumen output
- Brilliant eye candy effects

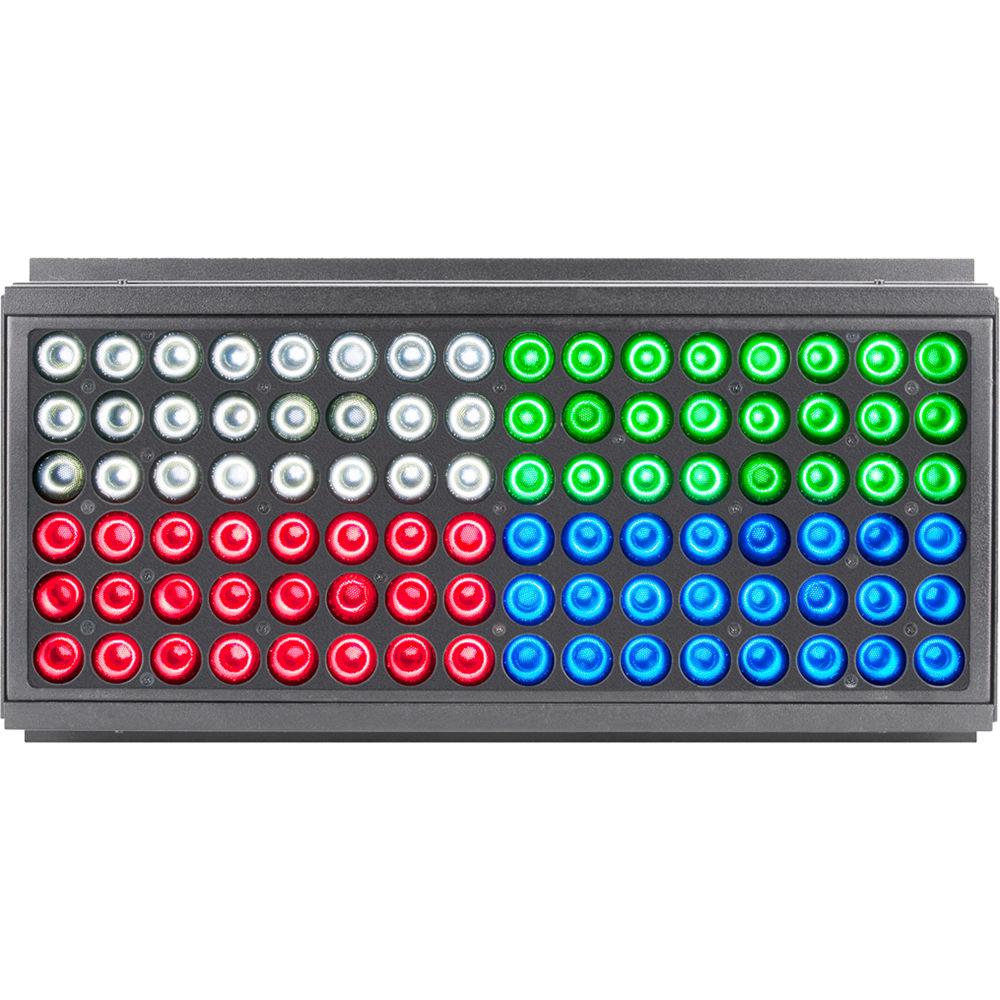

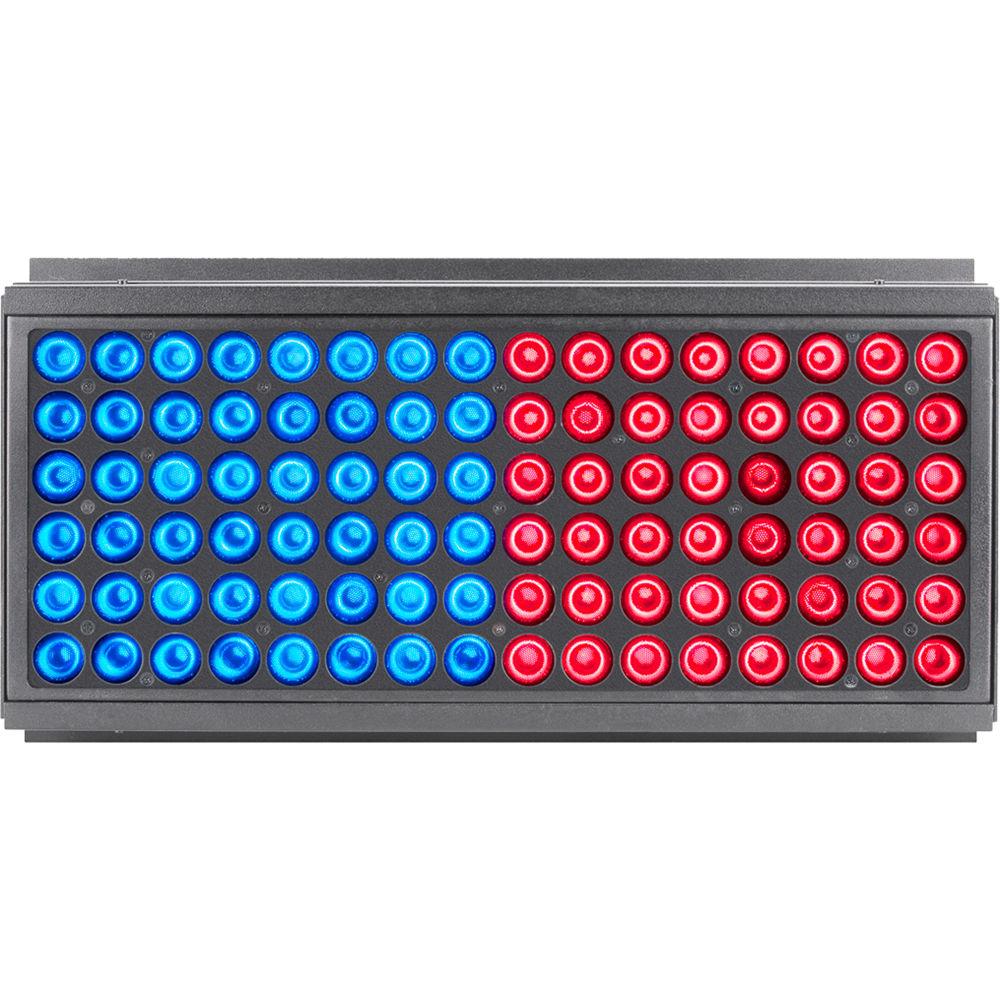

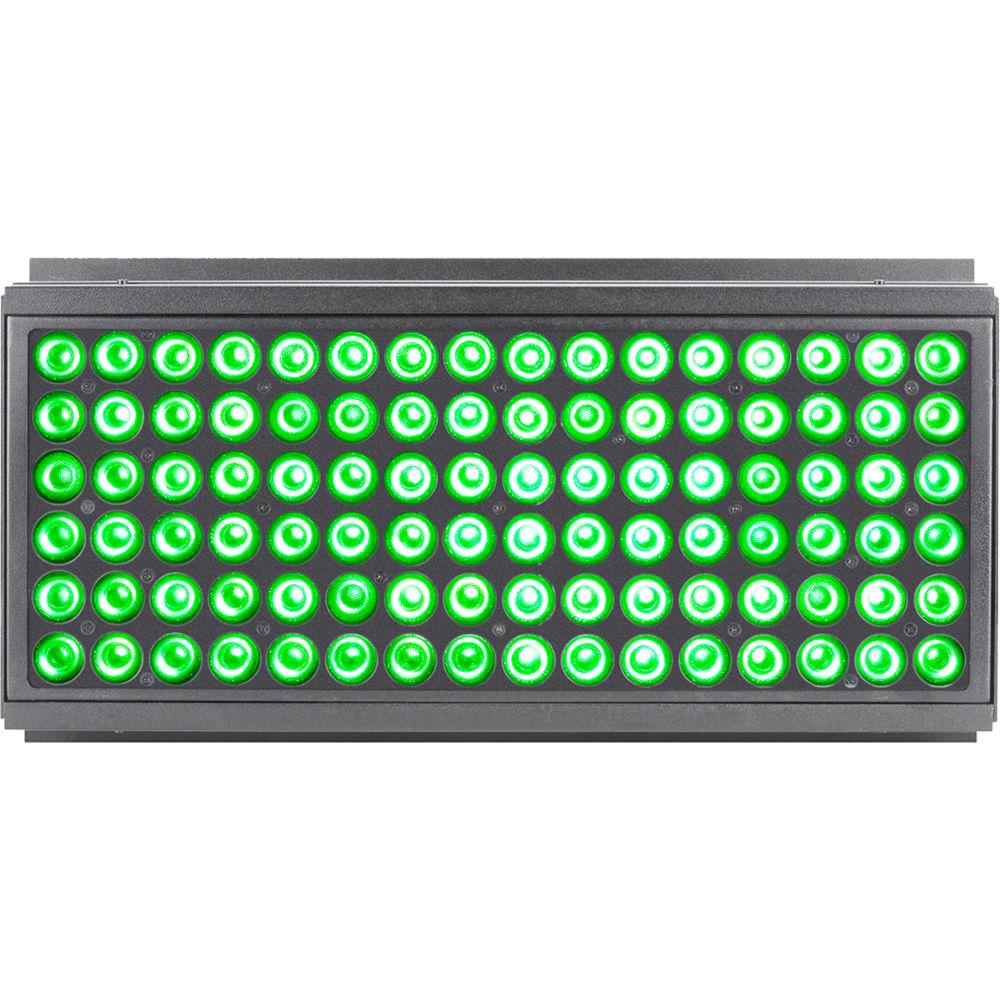

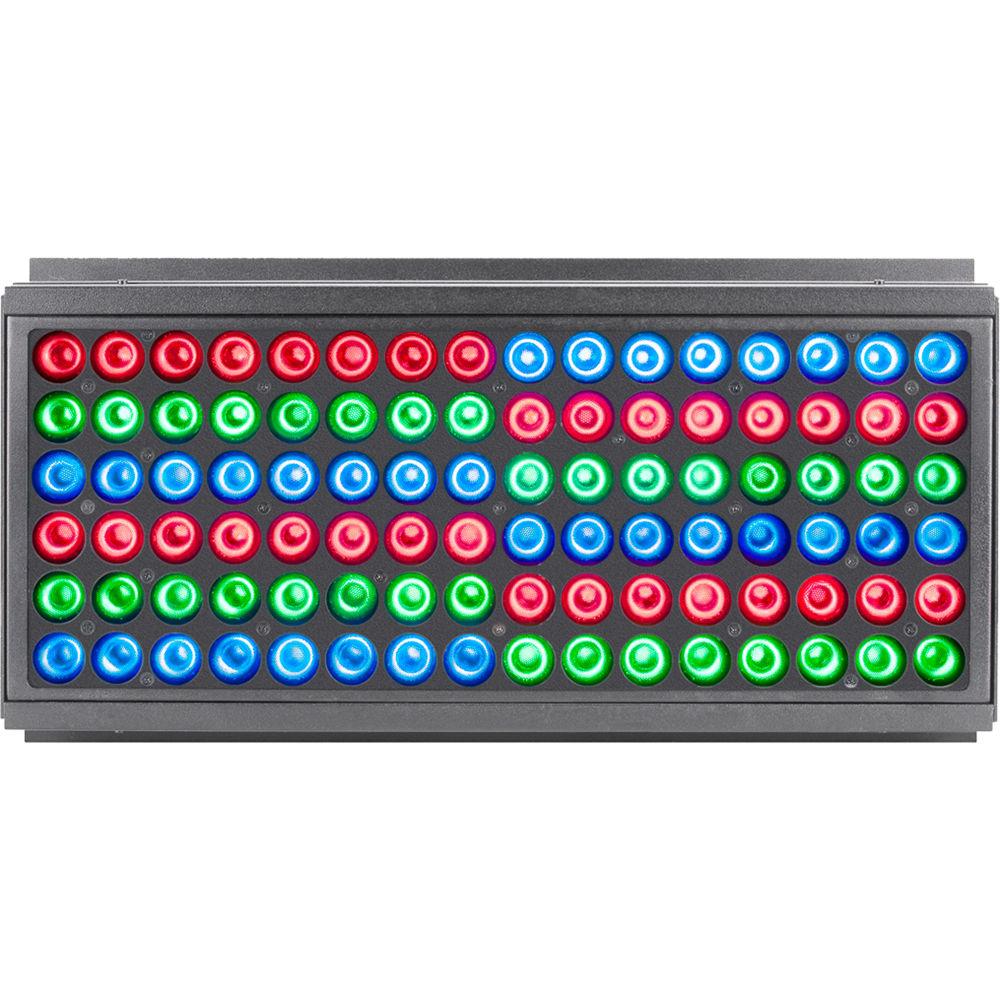

- Selectable pixel mapping control zones
- Strobe intensity, duration, rate, and FX control
- Super high-speed (1-25 fps) adjustable strobe
- DMX, RDM, Kling-NET and Art-NET protocol support
- 8-/16-bit RGB and RGBW smooth color mixing modes

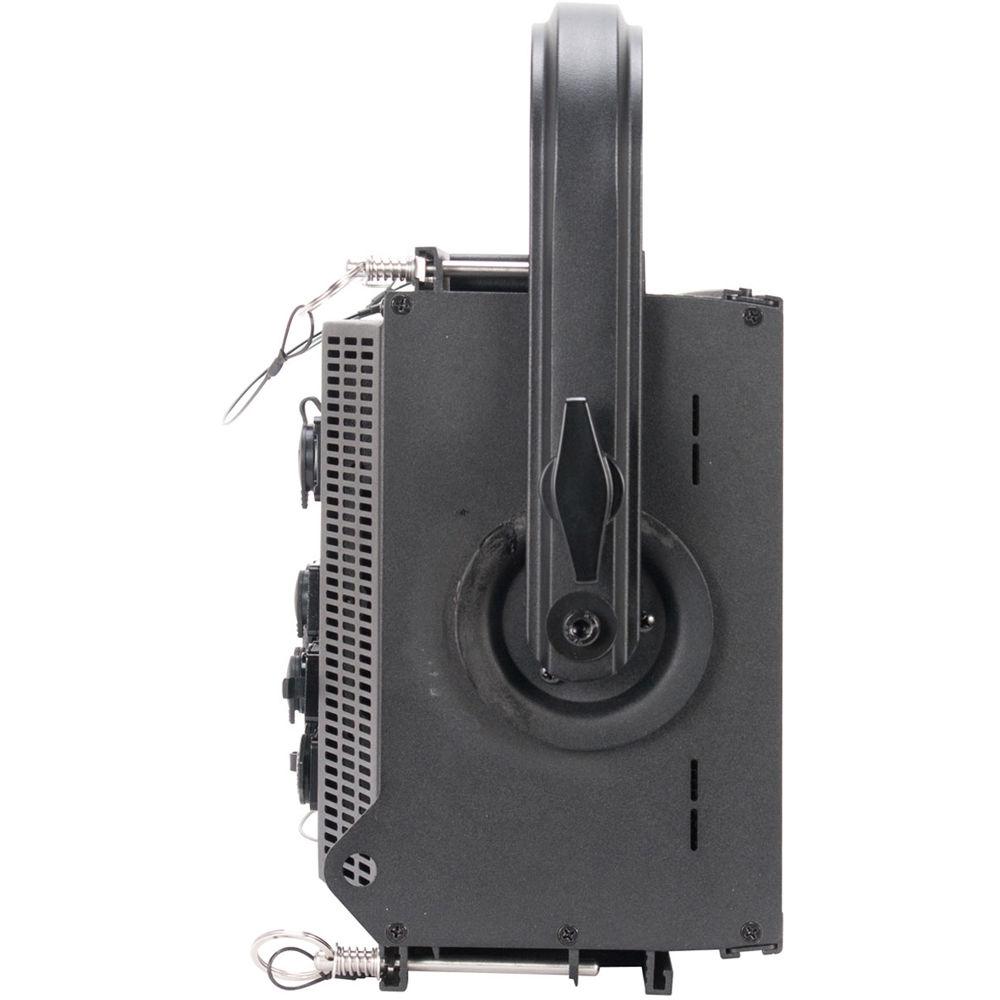

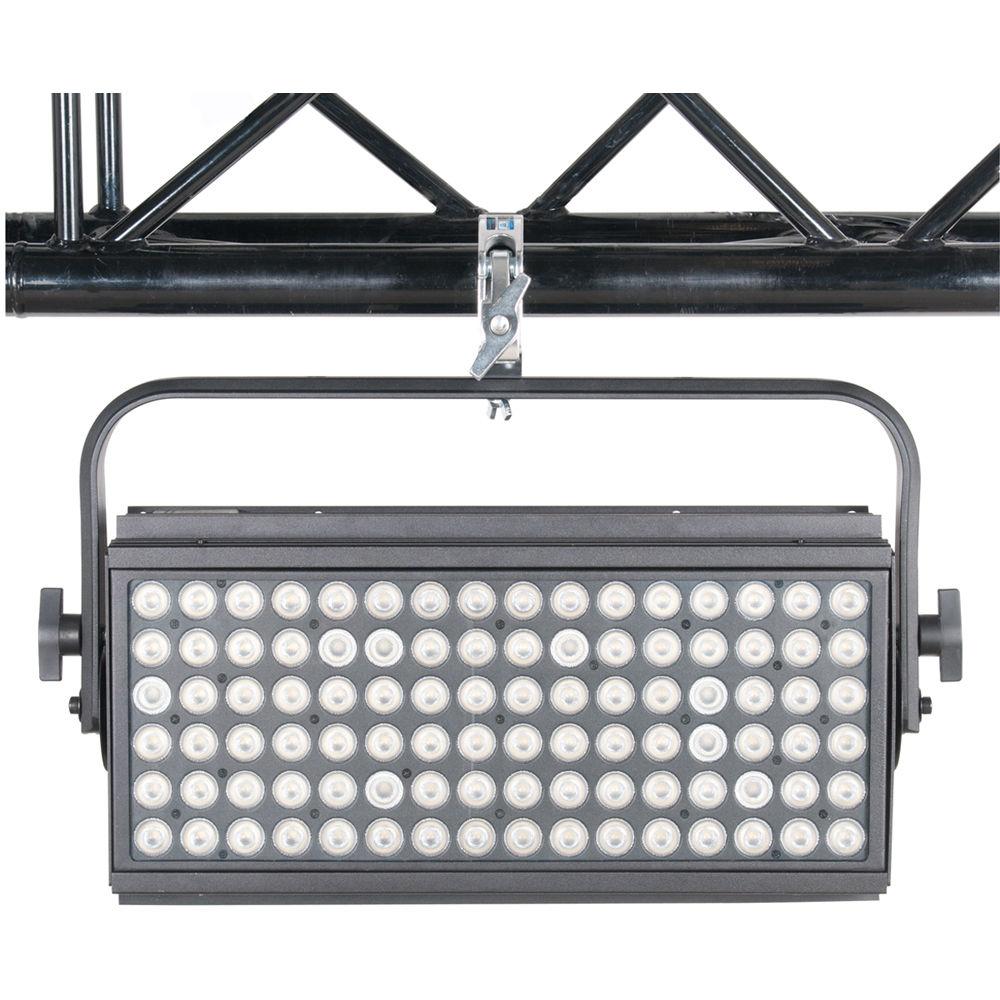

- Adjustable/removable yoke bracket with 3-position holes
- Interlocking system for multiple unit matrix designs
UPC: 837874008067 In the Box Elation Professional PROTON ECLYPSE 1000W Air-Cooled Color Blinder, Strobe, and Wash Luminaire Omega Bracket Seetronic IP65 Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional PROTON ECLYPSE 1000W Air-Cooled Color Blinder, Strobe, and Wash Luminaire in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Protron Eclypse Specs | Source | 96 x 10 W CREE 4-in-1 RGBW LEDs
Lamp Life: 15,000 Hours | | Photometric Data | 31° Beam / 63° Field Angles
27,000+ Total Lumen Output | | Effects | Color Blinder, Strobe, and Wash
Brilliant Eye Candy Effects
Selectable Pixel Mapping Control Zones
Strobe Intensity, Duration, Rate, and FX Control
Super High Speed (1-25 fps) Adjustable Strobe
8-/16-Bit RGB and RGBW Smooth Color Mixing Modes | | Color | Red, Green, Blue, White | | Control and Connectors | Multiple DMX Channel Modes (24 Total Channels)
4-Button Touch Control Panel with OLED Menu Display
DMX, RDM, Kling-NET, and Art-NET Protocol Support
IP65 3-/5-Pin DMX and RJ45 etherCON In/Out
IP65 Seetronic Power In/Out
Fixture-to-Fixture Interlocking Alignment Pins/Locks | | Approvals and Ratings | CE, IPX4 | | Temperature | 14 to 113°F / -10 to 45°C | | Power | Power Supply: 100 to 240 VAC, 50/60 Hz
Max Power Consumption: 843 W | | Dimensions | 24.9 x 7.0 x 14.4" / 63.2 x 17.7 x 36.5 cm | | Weight | 34.6 lb / 15.7 kg |
