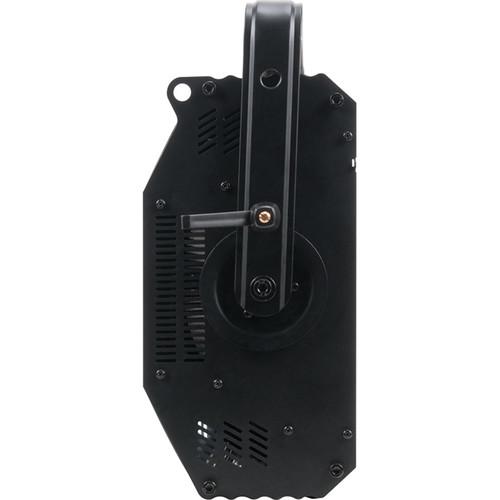

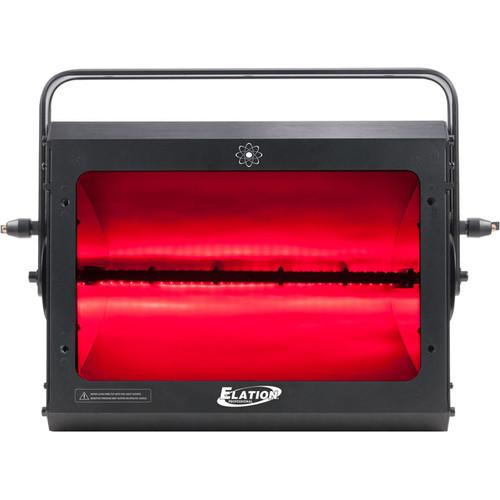

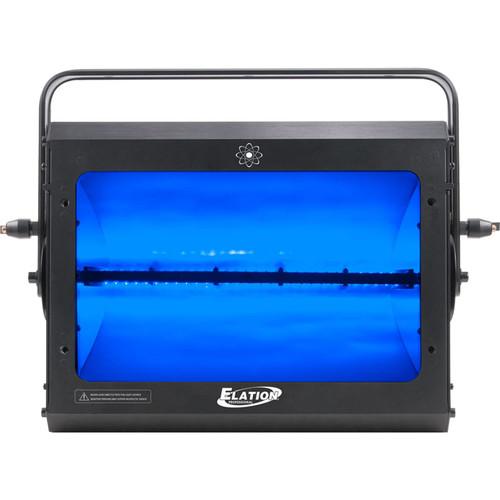

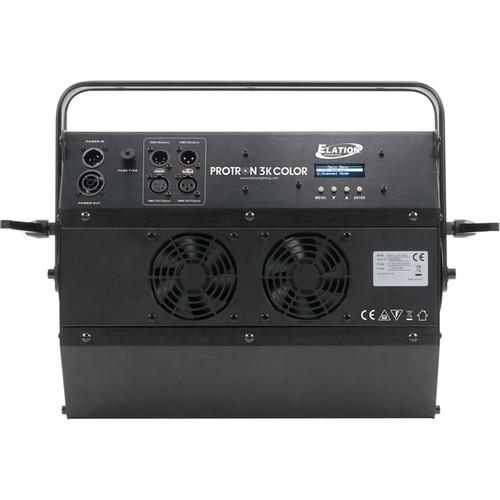

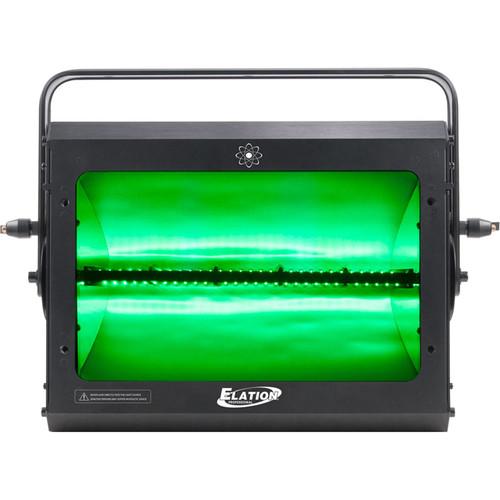

Product description The Protron 3K Color Strobe from Elation Professional is a high-powered LED strobe featuring 240 CREE XLamp 3W R/G/B/W LEDs (60 each color), 40,000 total peak lumens, a 63° beam angle, and various strobe effect macros including burst, pulse, lightning, and full on mode. It also features two power modes, two silent cooling fans, electronic dimming, XLR 3- and 5-pin in/out connectors, powerCON TRUE1 in/out connectors, a 4-button OLED control menu display, and an integrated rigging yoke. Its maximum power consumption is 800W, and it comes with an integrated universal auto-switching power supply. -
- 240 CREE XLamp 3W R/G/B/W LEDs
- Maximum brightness of 40,000 lumens
- Beam angle of 63°
- 4-button control panel
- OLED menu display
- High and Low power modes
- Electronic dimming
- Burst, pulse, lightning, and full on effects
- Two silent cooling fans
- Thermal protection dims output if necessary
UPC: 837874019551 In the Box Elation Professional Protron 3K Color RGBW LED Strobe powerCON TRUE1 Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Protron 3K Color RGBW LED Strobe in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Protron 3K Specs | Light Source | 240 x R/G/B/W LEDs, 3W | | LED Configuration | 60 x red, 60 x green, 60 x blue, 60 x white | | Life Expectancy | 50,000 hours | | Beam Angle | 63° | | Maximum Brightness | 40,000 lumens | | Illuminance | 63° (Full On): 12,210 lux / 1,134 fc @ 3.3' (1 m) | | Color Mixing | RGBW, standalone | | Dimmer | Electronic | | Shutter/Strobe | Electronic | | Strobe Rate | 0.3 - 25 Hz | | Protocols | DMX | | DMX Connectors | Input: XLR 3-pin, XLR 5-pin
Output: XLR 3-pin, XLR 5-pin | | DMX Channel Modes | 3, 5, 7, or 8 channels | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-sensing) | | Power Connectors | Input: powerCON TRUE1
Output: powerCON TRUE1 | | Power Linking | 120 V: 2 x units
230 V: 4 x units | | Power Consumption | 800 W maximum | | IP Rating | IP20 | | Working Position | 360° | | Display/Controls | OLED display with 4-button interface | | Ambient Temperature | 13°F / 40°C | | Mounting | Single yoke | | Approvals and Certifications | CE | | Dimensions (L x W x H) | 19.9 x 5.9 x 14.1" (50.6 x 15.0 x 35.7 cm) | | Weight | 24.3 lb (11.0 kg) |
