User Manual for Elation Professional Protron 3K LED Strobe Click to enlarge the picture
Contents of the user manual for the Elation Professional Protron 3K LED Strobe
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
 |
User manual for the Elation Professional Protron 3K LED Strobe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

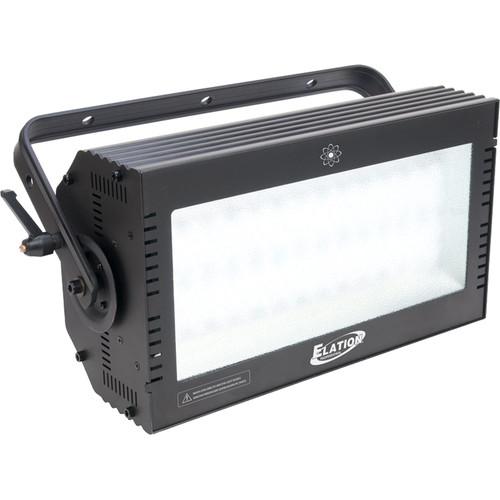

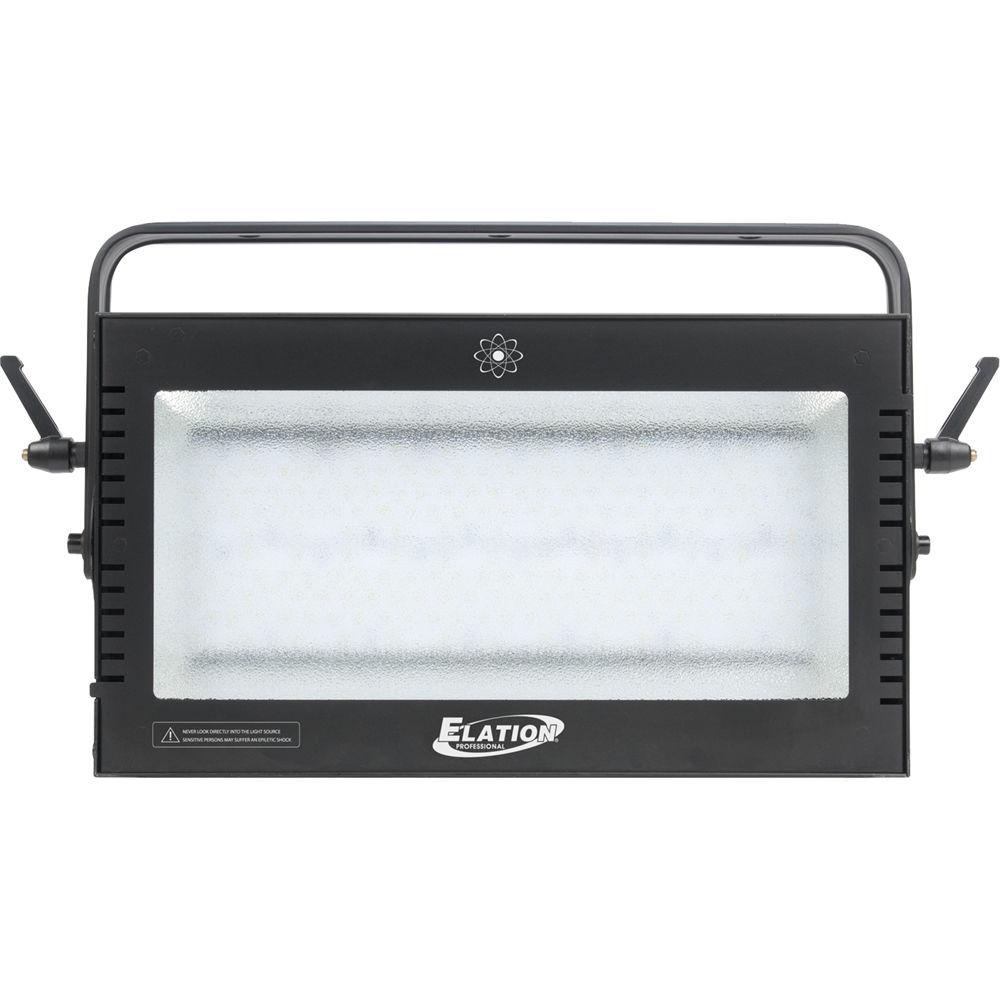

Product description The Protron 3K LED Strobe from Elation Professional is a high-powered strobe light fixture with 202 Cree 3W cool-white LEDs. It produces a flux of 80,000 lumens and a 120° beam. Electronic dimming and strobe effect macros including burst, pulse, lighting, and full-on are also offered by the strobe.

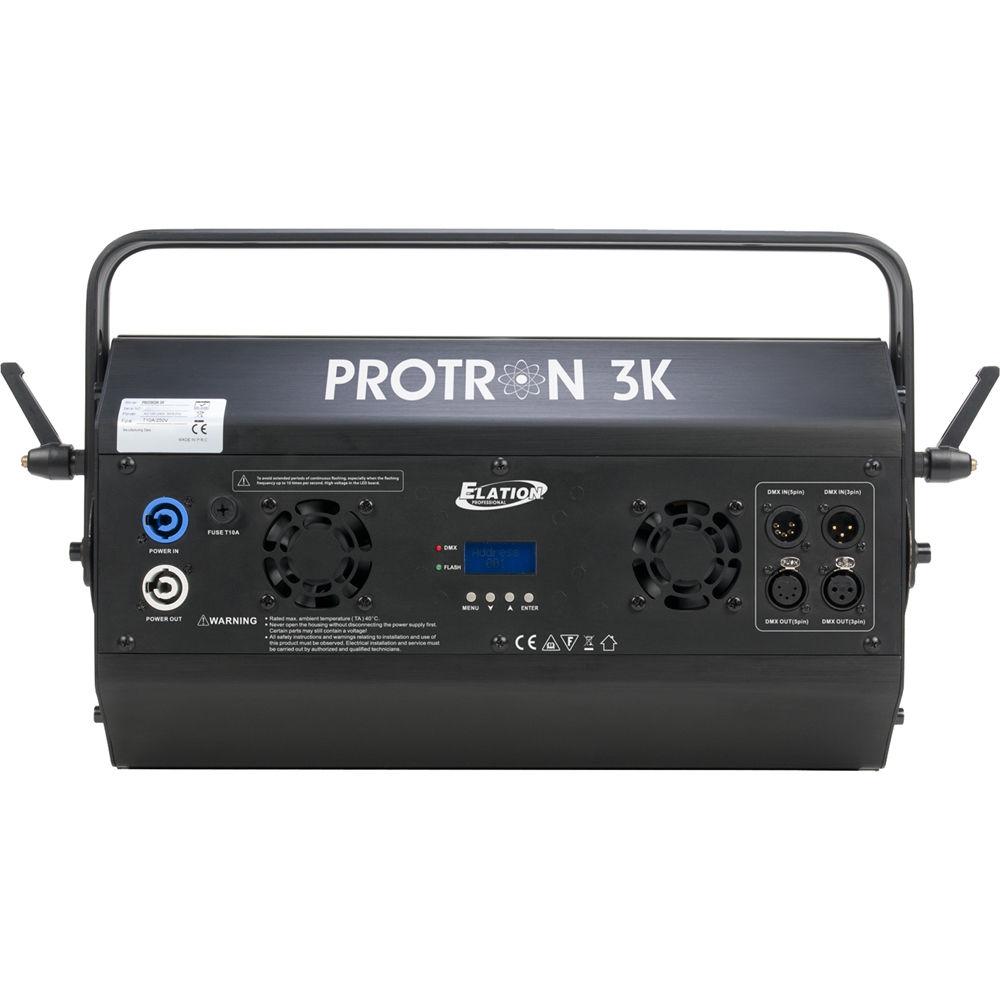

The strobe incorporates a four-button control panel and an LCD menu display. It features three- & five-pin XLR connectors and four DMX channel modes (1, 2, 3, and 4 channels) which enable you to control varying levels of features.

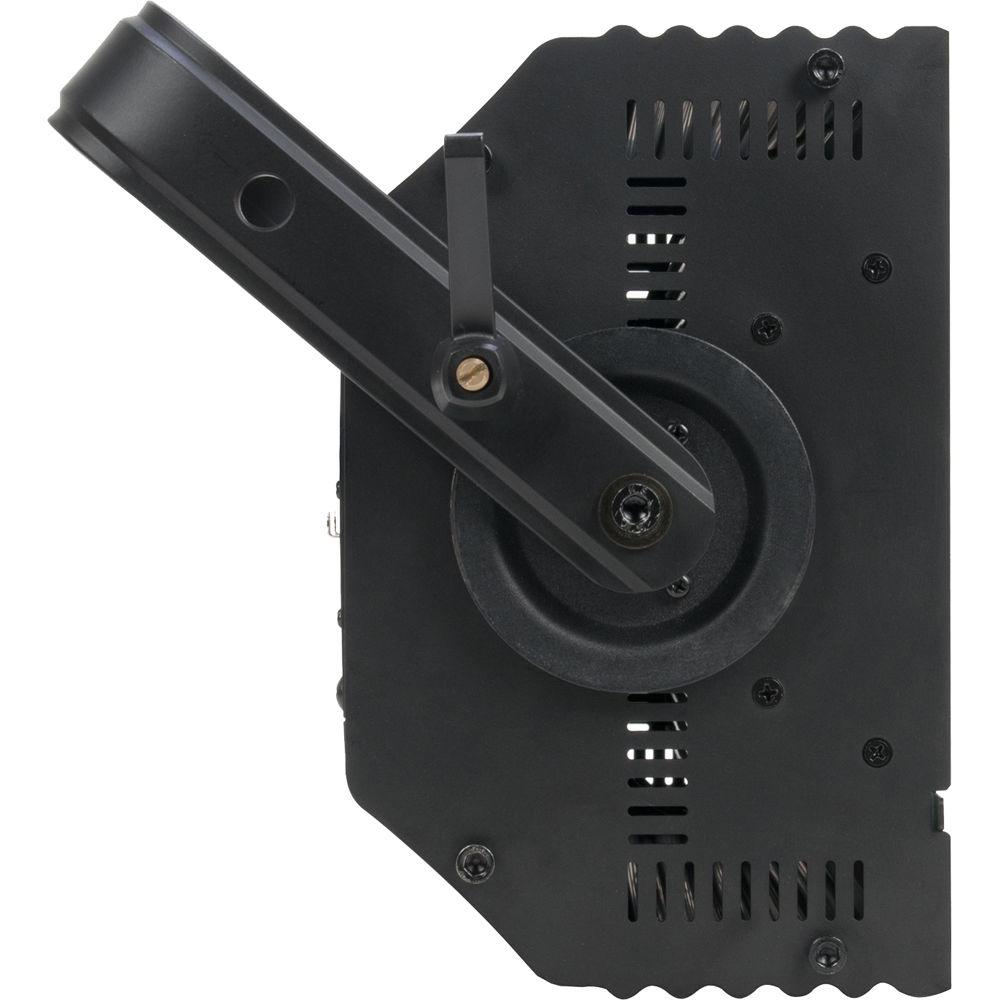

The fixture features a powerCON input and an internal auto-switching power supply. It is compatible with 100 - 240 VAC outlets and has a maximum power consumption of 900W. The Protron can be mounted using the integrated rigging yoke (clamps sold separately). - Electronic dimming, burst, pulse, lighting, and full-on
- Four-button control panel
UPC: 837874018318 In the Box Elation Professional Protron 3K LED Strobe powerCON Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Protron 3K LED Strobe in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Protron 3K Specs | Lamp | 202 x Cree 3 W LEDs | | Color | Cool white | | Average Lamp Life | 50,000 h | | Beam Angle | 120° | | DMX Connectors | 1 x 3-pin XLR male, DMX in
1 x 3-pin XLR female, DMX out
1 x 5-pin XLR male, DMX in
1 x 5-pin XLR female, DMX out | | DMX Channels | 1, 2, 3, & 4-channel modes | | Photometric Data | 16,450 lux (1,528 fc) @ 3.3' (1 m) 120° full-on | | Lumens | 80,000 | | Effects | Electronic dimming
Strobe-effect macros (burst, pulse, lighting, full-on) Thermally regulated output allows full-on for up to 10 seconds | | IP Rating | IP 20 | | Power Connection Type | 1 x powerCON, power in
1 x powerCON, power out | | Max Ambient Temp | 113°F (40°C) | | Power Linking | 2 units @ 120 VAC | | Power Supply | 100 - 240 VAC, 50 / 60 Hz, auto-switching | | Power Consumption | 900 W max. | | Cooling | 2 x Silent fans | | Power Management Modes | 1 x Low
1 x High | | Rigging Points | Integrated yoke | | Working Position | Any (360°) | | Approvals | CE | | Dimensions | 21.5 x 6.0 x 11.7" (546 x 154 x 296 mm) | | Weight | 17.2 lb (7.8 kg) |
