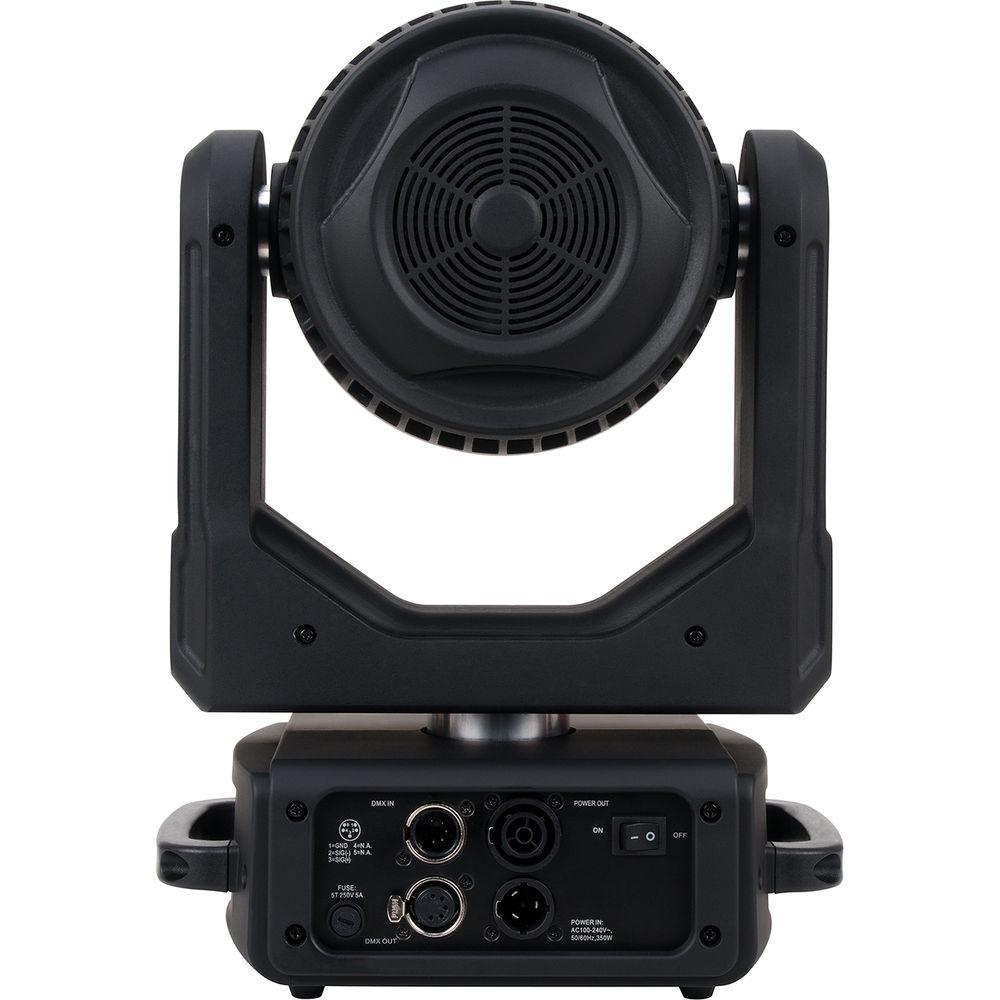

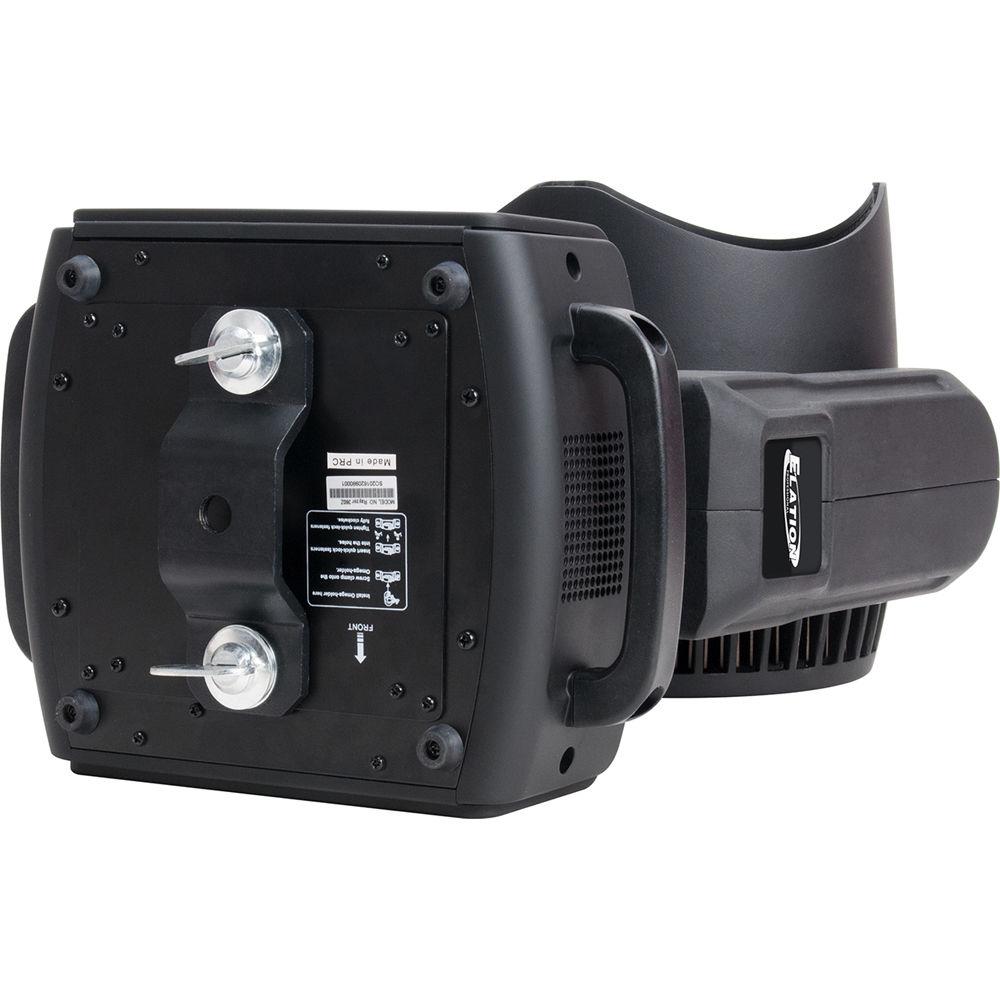

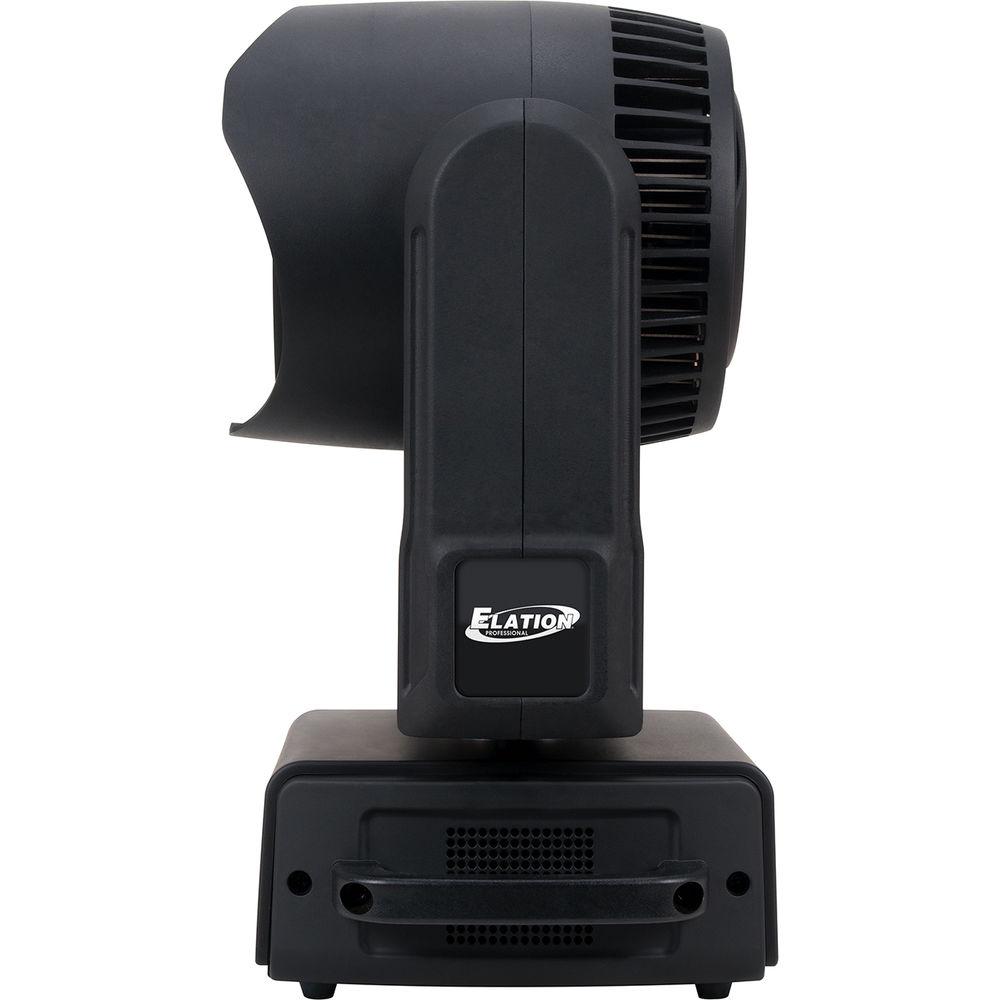

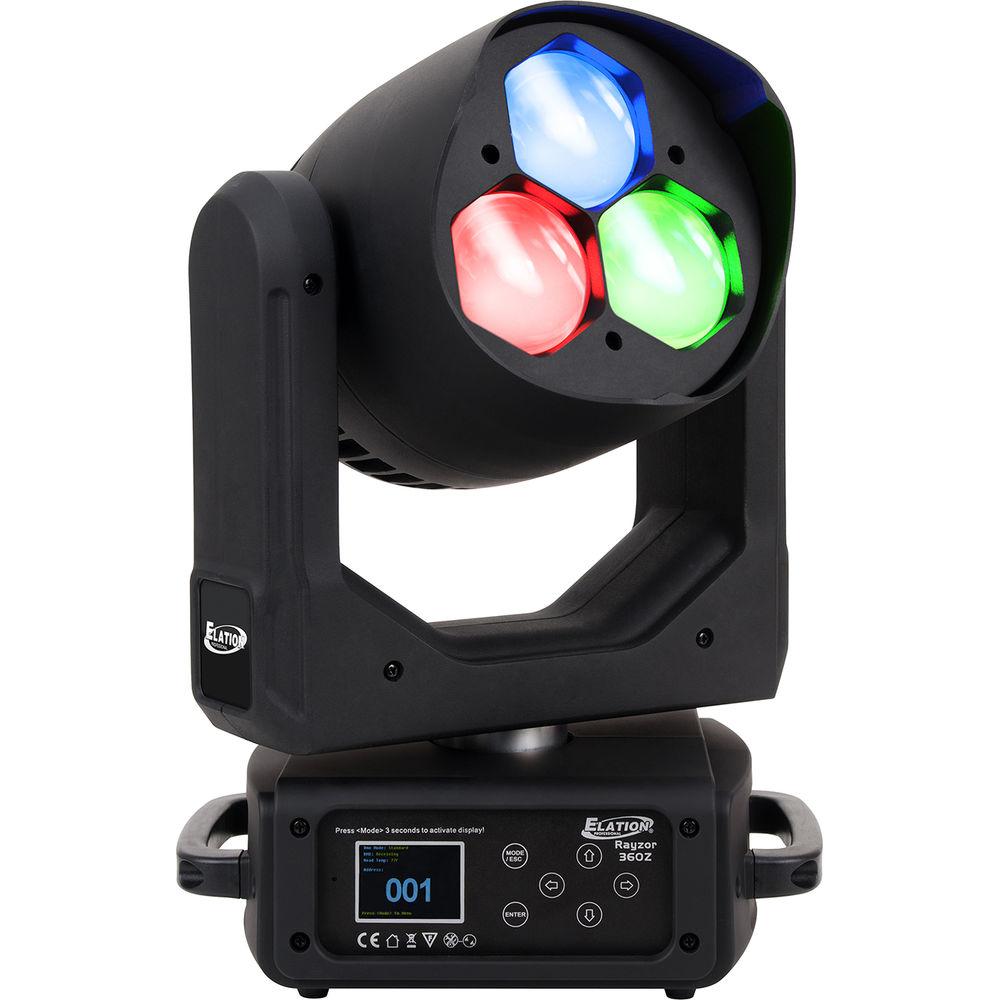

Product description The RAYZOR 360Z Moving-Effect Luminaire from Elation Professional is a compact beam-moving effect luminaire with three 60W Osram RGBW LEDs. Features include pixel control, adjustable color temperature of 2700 to 8000K, electronic strobe, dimmer, and selectable dimming curve effects. For controlling, the head supports DMX, RDM (Remote Device Management), and Art-NET protocol. Additionally, it features a 7-button full color 180° reversible menu display. It comes equipped with a 5-pin XLR, RJ45 etherCON, and powerCON TRUE1 in/out connectors. - 5 to 50° motorized zoom and pixel control
- Fast and precise 16-bit continuous 360° pan/tilt rotation
- Linear color temperature presets (2700 to 8000k)
- Multiple unit power linking
- Adjustable refresh rate frequency and gamma
- Multi-voltage universal auto-switching power supply
- Flicker-free operation for TV and film applications
UPC: 837874001792 In the Box Elation Professional RAYZOR 360Z Moving-Effect Luminaire Limited 2-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional RAYZOR 360Z Moving-Effect Luminaire in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Rayzor 360Z Specs | Lamp | 3 x 60 W Osram RGBW (red, green, blue, white) LEDs | | Lamp Life | 50,000 hour average | | Beam Angle | 5° to 50° | | Photometric Data | 28,020 lux 2603 fc at 6.6' (2 m) with 8° min zoom, full on
545 lux 51 fc at 6.6' (2 m) with 77° max zoom, full on | | Color | RGBW | | DMX Connectors | 5-pin XLR DMX in/out | | DMX Channels | 3 x DMX | | Color Temperature | 2700 to 8000K | | Effects | RGBW color mixing and pixel control
8 x color preset
8 x chase macros
Electronic strobe and variable dimming curves | | Pan/Tilt | 360° continuous | | Refresh Rate | 900 to 25,000 Hz | | Gamma Adjustment | 2.0, 2.2, 2.4, 2.8 | | Control | 6-button touch control panel | | Movement | Adjustable Movement: 8-/16-bit resolution | | Display | Full color 180° reversible LCD | | Ethernet | RJ45 etherCON in/out (KlingNET/Art-NET) | | Power Connection Type | powerCON TRUE1 in/out | | Power | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Not specified by the manufacturer | | Storage Temperature | 5 to 113°F (-15 to 45°C) | | Approvals | CE, RoHs | | Ratings | IP20 | | Rigging Points | Not specified by the manufacturer | | Dimensions | 10.6 x 11.1" (270 x 282.4 mm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 24.5 lb | | Box Dimensions (LxWxH) | 19.0 x 14.0 x 11.0" |
