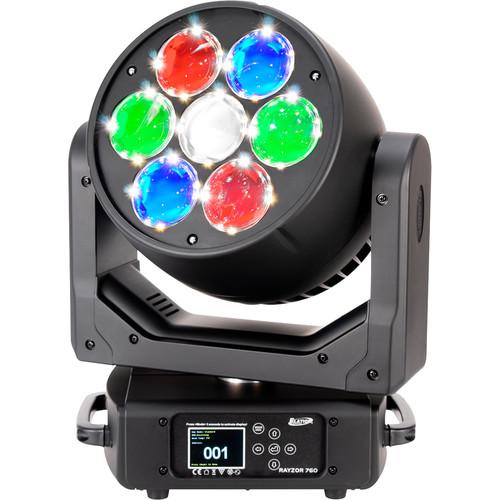

Product description The black Elation Professional Razor 760 is a professional wash/beam moving head LED fixture, well suited for special events and concerts, as well as TV and film production. The fixture features seven 60W Osram RGBW LEDs and twenty-eight 2W white SparkLEDs with full pixel control over each LED, and advanced optics delivering 8000K total lumens, plus fast and precise 360° pan and tilt motion. With its wide zoom range from 5 to 77°, the Razor 760 provides intense and well-defined mid-air beams, as well as wide and even wash coverage, making it a remarkable tool for any application.
The patent-pending SparkLED technology strategically places the 28 individual white LEDs inside the lens itself to create an additional layer, allowing designers access to a new and innovative way of creating interest on the stage. SparkLEDs are controllable by the lighting console or driven by a multitude of internal FX patterns.
The Razor 760 can be controlled by DMX (3 channel modes), remote device management (RDM), Art-NET, and sACN protocol support. The rear panel offers a variety of input and output connections including 5-pin DIN, RJ45 etherCON, and powerCON TRUE1. There is a 6-button control panel and full color 180° reversible menu display. The Elation Professional Razor 760 ships with a mounting bracket and a power cord. -
- Beam FX and smooth wash fixture in a compact housing
- Seven 60W OSRAM RGBW LEDs with pixel control
- Twenty-eight 2W SparkLEDs with pixel control (patent pending)
- Zoom: 5° for mid-air beam to 77° for even washes
- Fast and precise 360° continuous pan and tilt rotation
- Linear color temperature presets (2700 - 8000K)
- RGBW color mixing and pixel control
- Color presets and macros
- Electronic strobe and variable dimming curves
- 16-bit dimming
In the Box Elation Professional Rayzor 760 SparkLED Moving Head Wash Light (Black) Mounting Brackets powerCON TRUE1 Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Rayzor 760 SparkLED Moving Head Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Rayzor 760 Specs | Light Source | 7 x 60W Osram RGBW LEDs
28 x 2W White TwinkLED
Average LED Life: 50,000 Hours | | Photometric Data | Total Output: 8000 lumens | | Effects | 5 to 77° Beam Zoom Angle
Linear Color Temperature Presets (2700 - 8000K)
RGBW Color Mixing and Pixel Control
White SparkLED Lens Effect
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-Bit Dimming | | Control and Connectors | 3 DMX Channel Modes
360° Continuous Pan and Tilt Movement
DMX Adjustable Refresh Rate (900 -25000 Hz)
6-Button Touch Panel
Full Color 180° Reversible LCD Menu Display
RDM Support
5-Pin XLR DMX In/Out
RJ45 EtherCon In/Out (Art-Net, sACN)
PowerCON TRUE1 Power In/Out
USB Connection (Firmware Updates)
With Wired Digital Communication Network | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Maximum 600 W | | Approvals | CE | | Ratings | IP20 | | Dimensions (L x W x H) | 13.5 x 10.3 x 16.3" / 342.9 x 261.6 x 414.8 mm | | Weight | 24.3 lb / 11.0 kg |
