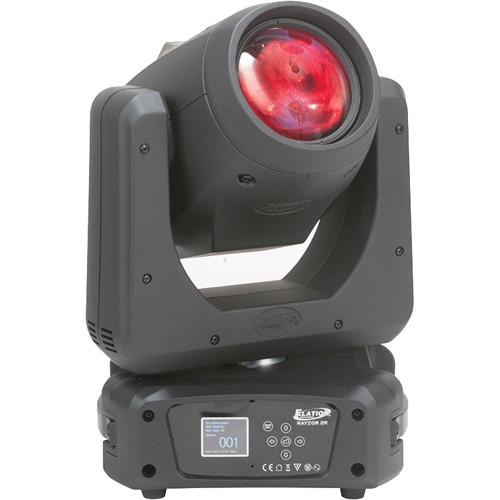

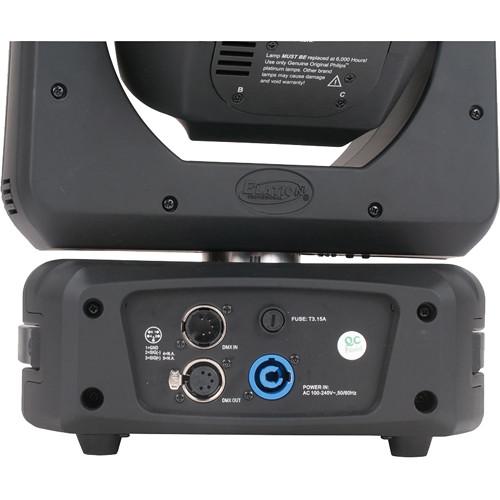

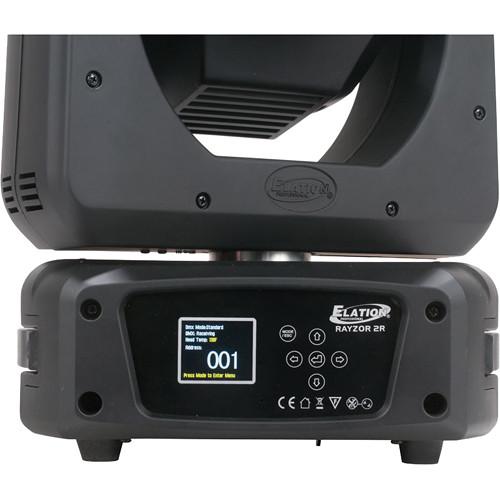

Product description The Rayzor Beam 2R Luminaire from Elation Professional features the 132W Platinum 2R lamp, a 3° sharp narrow beam, 8-facet rotating prism, and super fast 16 bit 3-phase pan/tilt motors. Also, there is a variable strobe mode and 0-100% dimming as well as 13 dichroic colors including UV, CTO, CTB, plus white and 14 static gobos including 6 multi-sized beams. The luminaire features flicker-free operation for TV and film, remote device management protocol support, and both 5-pin in/out DMX and powerCON in/out connections. there is also a 6-button touch control panel and for power the light has a 230W max power consumption and utilizes a multi-voltage universal auto switching power supply. - CTO & CTB color correction
- Pans 540/630° and tilts 270°
- Rotating 8-facet prisms and macros
- Strobe settings from 1-13 fps
- 13 dichroic colors including UV, CTB, CTO, and white
- 14 static gobos including 6 multi-sized beams
- 16-bit 3-phase pan and tilt motors
- RDM (Remote Device Management) support
- Photometrics
- 4596 fc (49470 lux) at 49.2' (15 m)
1784 fc (19200 lux) at 82' (25 m) UPC: 837874017380 In the Box Elation Professional Rayzor Beam 2R Luminaire Omega Bracket 5-Pin XLR Cable Safety Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Rayzor Beam 2R Luminaire in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Rayzor Beam 2R Specs | Lamp | Philips Platinum 2R 132 W lamp | | Lamp Life | 6,000 hours | | Color Temperature | 7,500 K | | CRI | 75 | | Beam Angle | 3° | | Pan | 540/630° | | Tilt | 270° | | Dimming | 0-100% | | Device Management | RDM (Remote Device Management) | | DMX Connectors | 5-pin DMX in
5-pin DMX out | | DMX Channels | 10, 12, or 16 channels | | Power Connection Type | powerCON in
powerCON out | | Power Requirements | 100-240 VAC, 50/60 Hz | | Power Consumption | 230 W max | | Certifications | CE, cETLus pending, IP20 | | Operating Conditions | 14 to 113°F (-10 to 45°C) | | Rigging Points | Omega bracket | | Working Position | Flat surface / inverted (180°) | | Dimensions | 11.6 x 9.6 x 16.6" (295 x 245 x 421 mm) | | Weight | 23 lb (10.4 kg) |
