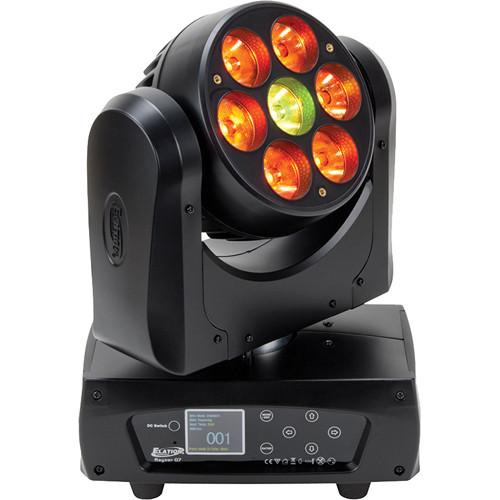

Product description The Rayzor Q7 LED Fixture from Elation Professional is an LED light fixture designed for use on stage, in theaters, and in similar venues. The fixture features seven 15W Quad color RGBW LEDs allowing for color mixing. The Rayzor Q7 also features eight color macros, four zone chase effects, and high-speed three-phase motor technology. It connects to a DMX controller via the 5-pin DMX in and can be daisy-chained via the 5-pin DMX out.

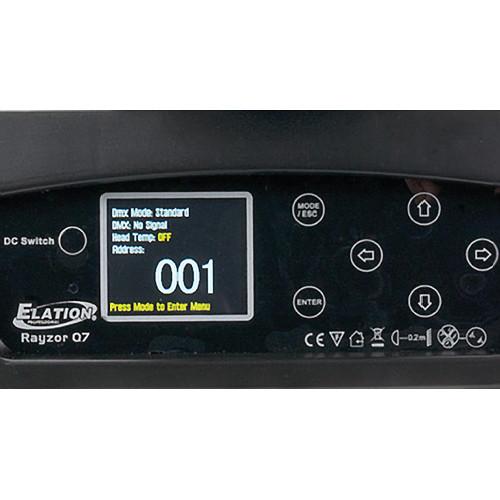

You can configure the Q7 from the console via the RDM (remote device management) option, or by using the fixture's six-button control panel and full color 180° reversible menu display. Its flicker-free operation makes the unit suitable for TV and film applications. The three available DMX modes, (15 / 17 / 29 channels) enable you to use more or less of the fixture's various features.

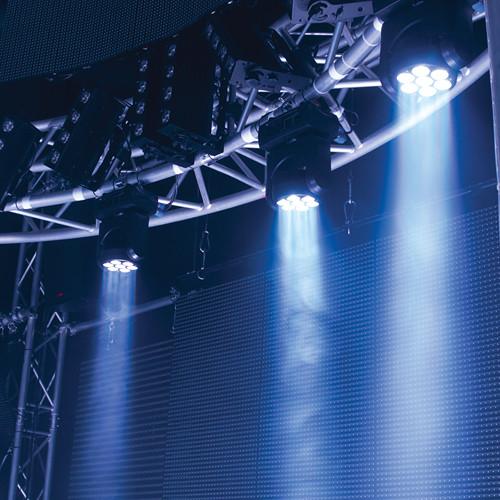

The unit features a powerCON input, and is powered by an internal auto-switching power supply. It is compatible with 100 - 240 VAC outlets and has a maximum power consumption of 140W. The powerCON output allows you to power-daisy-chain the power supply to additional units. The fixture allows for versatile mounting options on lighting rigs by connecting the included Omega bracket to a clamp (not included). - 16-Bit resolution movement
- Three-phase motor technology
- Eight auto program chase effects
- Standalone and master/slave operation options
- Microphone for sound activated programs
- Six-button touch control panel
- RDM capable (remote device management)
- Full-color 180° reversible LCD menu display
- Battery backup for menu display
- Daisy chain powerCON and daisy chain DMX
- Flicker-free operation for TV and film
- Can be used with snoot and/or diffusion filter holder (sold separately)
UPC: 837874015997 In the Box Elation Professional Rayzor Q7 LED Fixture PowerCon Power Cable 5-Pin XLR Cable Omega Bracket Safety Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Rayzor Q7 LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Rayzor Q7 Specs | Lamp | 7 x 15 W quad color RGBW LEDs | | Average Life | 100,000 hours | | Photometric Data | Max 15,550 LUX @ 8.2' (2.5 m)
Beam Angle: 7°
Field Angle: 13° | | Color | RGBW additive color mixing
16.7 Million color possibilities | | DMX Channel Modes | 3 x DMX Modes: 15 channel mode, 17 channel mode, and 29 channel mode | | DMX | USITT DMX-512, 5-pin XLR; [+]=pin 3, [-]= pin 2, [Ground]=pin 1
Starting DMX [001] | | Pan & Tilt | Pan: 540°, 630°, 540°-90° offset
Tilt: 265° | | Effects | Rainbow effect
Strobe: Variable, 1-18 flashes per sec
Dimming: 0 - 100%
4 x Zone chase effects
8 x Auto program chase effects | | Controls | 1 x Power switch
1 x Microphone
1 x 6-button control panel

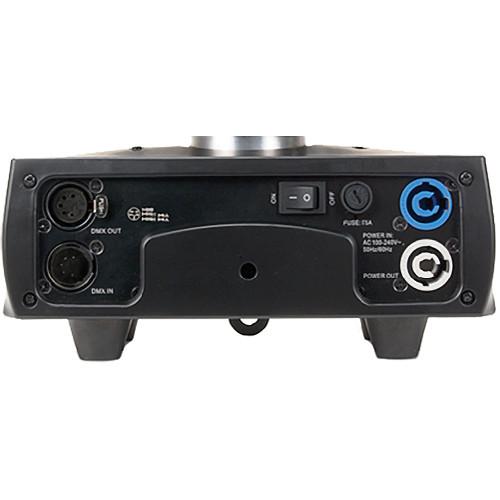

1 x DC switch | | Connections | 1 x 5-pin XLR male, DMX input
1 x 5-pin XLR female, DMX output
1 x PowerCON power input
1 x PowerCON power output | | Mounting | Omega brackets
Clamps | | IP Rating | IP 20 | | Approvals | CE | | Power Supply | 100 - 240 VAC, 50/60 Hz, auto-switching | | Fuse Protection | 250 VAC, T3.15 A | | Maximum Power Consumption | 140 W | | Operating Temperature | 14 to 113°F (-10 to 45°C) | | Dimensions (L x W x H) | 9.3 x 5.6 x 12.6" (23.5 x 14.1 x 31.9 cm) - vertical head
9.3 x 5.6 x 12.9" (23.5 x 14.1 x 32.7 cm) - horizontal head with snoot | | Weight | 10.6 lb (4.8 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 16.0 x 12.0 x 9.5" |
