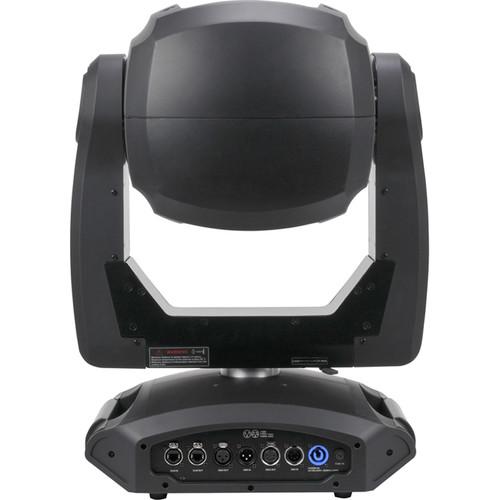

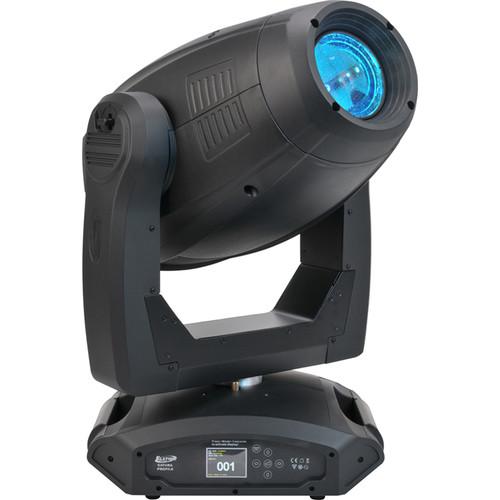

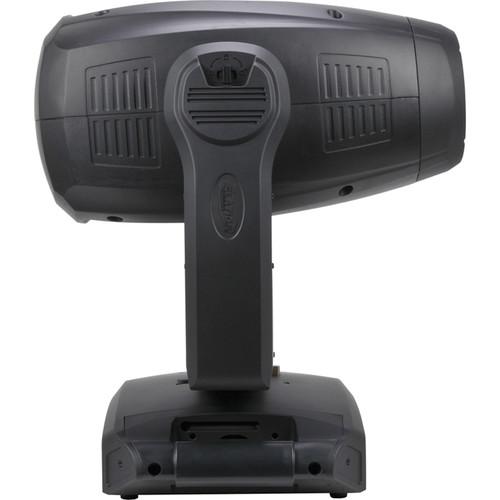

User Manual for Elation Professional Satura Profile LED CMY Moving Head Fixture with Framing Click to enlarge the picture
Contents of the user manual for the Elation Professional Satura Profile LED CMY
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
 |
User manual for the Elation Professional Satura Profile LED CMY contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description The Satura Profile from Elation Professional is a CMY color-mixing moving head luminaire that's bound to liven up any entertainment venue. The fixture is powered by a 440W Cool White LED engine, can deliver a total of 20,000 lumens, and features an 11 to 38° motorized zoom lens, 7 dichroic colors, 6 rotating/interchangeable glass gobos, and 7 static-stamped gobos. The unit also has a 4-blade framing shutter system, 3-facet rotating prism, frost filter, and motorized iris and focus. Software-based features include dimming curves, high-speed electronic shutter and strobe, hibernation mode, DMX, RDM (Remote Device Management), Kling-Net, and Art-Net support. The flicker-free Satura Profile has battery backup for display power and an internal auto-switching, multi-voltage (100-240 VAC) power supply. - Attributes
-
- 440W Cool White 20,000 Lumen LED engine
- 11 to 38° motorized zoom
- Full CMY color mixing and variable CTO
- 7 Dichroic colors
- 6 Rotating, interchangeable and 7 static-stamped gobos
- 4-Blade framing shutter system
- 3-Facet rotating prism and frost filter
- High-speed electronic shutter and strobe
- Motorized iris and focus
- Variable dimming curves
- DMX, RDM, Kling-Net, and Art-Net support
- Low heat, quiet operation, Hibernation Mode
- Flicker-free operation for broadcast TV and film
UPC: 837874019360 In the Box Elation Professional Satura Profile LED CMY Moving Head Fixture with Framing Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Satura Profile LED CMY Moving Head Fixture with Framing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional Satura Profile Specs | Light Source | 440 W 20,000 lumen Cool White LED engine | | LED Life Expectancy | Average: 50,000 hours | | Colors | Full CMY color mixing with variable CTO (color temperature orange)
7 x Dichroic Colors: red, blue, green, yellow, magenta, orange, and light blue | | Photometrics | 11° Min. Zoom (Full On): 48,160 lux / 4,474 fc @ 8.2' (2.5 m)
38° Max. Zoom (Full On): 6,100 lux / 567 fc @ 8.2' (2.5 m) | | Beam Angle | Motorized Zoom: 11 to 38° | | Effects | 4-blade framing shutter system
3-facet rotating prism and prism macros
Frost filter hybrid wash effect
Motorized zoom, iris, and focus
High-speed electronic shutter and strobe
Variable dimming curves | | Gobos | 6 x interchangeable rotating/indexing glass gobos
7 x interchangeable static-stamped metal gobos | | Movement Resolution | 8- and 16-bit adjustable | | Protocols | DMX512, RDM (Remote Device Management), Art-Net, Kling-Net | | Control Connections | 1 x XLR 3-pin DMX input
1 x XLR 3-pin DMX output
1 x XLR 5-pin DMX input
1 x XLR 5-pin DMX output
1 x RJ-45 Ethernet input (Kling-Net/Art-Net)
1 x RJ-45 Ethernet output (Kling-Net/Art-Net) | | DMX Channel Modes | 3 x Modes: 33, 35, and 54 channels | | Display/Controls | Full-color, 180°-reversible LCD menu with 6-button touch control panel | | Power Input Connector | 1 x powerCON input | | Power Requirements | 100-240 VAC, 50/60 Hz | | Power Consumption (Maximum) | 650 W | | Operating Temperature | 14 to 113°F (-10 to 45°C) | | Approvals and Ratings | CE / IP20 / RoHS | | Working Position | Flat surface / inverted (180°) | | Dimensions | 17.7 x 20.7 x 29.3" (450 x 525 x 745 mm) | | Weight | 75.0 lb (34.0 kg) | | | | Package Weight | 90.2 lb | | Box Dimensions (LxWxH) | 34.0 x 21.0 x 20.6" |
