User Manual for Elation Professional Satura Spot CMY PRO LED Luminaire Click to enlarge the picture
Contents of the user manual for the Elation Professional Satura Spot CMY PRO
- Product category: DJ & Effect Lights Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional DJ & Effect Lights
 |
User manual for the Elation Professional Satura Spot CMY PRO contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|

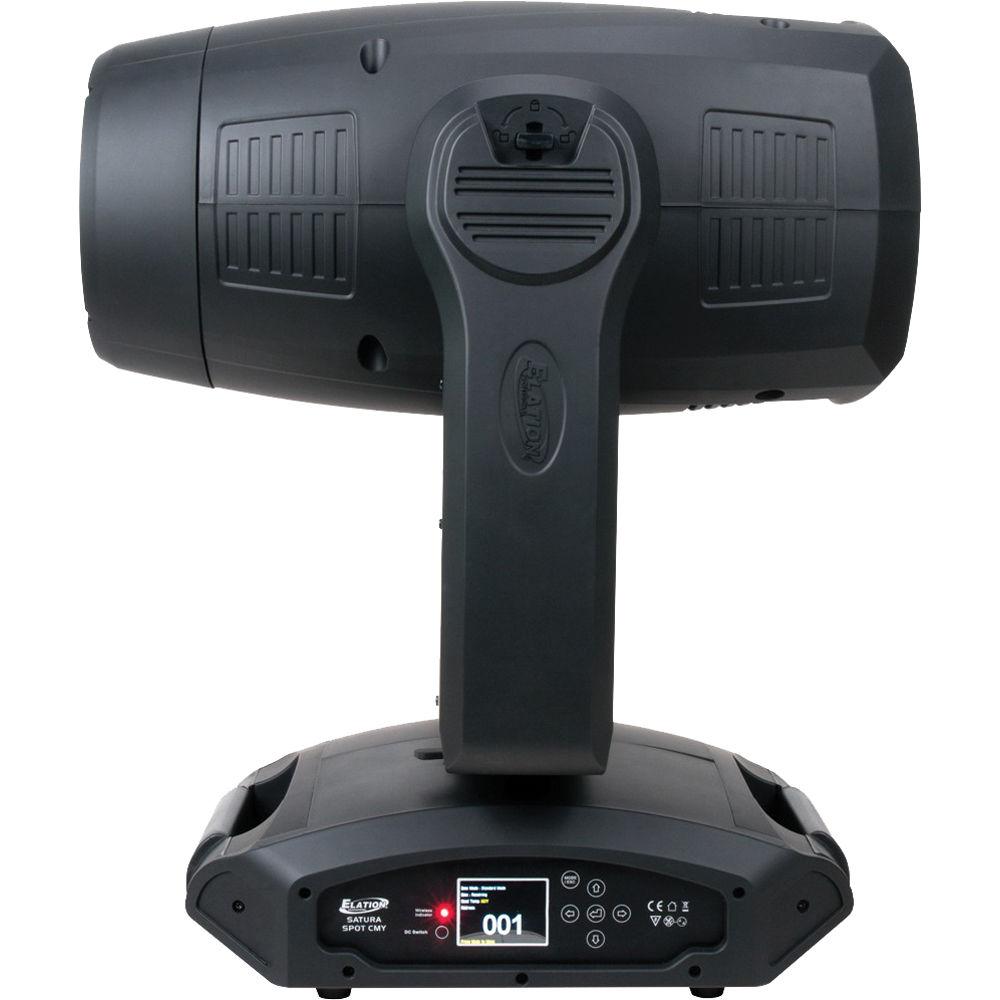

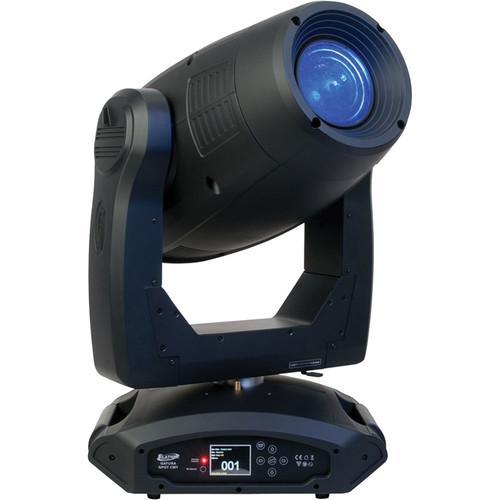

Product description The Satura Spot CMY PRO LED Luminaire from Elation Professional is a high-powered spot luminaire featuring a 320W LED engine delivering comparable color output to a 575W fixture. It features 11,700 total lumens output, 14° to 36° motorized zoom, CMY color mixing, 7 dichroic colors, 6 rotating interchangeable and 7 static gobos. There are also 5 variable dimming curve modes, zoom, focus, and iris, a 3-facet rotating prism, 3 and 5 pin DMX in/out, and powerCON connections. Control is possible through the 6-button full color 180° reversible menu display, the fixture has a 500W max power consumption, and it utilizes a multi-voltage universal auto switching power supply. - 11,700 total lumens, 8,000K
- 8/16-bit resolution adjustable movement
- RDM (Remote Device Management) support
- Effects
- Frost filter + 3-facet rotating prism
Iris: 5-100%
Strobe: 1-18 fps
Dimming: 0-100% 5 variable dimming curve modes - Color
- 7 dichroic colors + white (open)
CMY color mixing + CTO color correction - Gobos
- 2 gobo wheels
6 interchangeable/rotating/indexing gobos
7 static/indexing gobos - Photometrics
- 2548 fc (27430 lux) at 8.2' (2.5 m) at full power at 14° zoom
304 fc (3270 lux) at 24.6' (7.5 m) at full power at 14° zoom
440 fc (4735 lux) at 8.2' (2.5 m) at full power at 36° zoom
54 fc (585 lux) at 24.6' (7.5 m) at full power at 36° zoom UPC: 837874017373 In the Box Elation Professional Satura Spot CMY PRO LED Luminaire Omega Brackets 3-Pin DMX Cable powerCON Cable Safety Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Satura Spot CMY PRO LED Luminaire in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

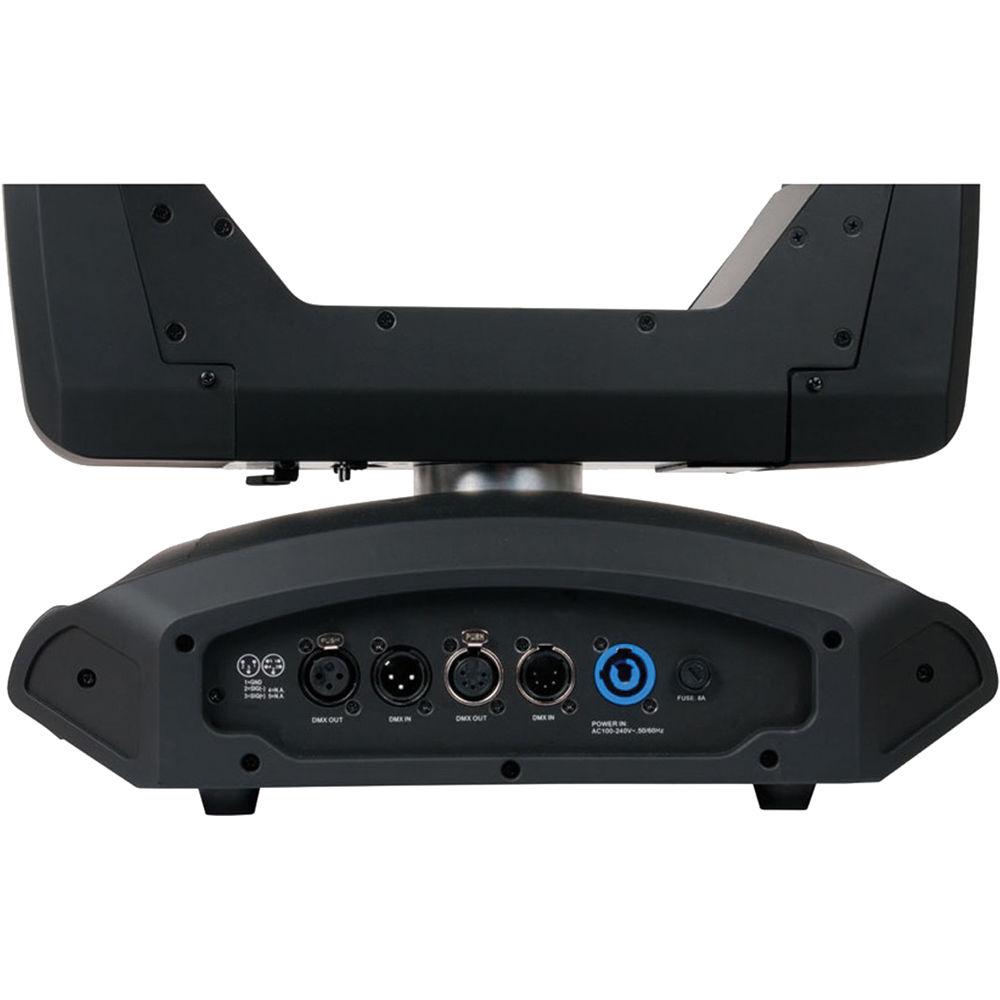

Technical parametersElation Professional Satura Spot CMY Pro Specs | LEDs | 320 W LED Enging | | LED Lifetime | 50,000 hours | | Beam Angle | 14-36° | | DMX Connectors | 3-pin XLR male
3-pin XLR female
5-pin XLR male
5-pin XLR female | | DMX Channels | 22, 24, or 33 channels | | Operating Temperature | -13 to 113°F (-25 to 45°C) | | Power Connectors | powerCON in | | Power Requirements | 100-240 VAC, 50-60 Hz | | Power Consumption | 500 W max | | Certifications | CE, RoHS, IP20 | | Working Position | Flat surface / inverted (180°) | | Dimensions | 20.0 x 16.9 x 28.4" (508 x 430 x 721 mm) | | Weight | 57.3 lb (26 kg) | | | | Package Weight | 57.3 lb | | Box Dimensions (LxWxH) | 33.5 x 22.25 x 22.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
