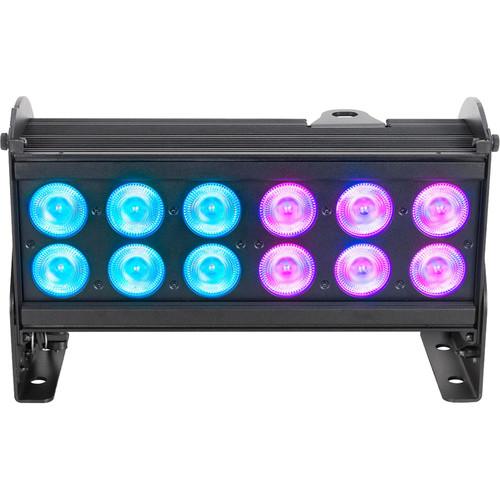

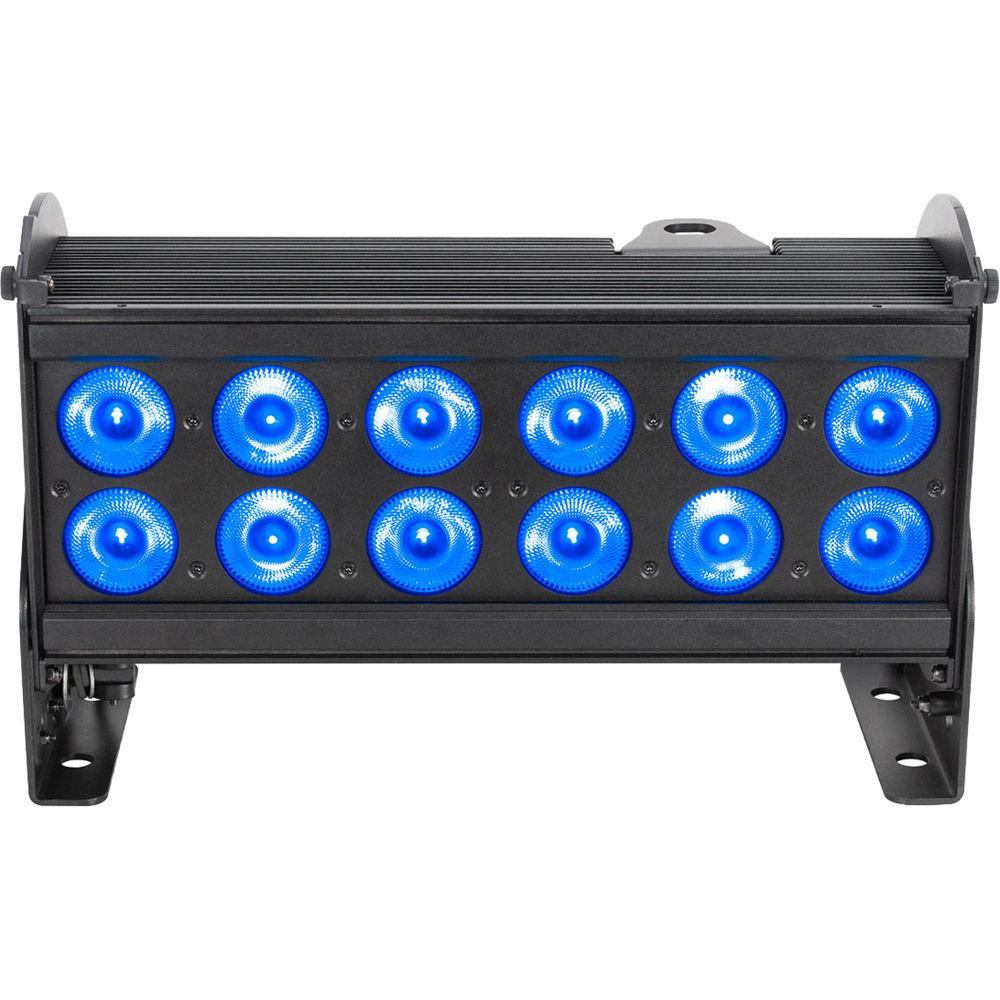

Product description The Elation Professional SEVEN Batten 14 is a professional 1.2-foot, 7-color batten wash luminaire featuring 12 individual 25W, 7-in-1 RGBAW+Lime+UV LEDs, well suited for clubs, broadcast and photo studios, TV sets, and film locations. The SEVEN Batten 14 features smooth color mixing, variable dimming curve, strobe, and color macro effects, ten pixel-mapping zones with individual dimmer channels, and an adjustable LED refresh rate and gamma brightness for flicker-free operation.

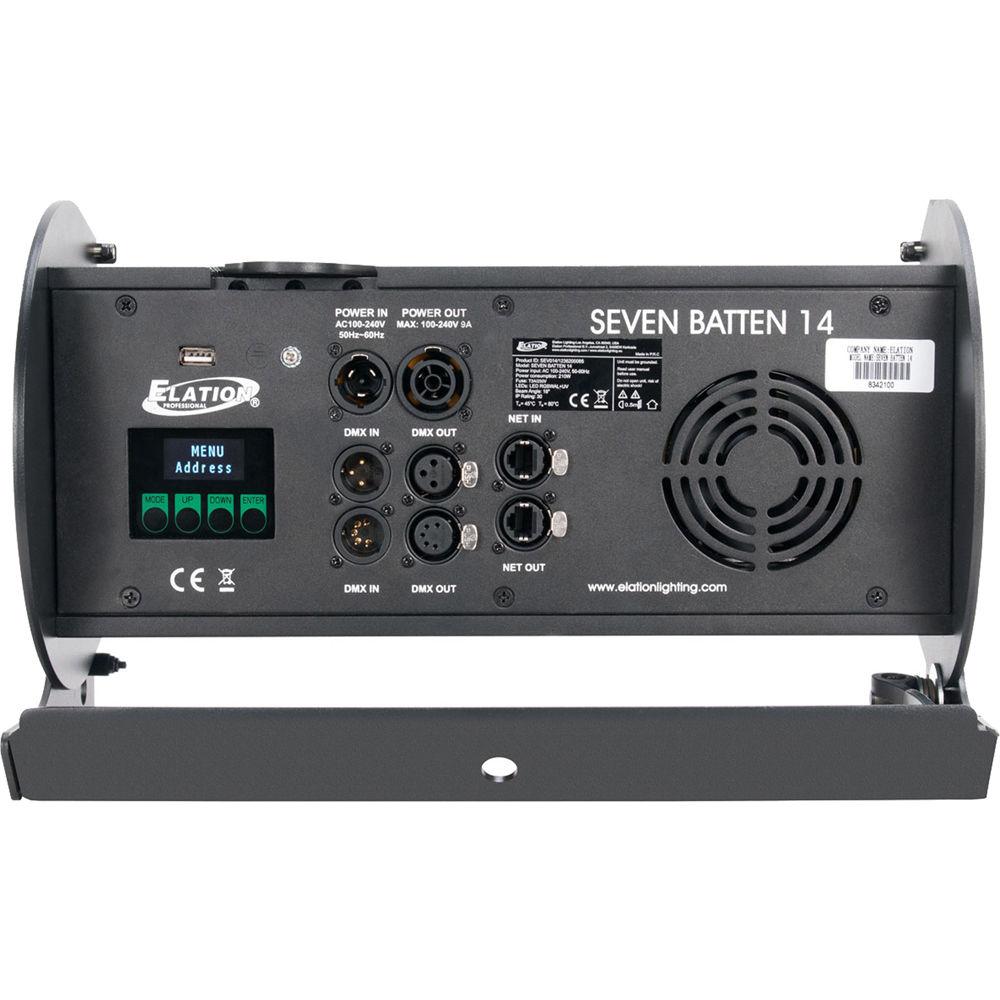

The SEVEN Batten 14 can be controlled by remote device management (RDM), Art-Net, Kling-Net, and DMX with 10 channel modes (22 total channels). The rear panel offers connectors for two DMX 5-pin DIN (in/out), two DMX 3-pin DIN (in/out), and two powerCON TRUE1 in/out connectors for multi-unit power linking. Additionally, there is a 4-button control panel and menu display. The Elation Professional SEVEN Batten 14 is constructed from a rugged die-cast aluminum exterior, and ships with 220° manual tilt-adjustable mounting brackets and a power cord. -
- 1.2-foot, 7-color batten wash luminaire

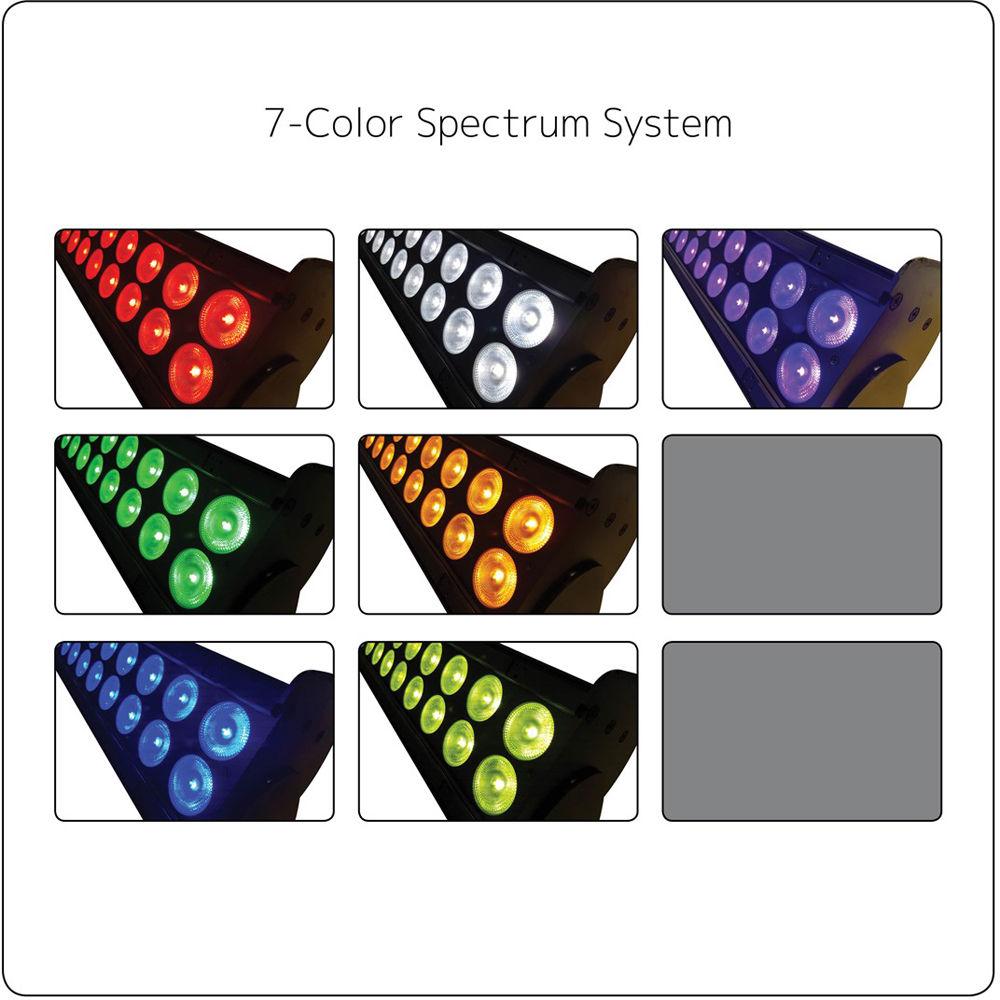

- 12 individual 25W, 7-in-1 RGBAW+lime+UV (395nm) LEDs
- Hue, saturation, and intensity control
- Special RGB SEVEN 3-channel mode (RGB+dynamic white, amber, lime, UV)
- 6-pixel mapping zones with pixel flip mode
- Smooth color mixing; internal programs with speed and fade control
- 64 unique 7-color macros
- Selectable 16-bit dimming curve modes
- Adjustable LED refresh rate+gamma brightness
- Flicker-free operation for TV and Film
- Art-Net, Kling-Net, and RDM protocol support

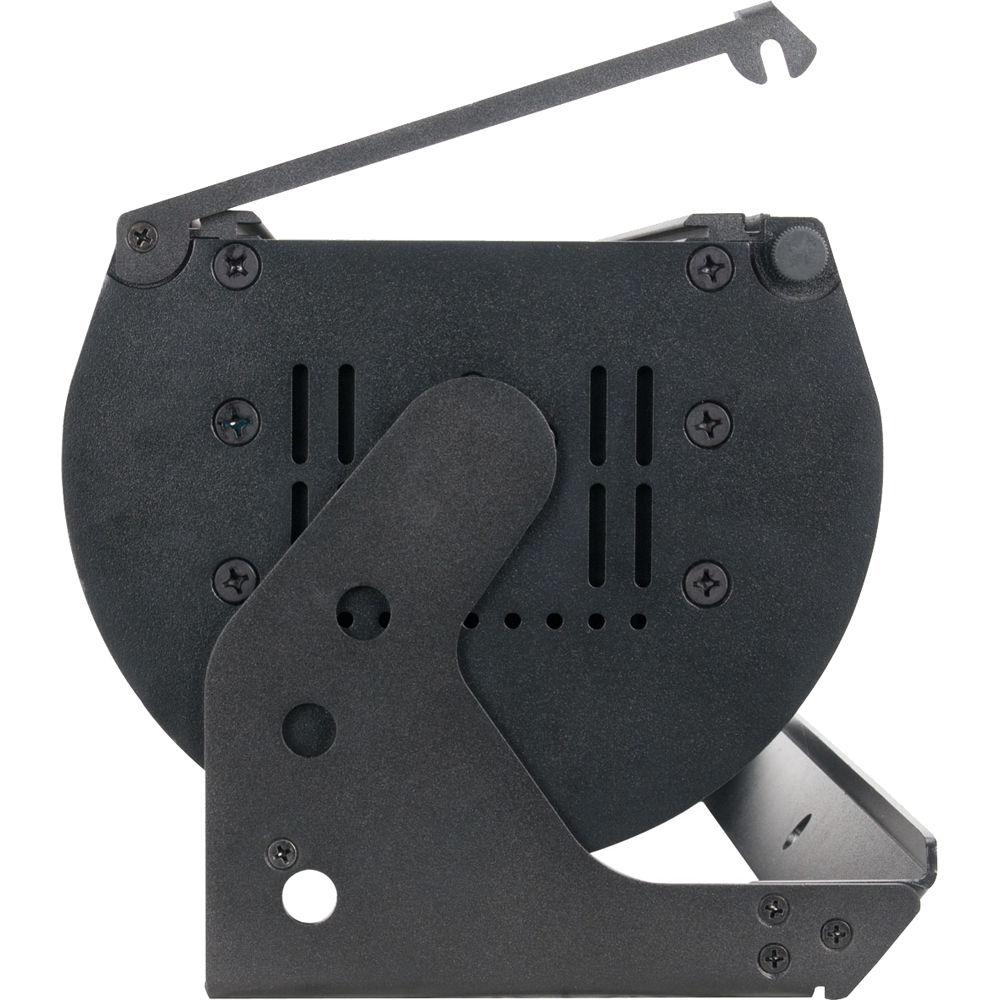

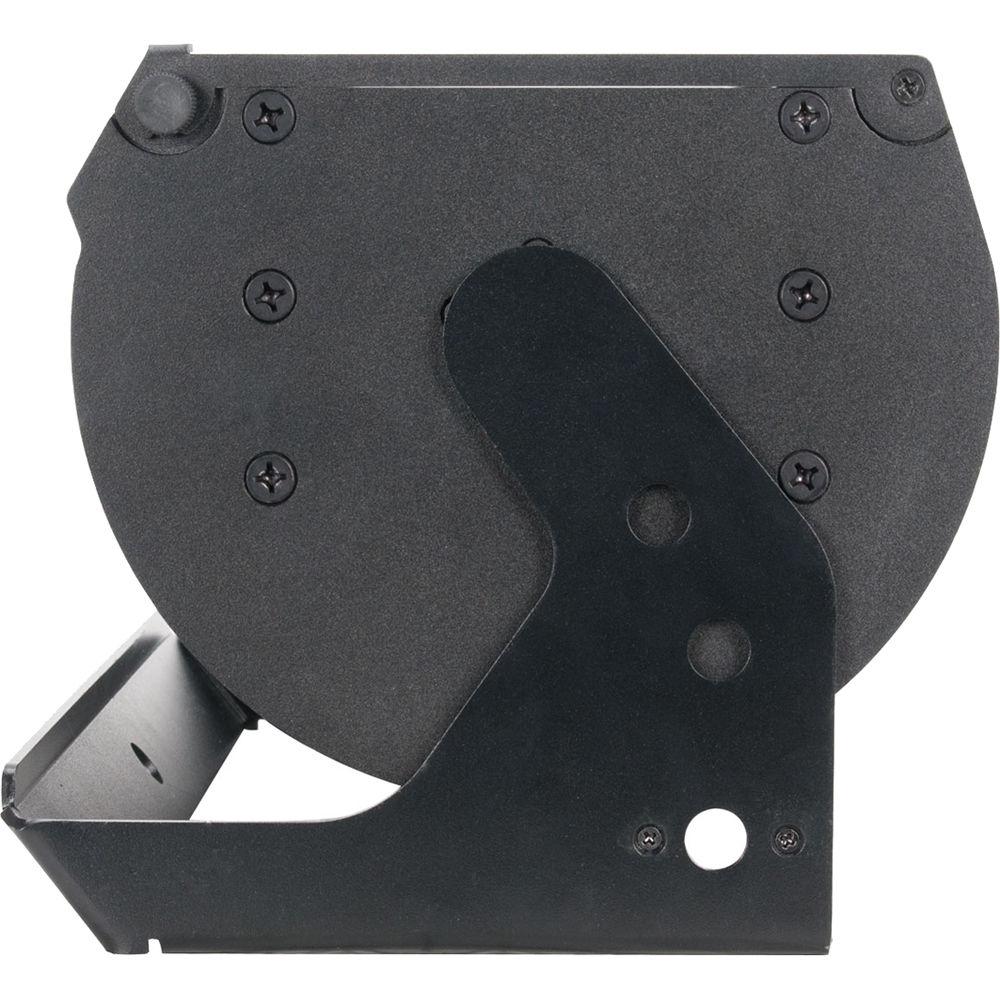

- Dual 220° manual tilt adjustable mounting brackets
- Rugged powder coated die-cast aluminum exterior

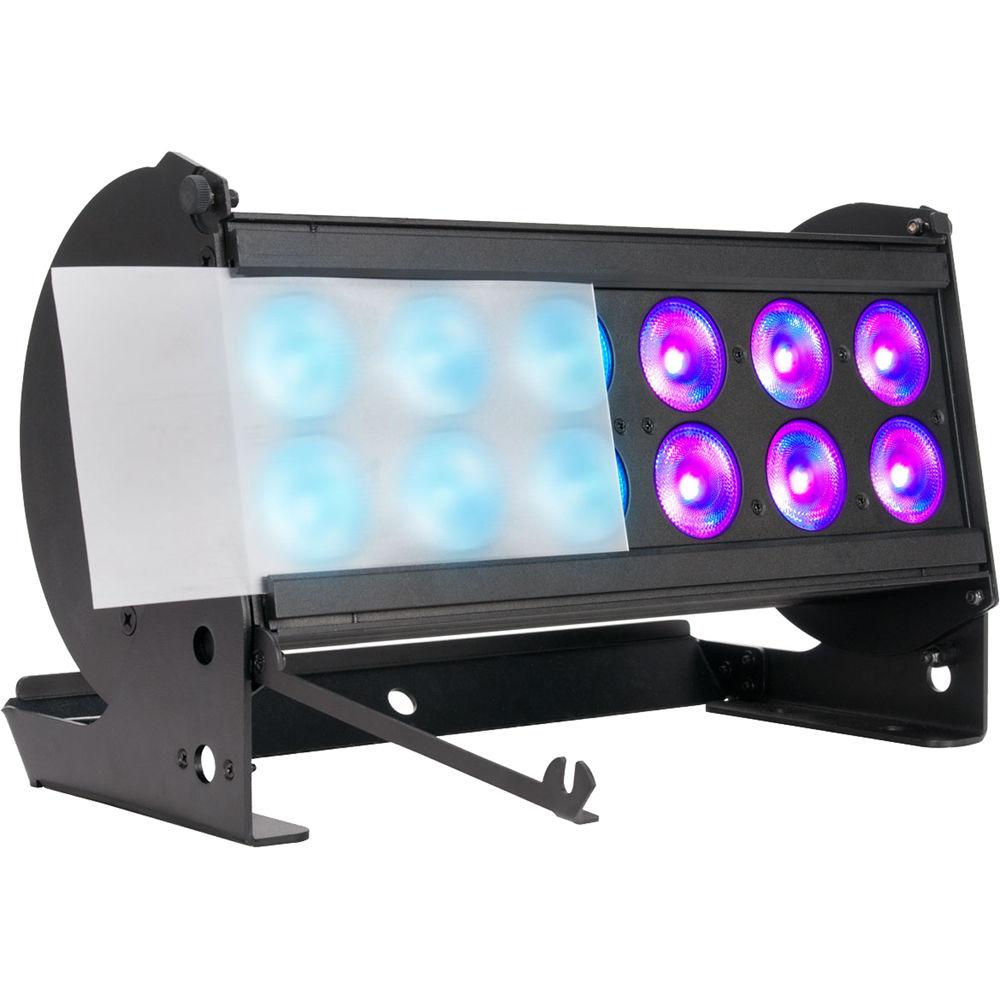

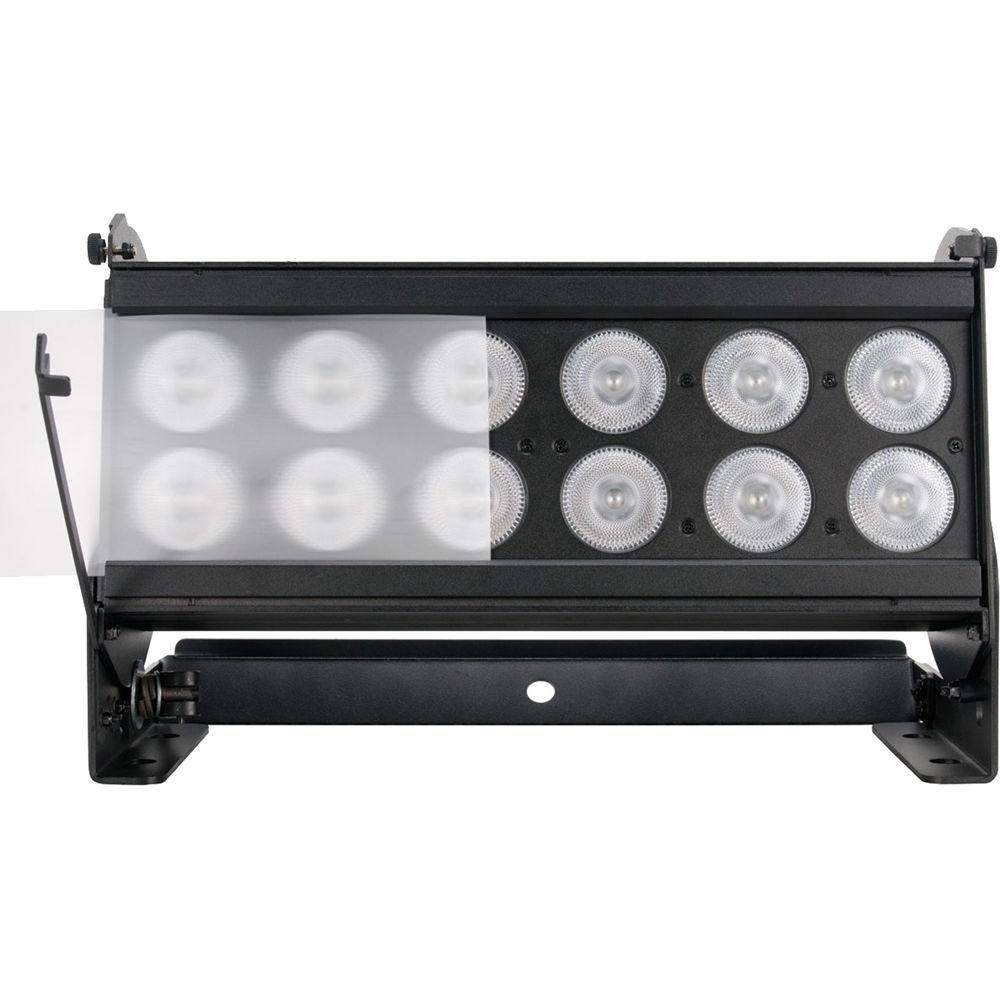

- Integrated gel/frost filter slot
UPC: 837874008418 In the Box Elation Professional SEVEN Batten 14 7-Color Batten Wash (1.2', RGBAW+Lime+UV) Set of Mounting Brackets powerCON TRUE1 Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional SEVEN Batten 14 7-Color Batten Wash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional SEVEN Batten 14 Specs | Light Source | 12 x 25 W 7-in-1 RGBAW+Lime+UV LEDs
50,000-Hour Average LED Life | | Effects | Individual Hue, Saturation, and Intensity Control
Dynamic Amber (Automatically Added to RGB LEDs in Dynamic (+) DMX Modes)
10 x Pixel Mapping Zones
12 x Program Macros with Variable Speed Control
64 x Color Macros
Electronic Strobe and Variable Effects
Selectable Dimming Curve Effects
Adjustable LED Refresh Rand Gamma Brightness | | Color | RGBAW+Lime+UV (395 nm) | | Control and Connectors | 10 x DMX Channel Modes: 22 Total Channels
DMX and Manual Control
4-Button OLED Menu Control Display
Adjustable Refresh Rate: 900 to 28,800 Hz
Adjustable Gamma Brightness: 2.0, 2.2, 2.4, 2.8
Art-Net, Kling-Net, and RDM (Remote Device Management) Protocol Support
IP-Rated 3-/5-pin DMX In/Out
IP-Rated RJ45 etherCON In/Out
powerCON TRUE1 Power In/Out | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Maximum: 201 W | | Operating Temperature | 5 to 113°F / -15 to 45°C | | Approvals | CE / cETLus | | Ratings | IP20 | | Dimensions (L x W x H) | 14.0 x 4.5 x 9.0" / 35.6 x 11.4 x 22.9 cm | | Weight | 17.0 lb / 7.7 kg |
