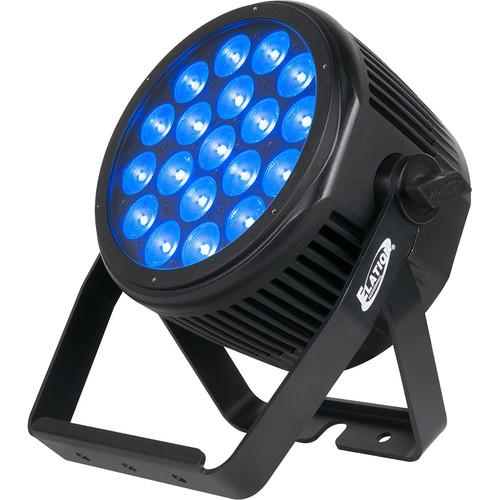

Product description The Elation Professional SEVEN PAR 19IP is an IP65-rated professional seven-color par wash luminaire featuring 19 individual 25W 7-in-1 RGBWA+Lime+UV LEDs, well suited for clubs, broadcast and photo studios, TV sets, and film locations. The SEVEN PAR 19IP features smooth color mixing, variable dimming curve, strobe, color macro effects, and an adjustable LED refresh rate and gamma brightness for flicker free operation for TV and film.

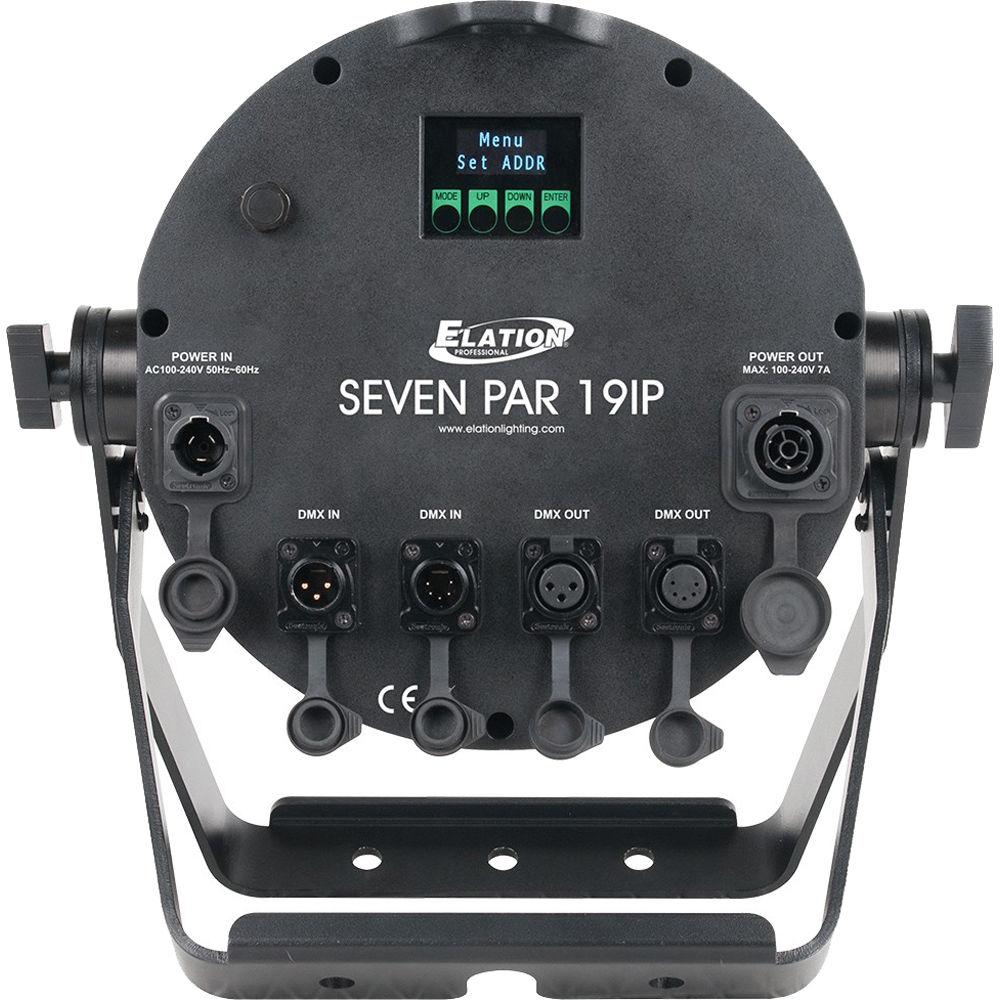

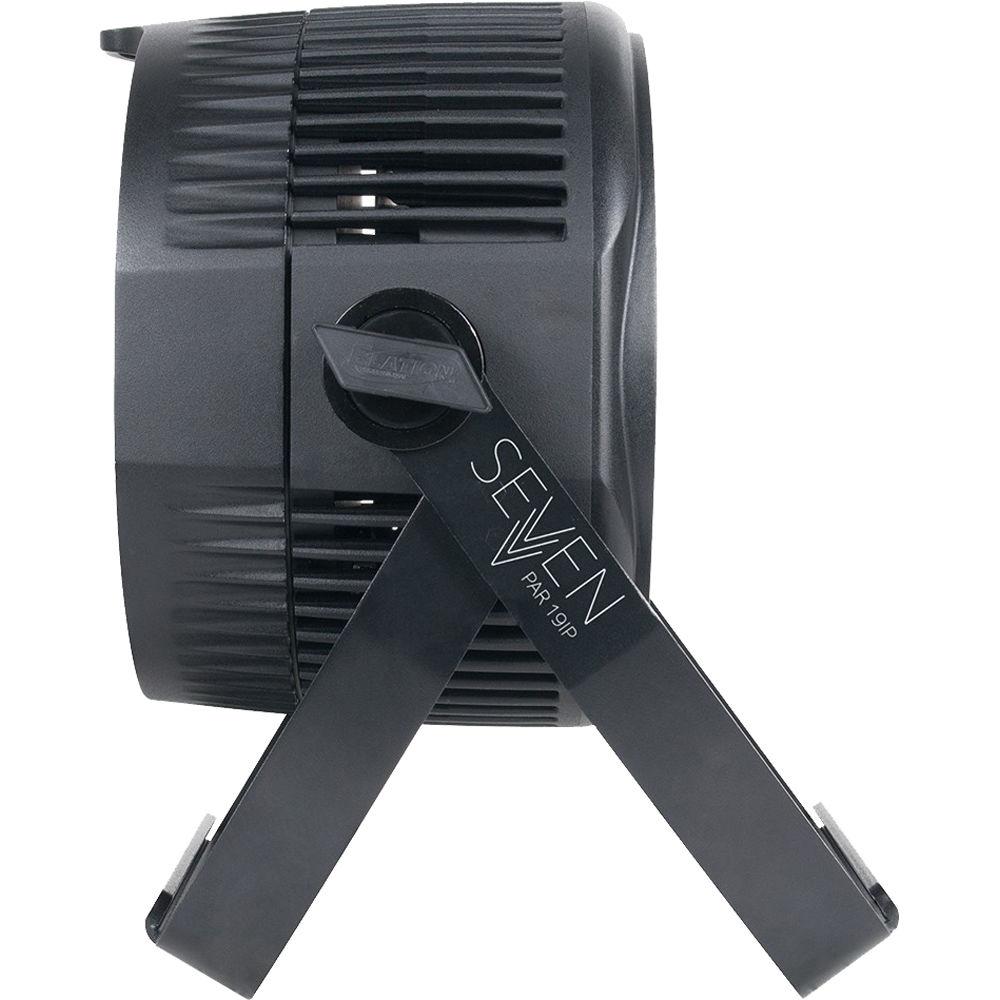

The SEVEN PAR 19IP can be controlled by remote device management (RDM) and DMX with eight channel modes (15 total channels). The rear panel offers connectors for two IP-rated DMX 5-pin DIN (in/out), two IP-rated 3-pin DMX DIN (in/out), and two powerCON TRUE1 in/out connectors for multi-unit power linking. Additionally, there is a four-button control panel and menu display. The Elation Professional SEVEN PAR 19IP is constructed from a rugged die-cast aluminum exterior with dual yokes, which can be hung or used as floor stands. The fixture ships with a power cord. -
- IP65 outdoor rated
- Rugged die-cast aluminum exterior

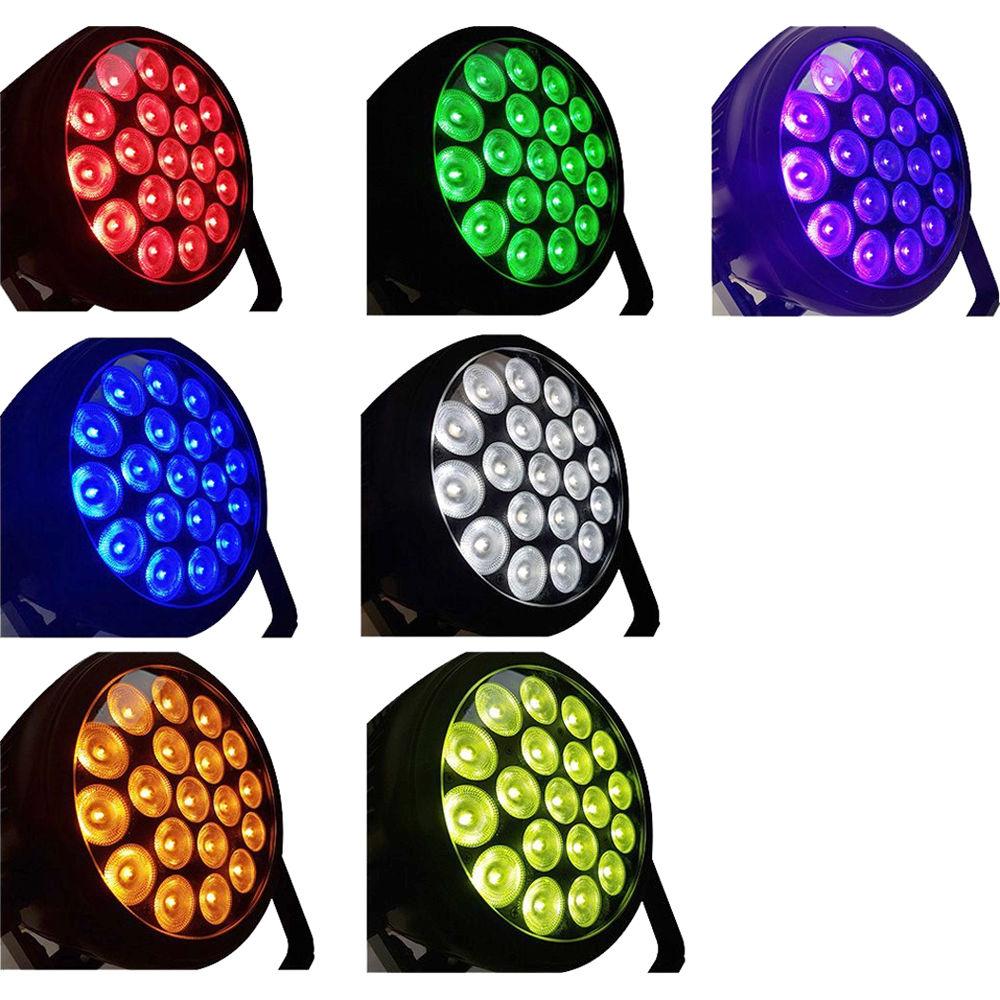

- Seven colors RGBWA + Lime + UV
- RGB + dynamic amber channel modes
- Smooth color mixing
- 12 x internal programs with speed and fade control
- 64 x color macros
- Selectable dimming curve modes
- Adjustable LED refresh rate + gamma brightness
- Flicker-free operation for TV and film
- Dual yoke / floor stand
UPC: 837874006902 In the Box Elation Professional SEVEN PAR 19IP - Seven Color Par Wash (IP65, RGBAW+Lime+UV) powerCON TRUE1 Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional SEVEN PAR 19IP - Seven Color Par Wash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional SEVEN PAR 19IP Specs | Light Source | 19 x 25 W 7-in-1 RGBAW + Lime + UV LEDs
50,000 hour average LED life | | Effects | Dynamic amber (automatically added to RGB LEDs in dynamic (+) DMX modes)
12 x program macros with variable speed and fade control
64 x color macros
Electronic strobe and variable effects
Selectable dimming curve effects | | Color | RGBAW + Lime + UV (395 nm) | | Control and Connectors | 8 x DMX Channel Modes: 15 total channels
DMX and manual control
4 x button OLED menu control display
Adjustable Refresh Rate: 900 to 28,800 Hz
Adjustable Gamma Brightness: 2.0, 2.2, 2.4, 2.8
RDM (remote device management) protocol support
IP rated 5-pin DMX in/out
IP rated 3-pin DMX in/out
powerCON TRUE1 power in/out | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Maximum 500 W | | Operating Temperature | 5 to 113°F / -15 to 45°C | | Approvals | CE | | Ratings | IP65 | | Dimensions (L x W x H) | 16.4 x 11.2 x 25.6" / 416.6 x 284.5 x 651.3 mm | | Weight | 56.0 lb / 25.4 kg |
