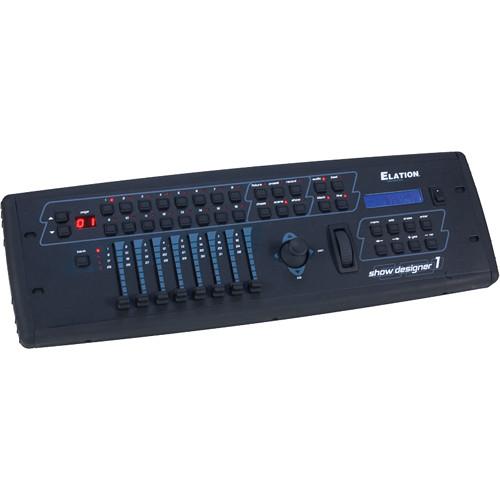

User Manual for Elation Professional Show Designer 1 512-Channel DMX Lighting Console Click to enlarge the picture
Contents of the user manual for the Elation Professional Show Designer 1 512-Channel
- Product category: Lighting Consoles & Controllers Elation Professional
- Brand: Elation Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Elation Professional Lighting Consoles & Controllers
|
User manual for the Elation Professional Show Designer 1 512-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Elation Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Elation Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Elation Professional product will considerably shorten its lifespan!
|
Product description What You Need to Know When Working with DMX Read More The 3RU Show Designer 1 from Elation Professional is a 512-channel DMX console. This console can control up to sixteen large lighting fixtures of up to 32 channels each for a total of 512 channels, or 16 groups of smaller fixtures.The setup menu includes support of Elation and American DJ lighting fixtures as well as other popular brands. The channels are controlled by eight faders, a joystick controls pan and tilt, and a rotary wheel is used for data entry. A trackball or PC can be connected via the RS-232 port.
The operating system uses flash memory so that the software can be updated from a computer. The Show Designer 1 adds to the features of the original Show Designer while remaining backward compatible. The removable rubber rails enable you to use the console table-top style, or to mount it in a rack mount frame. The unit provides external automation control via MIDI input and output connectors, and controls the fixtures through a 3-pin XLR connector. - Controls up to 512 channels (USITT DMX-512 compatible)
- Controls up to 16 large fixtures (up to 32 channels each) or 16 groups of smaller fixtures
- Large fixture profile library
- Joystick for pan and tilt control
- Eight faders allow direct control of channel settings
- Large rotary wheel for data entry
- Removable rubber rails enable tabletop-style use
- Fixtures and memories are configured from an array of 16 switches
- Backlit LCD display for easy programming
- Software updates can be downloaded from the Elation Professional website
UPC: 640282048866 In the Box Elation Professional Show Designer 1 512-Channel DMX Lighting Console (3RU) 120 VAC Power Supply Removable Rubber Rails Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Show Designer 1 512-Channel DMX Lighting Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional SHOW DESIGNER-1 Specs | Connectors | Rear Panel:
1x 3 pin XLR female, DMX output
1x MIDI in
1x MIDI out
1x Audio input
1x RS-232
1x DC barrel female, power input | | Controllers | Rear Panel:
1x Polarity switch
Front Panel:
16x Switches, multi-purpose
8x Faders, channel faders
1x Joystick
1x Rotary wheel | | LCD Display | 1x 32-character, backlit | | Memory Capacity | 1024 Scenes
512 Presets
256 Chases
256 Shows | | Power Input | 9 VDC, 500 mA | | Rackmount | 3 RU | | Dimensions (W x H x D) | 19 x 5.2 x 4.8" (48.3 x 13.3 x 12.1 cm) | | Weight | 7.0 lb (3.2 kg) | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 23.701 x 8.583 x 7.323" |
