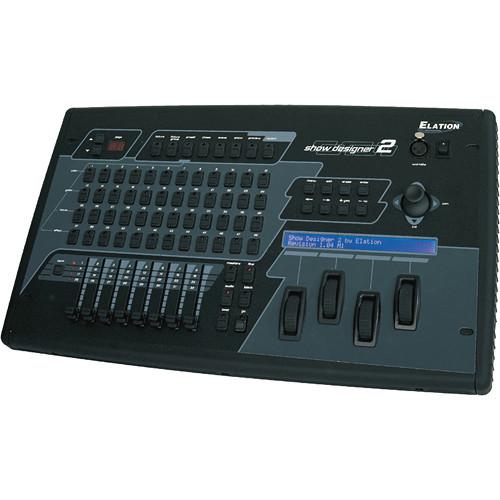

Product description What You Need to Know When Working with DMX Read More The 6RU Show Designer 2CF by Elation Professional is a DMX lighting console that can control 48 lighting fixtures of up to 32 channels each or as many fixtures as can fit in two DMX universes (1,024 channels). Front-panel features include assorted switches for programming, eight 60mm faders for direct control of lighting fixture channels and scene masters, four wheels for channel control and data entry, a joystick for pan and tilt control, and a backlit display for programming. There is also a 3-pin XLR connector for a work light. The Show Designer 2CF is designed to support all popular brands of DMX512 lighting fixtures and supports both XLR 3-pin and 5-pin DMX output. The unit has rackmount holes underneath the rubber case and it ships with a universal power supply. - Two DMX universes (maximum of 1,024 channels)
- Control 48 moving light fixtures of up to 32 channels each
- 1,152 programmable chases
- 4,752 programmable scenes
- 1,152 programmable presets
- Eight faders control either 32 DMX fixture channels or 32 scene masters
- Scene preview with "Go" feature
- Factory-ready color, gobo, focus, & effects presets
- 48 multi-function buttons
- 80-character backlit LCD display
- Joystick for pan/tilt operation
UPC: 640282048781 In the Box Elation Professional Show Designer 2CF - 2-Universe DMX Console with CF Card Reader (6RU) Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional Show Designer 2CF - 2-Universe DMX Console with CF Card Reader in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional SHOWDESIGNER2CF Specs | Memory | Internal: 1 MB
External: CF drive (recommended 64 MB cards only) | | Connectors | 2 x XLR 3-pin DMX outputs
2 x XLR 5-pin DMX outputs
1 x DIN 5-pin MIDI input
1 x DIN 5-pin MIDI output
1 x RS-232 port
1 x RCA audio input
1 x XLR work light output
1 x PS-2 keyboard input | | Controls | 8 x Faders
48 x Multi-function buttons
1 x Joystick
4 x Rotary wheels
1 x On/off switch
2 x Polarity switches (one per output) | | Display | 80-character backlit LCD | | Power Supply | Input: 100 to 240 VAC, 50 to 60 Hz
Output: 9 to 12 VDC, 1000-2000 mA
Internal battery backup | | Rack Mount Dimensions | 6 RU | | Dimensions (L x H x D) | 19.0 x 10.5 x 4.0" / 48.3 x 26.7 x 10.2 cm | | Weight | 10 lb / 4.5 kg | | | | Package Weight | 13.25 lb | | Box Dimensions (LxWxH) | 25.6 x 16.3 x 6.4" |
