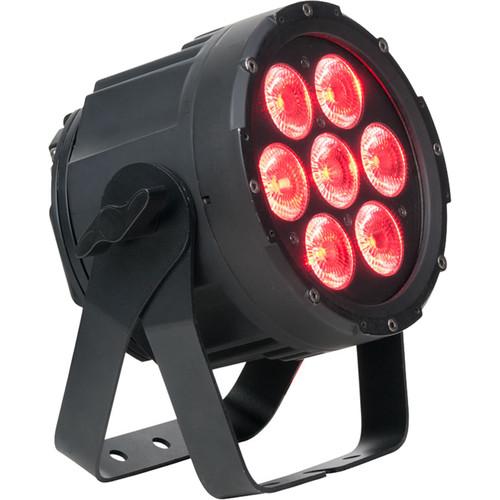

Product description The black Elation Professional SIX001 Sixpar 100IP is an RGBAW+UV light fixture for outdoor use featuring seven individual 12W six-in-one LEDs. It offers electronic strobe, five variable dimming curve modes, and daisy-chaining capabilities.

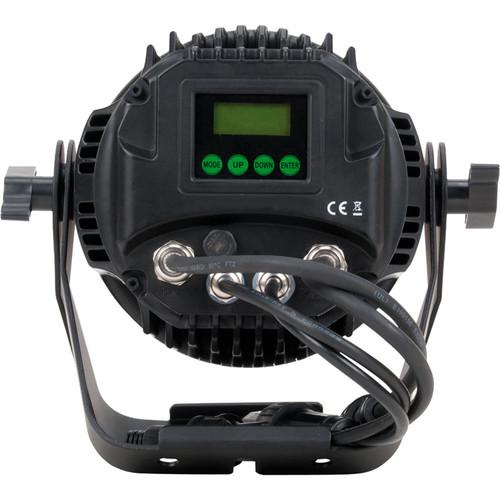

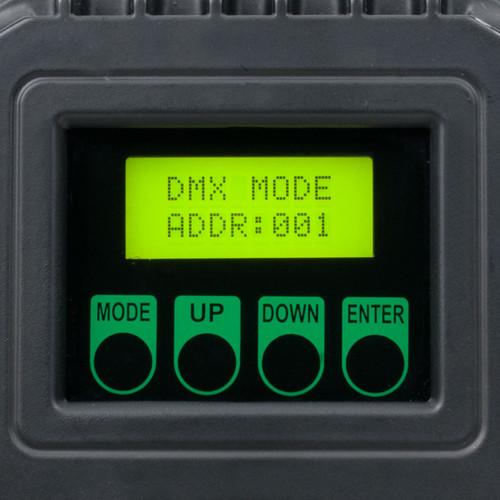

The Sixpar 100IP incorporates a four-button touch-control panel and an LCD menu display. It supports three-pin DMX connectivity (via the included DMX IP adapter cables) and RDM control. Flicker-free operation makes the unit suitable for broadcast TV and film. Four DMX channel modes (6, 7, 8, & 12 channels) enable you to control varying levels of features.
The fixture features an IP power input and an internal auto-switching power supply. It is compatible with 110 - 250 VAC outlets and has a maximum power consumption of 89W. The Sixpar 100IP can be mounted on a floor stand or hung from a rig using the integrated dual yoke bracket (clamps sold separately). - Five variable dimming curve modes
- RDM (Remote Device Management)
- Flicker-free operation for TV and film
- Four-button touch control panel
- Multiple-unit power linking

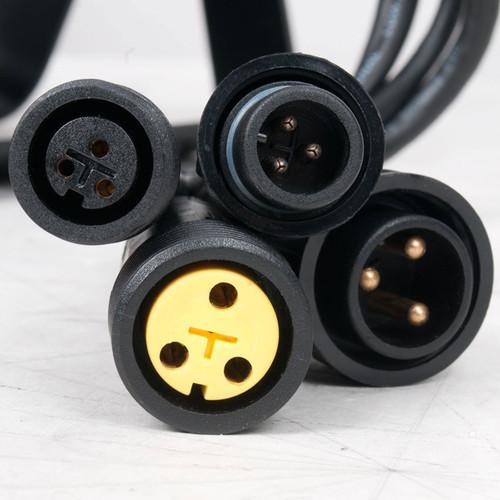

UPC: 837874017243 In the Box Elation Professional SIX001 Sixpar 100IP LED Fixture (7 LEDs, Outdoors, Black) Male Edison to Female IP Power Cable (6.6') Male 3-pin XLR to Female IP DMX Input Cable (3.3') Female 3-pin XLR to Male IP DMX Output Cable (3.3') Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Elation Professional SIX001 Sixpar 100IP LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElation Professional SIXPAR 100IP Specs | Lamp | 7 x 12 W 6-in-1 LEDs | | Color | RGBAW + UV | | Average Lamp Life | 100,000 h | | Beam Angle | 15° | | Field Angle | 25° | | Wavelength | UV: 395 nm | | Photometric Data | 571 lux (54 fc) @ 16.5' (5 m) 15° full-on | | DMX Connectors | 1 x IP, DMX in
1 x IP, DMX out | | DMX Channels | 6, 7, 8, 12-channel modes | | Effects | Electronic strobe
Color and chase macros
Electronic dimming, 0% to 100%
Five variable dimming curve modes | | IP Rating | IP 65 | | Power Connection Type | 1 x IP, power in
1 x IP, power out | | Enclosure Material | Rugged die-cast aluminum | | Rigging | Integrated dual yoke / floor stand | | Working Position | Any (360°) | | Operating Temperature | 5 to 113°F (-15 to 45°C) | | Power Linking | Up to 12 fixtures @ 110 VAC
Up to 25 fixtures @ 240 VAC | | Power Supply | 110 - 250 VAC, 50 / 60 Hz | | Power Consumption | 89 W | | Approvals | CE
cETLus | | Dimensions | 10.1 x 6.2 x 9.6" (257 x 158 x 243 mm) | | Weight | 9.5 lb (4.3 kg) | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 10.9 x 10.8 x 10.2" |
